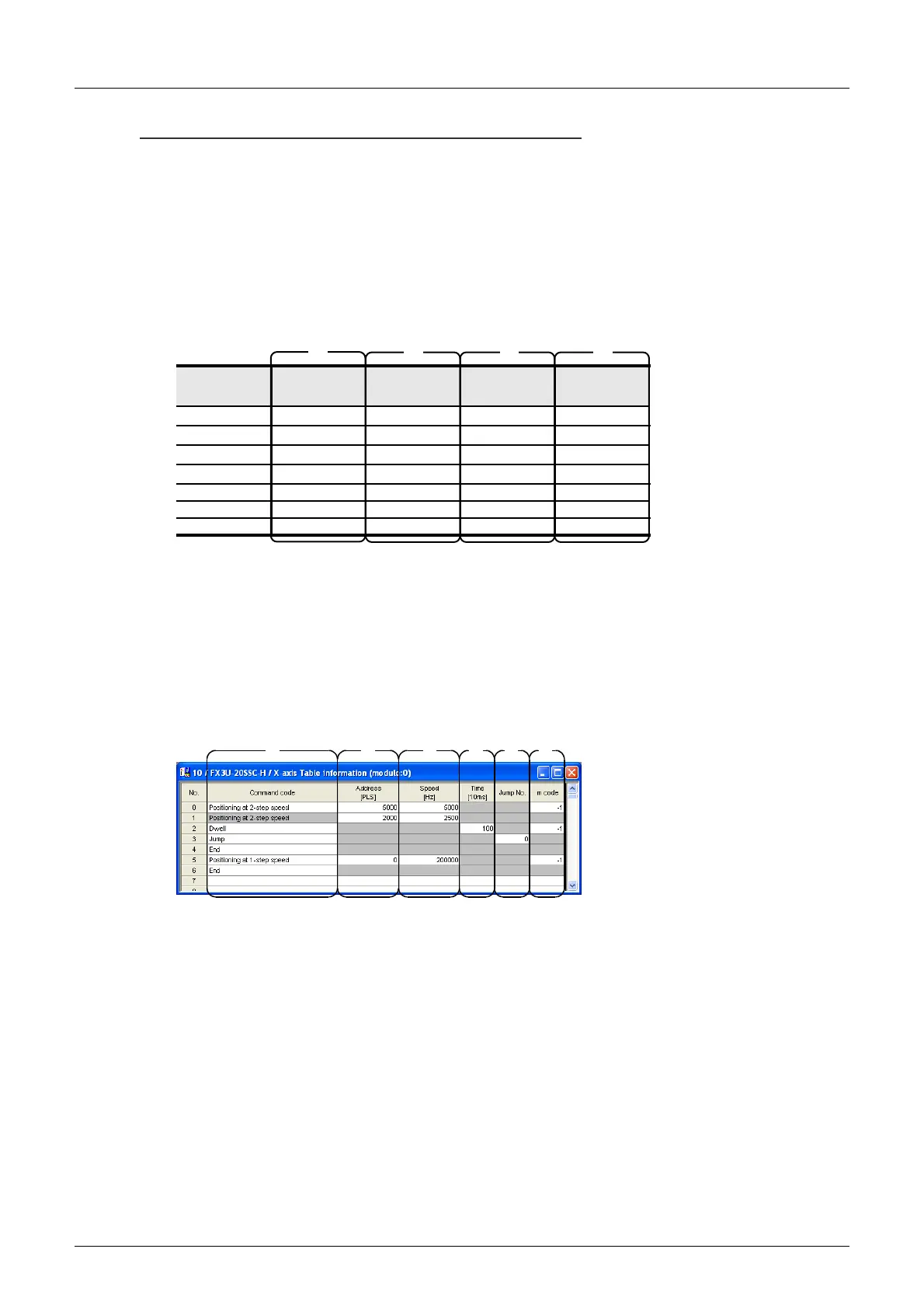

10 Table Operation
10.2 How to Set Table Information
196
FX3U-20SSC-H Positioning Block User's Manual
Note
Note that the procedures to set the table information from FX Configurator-FP and a sequence program are
different.
• The position of the operation information is different.
a) Position information d) m code information
b) Speed information e) Circle information
c) Operation information
1) X-axis, Y-axis table information
- Buffer memory
*1, *2. The setting method for the following information is different.
• Dwell time
Buffer memory : Set in position information.
FX Configurator-FP: Set in Time.
• Jump point table No.
Buffer memory : Set in position information.
FX Configurator-FP: Set in Jump No.
- FX Configurator-FP
*3. In 2-speed positioning operation and interrupt 2-speed constant
quantity feed operation, two setting rows are required.
Table No.
Position
information
Speed
information
m code
information
Operation
information
0 5000 5000 -17
1 2000 2500 -17
2 100 - -195
30- -196
*1
4
5
6
*2
0
-
-
200000
-
-
0
1
0-
-1
-
*3
*3
a) b) c) d)
c)
a) b) d)*1 *2
