USB Audio Interface Module
USB Audio Interface Module
The USB Audio Interface Module (USB AIM) is an external device that you connect to the MCC 7100
IP Dispatch Console. It functions as an interface between analog devices and the console position and
as a general-purpose input/output module.
The USB AIM supports audio routing between the dispatch operator and peripherals. The dispatch
operator uses Motorola-standard peripherals that connect to the USB AIM device. The USB AIM
connects to the MCC 7100 IP Dispatch Console with a USB cable.
The Instant Recall Recorder (IRR) software installed at the console position computer supports short-
term audio logging so there is no requirement to support an external IRR port on the USB AIM device.
The dispatch operator can replay the recorded audio directly from the hard drive of the console position
computer.

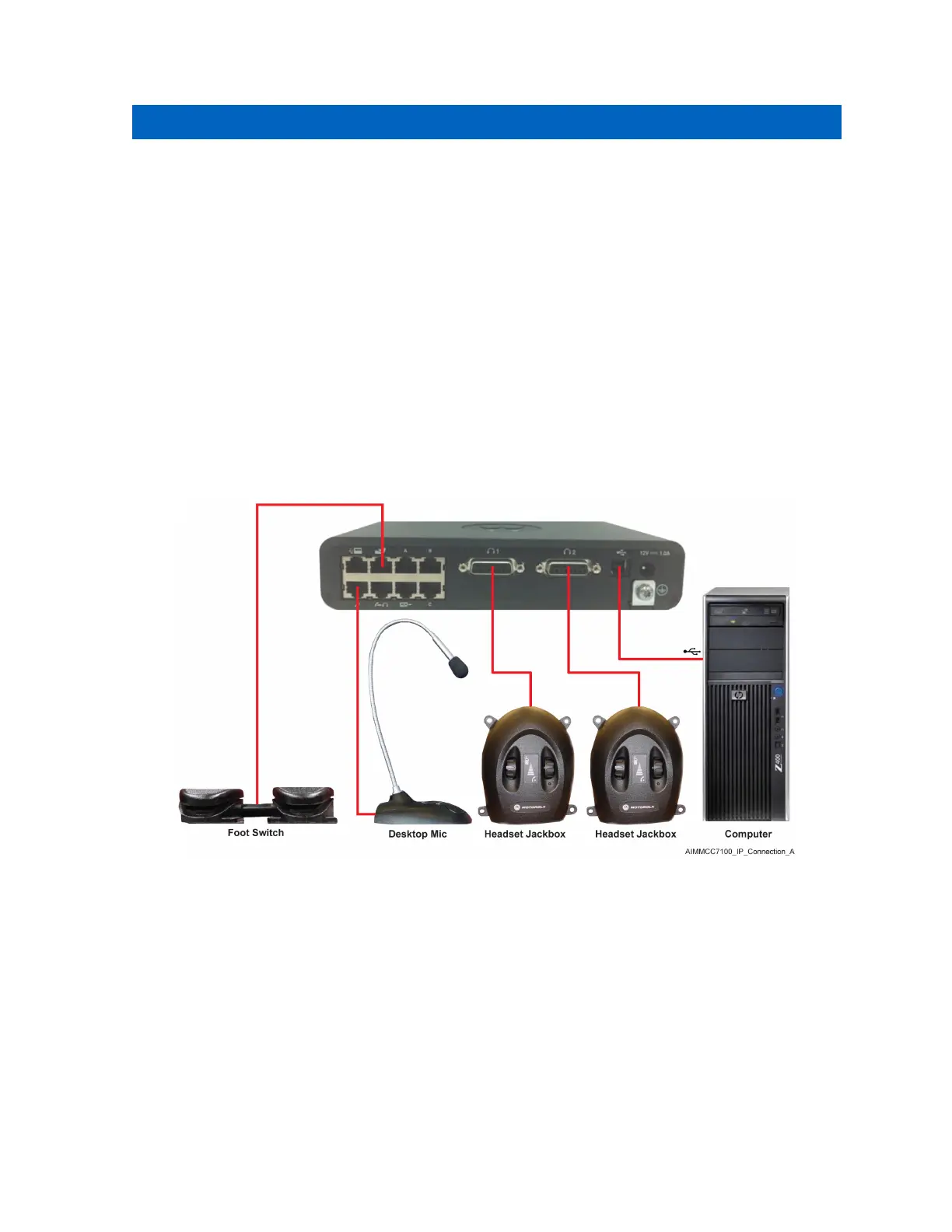

Figure 4: USB Audio Interface Module – Audio Routing
USB Audio Interface Module Connections
The USB Audio Interface Module (USB AIM) supports all the Motorola-standard peripherals except for
the desktop speakers.Instead of the Motorola-standard speakers, use off-the-shelf USB speakers
connected directly to the console operator position computer. In addition to the ports for standard
peripherals and external devices, the USB AIM supports four generic local auxiliary outputs. These
MN000672A01-E
USB Audio Interface Module
Send Feedback 101
