System Integration Module (SIM)
Introduction
MC68HC908AB32 — Rev. 1.0 Technical Data
MOTOROLA System Integration Module (SIM) 111

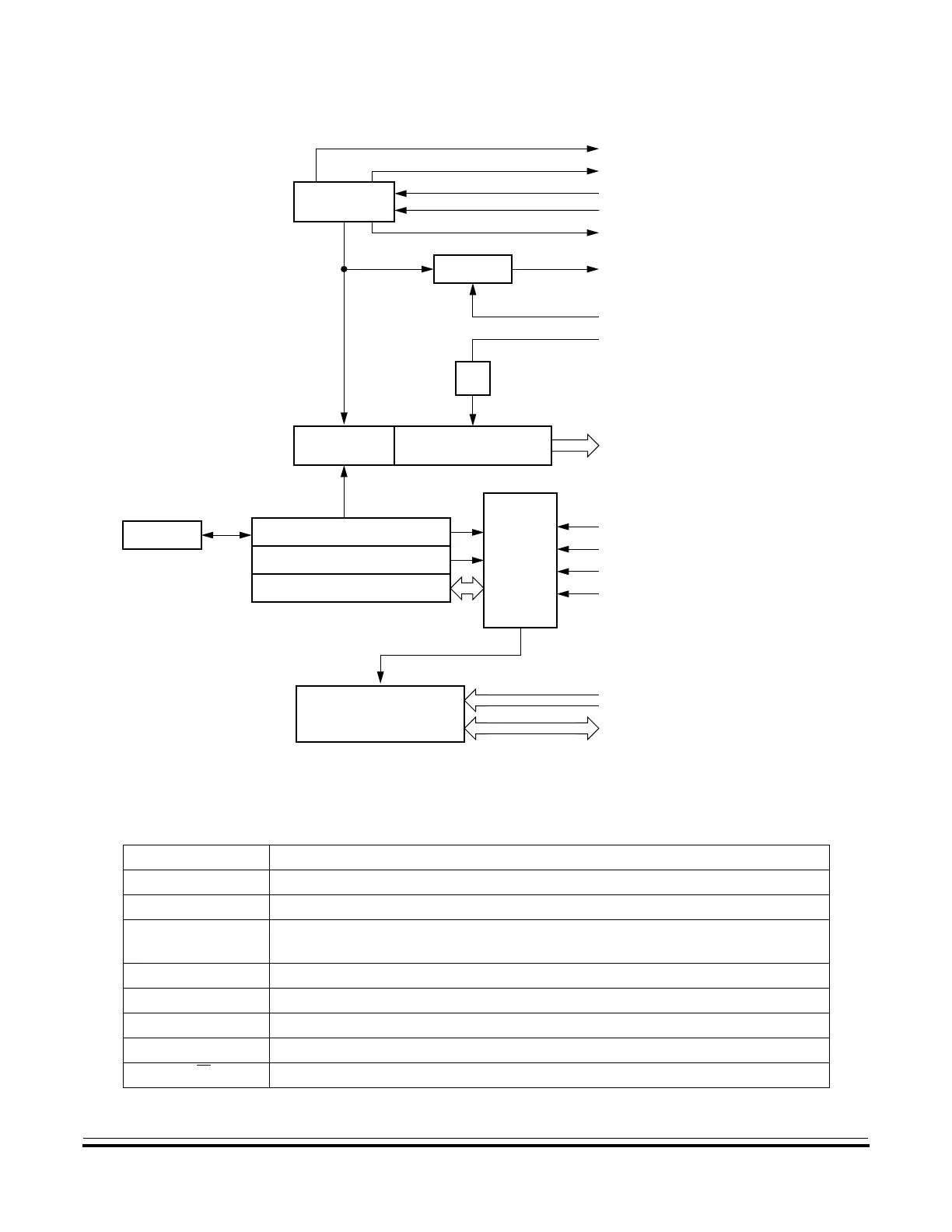

Figure 8-1. SIM Block Diagram
Table 8-1. Signal naming conventions
Signal Name Description
CGMXCLK Buffered version of OSC1 from clock generator module (CGM)
CGMVCLK PLL output
CGMOUT
PLL-based or OSC1-based clock output from CGM module
(Bus clock = CGMOUT divided by two)
IAB Internal address bus
IDB Internal data bus
PORRST Signal from the power-on reset module to the SIM
IRST Internal reset signal
R/W Read/write signal
STOP/WAIT
CLOCK
CONTROL
CLOCK GENERATORS
POR CONTROL
RESET PIN CONTROL
SIM RESET STATUS REGISTER
INTERRUPT CONTROL
AND PRIORITY DECODE
MODULE STOP
MODULE WAIT
CPU STOP (FROM CPU)
CPU WAIT (FROM CPU)
SIMOSCEN (TO CGM)
CGMOUT (FROM CGM)
INTERNAL CLOCKS
MASTER
RESET
CONTROL
RESET
PIN LOGIC
LVI (FROM LVI MODULE)
ILLEGAL OPCODE (FROM CPU)
ILLEGAL ADDRESS (FROM ADDRESS
MAP DECODERS)
COP (FROM COP MODULE)
INTERRUPT SOURCES
CPU INTERFACE
RESET
CONTROL
SIM
COUNTER
COP CLOCK
CGMXCLK (FROM CGM)
÷ 2
