Serial Communications Interface
Technical Data MC68HC908AB32Rev. 1.0
272 Serial Communications Interface Module (SCI) MOTOROLA

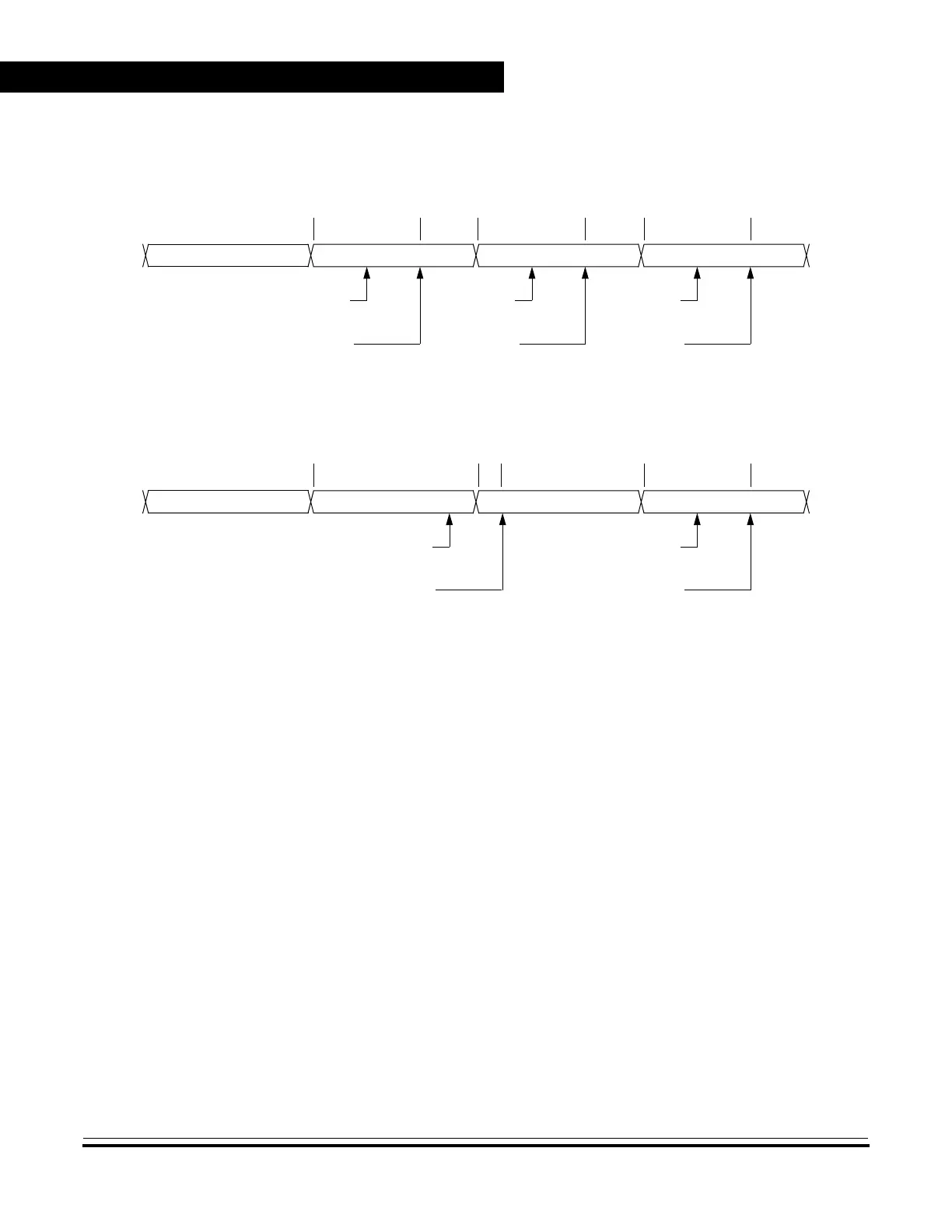

Figure 15-13. Flag Clearing Sequence
PE — Receiver Parity Error Bit
This clearable, read-only bit is set when the SCI detects a parity error
in incoming data. PE generates a PE CPU interrupt request if the
PEIE bit in SCC3 is also set. Clear the PE bit by reading SCS1 with
PE set and then reading the SCDR. Reset clears the PE bit.
1 = Parity error detected
0 = No parity error detected
BYTE 1
NORMAL FLAG CLEARING SEQUENCE
READ SCS1
SCRF = 1
READ SCDR
BYTE 1
SCRF = 1
SCRF = 1
BYTE 2 BYTE 3 BYTE 4
OR = 0
READ SCS1
SCRF = 1
OR = 0
READ SCDR
BYTE 2
SCRF = 0
READ SCS1
SCRF = 1
OR = 0
SCRF = 1
SCRF = 0
READ SCDR
BYTE 3
SCRF = 0
BYTE 1
READ SCS1
SCRF = 1
READ SCDR
BYTE 1
SCRF = 1
SCRF = 1
BYTE 2 BYTE 3 BYTE 4
OR = 0
READ SCS1
SCRF = 1
OR = 1
READ SCDR
BYTE 3
DELAYED FLAG CLEARING SEQUENCE
OR = 1
SCRF = 1
OR = 1
SCRF = 0
OR = 1
SCRF = 0
OR = 0
