Transmitter
PROFI TX
Page 23
2 Transmitter
2.1 Transmitter overview
2.1.1 Top view

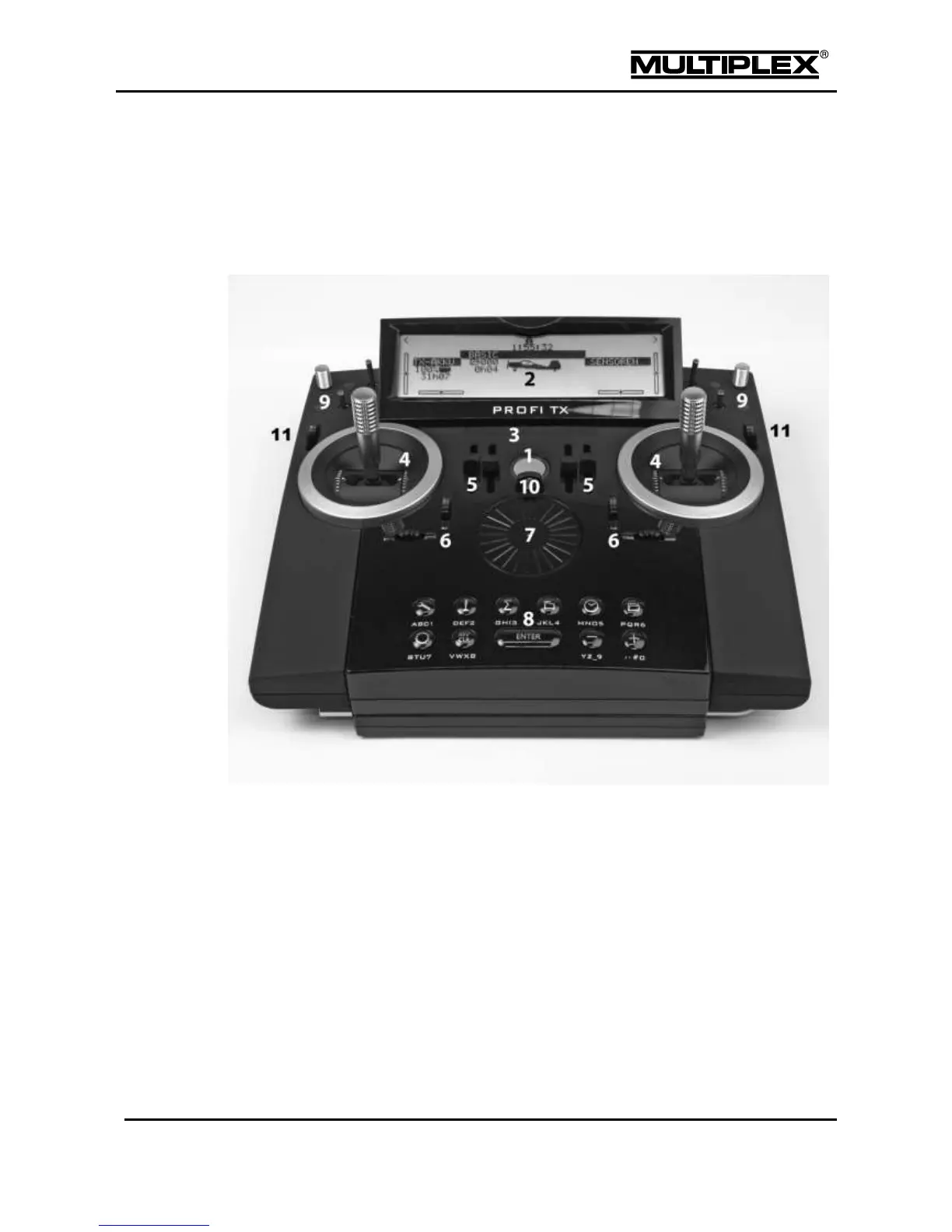

Figure 1: Top view of the transmitter
1
Power button with annular light (see "Switching the transmitter on / off" on
page 43).
The annular light indicates the status of the RF module during operation (see
"Annular light" on page 24).
2
UV-stable, anti-glare graphic LCD unit (256 x 64 dots) featuring high contrast.
The screen contrast can be optimised (see section 4.3.9 "Transmitter" on
page 114), and the screen can be raised as required.
3
Warning lights for the sensors used on the model. The warning lights indicate
whether the alarm values for certain sensor groups have been exceeded (see
section "Warning lights" on page 25).
