Transmitter
Page 26
PROFI TX
2.1.2 Underside view

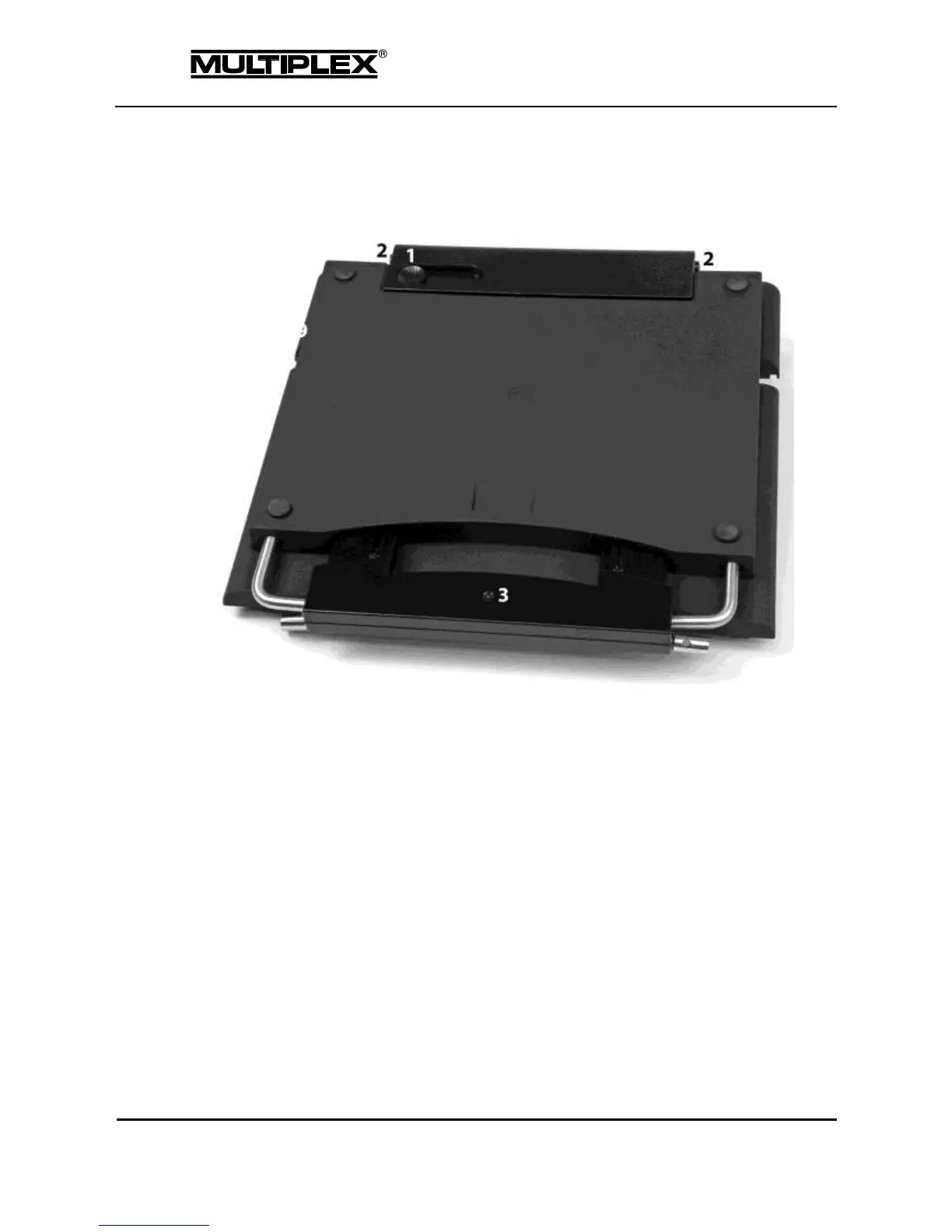

Figure 2: Underside view of the transmitter
1
Recessed control for the sliding latch for USB sockets (see section 2.1.5
"Connectors" on page 29)
2
Fasteners for opening the case (see section 2.3.1 "Opening and closing the
case" on page 31)
3
Carry bars
