Multiplex Profi TX - Connectors

Transmitter
PROFI TX
Page 29
2.1.5 Connectors

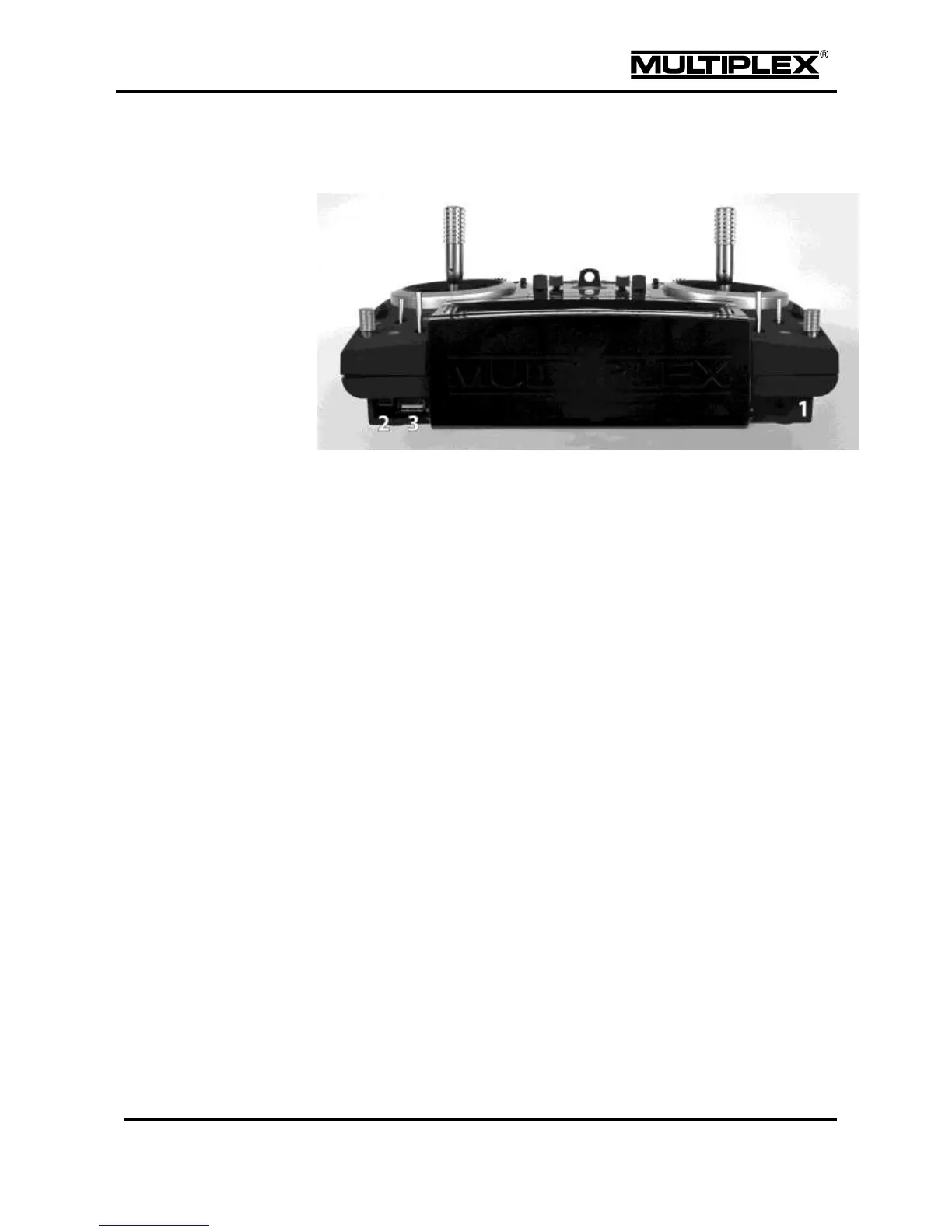

Figure 4: Connectors on the transmitter
1
Headset connector (stereo jack); when a headset is connected, the
loudspeaker of the PROFI TX is switched off
2
Mini USB socket for connecting the PROFI TX to a PC and for charging the
battery via the charging socket (see section 2.4.1 "Charging the battery" on
page 40)
3
USB-A socket for future expansions
