3.2.3 eHeliccpm model template
For collective pitch-controlled electric helicopters with main rotor for electronic
mixing (Collective Cyclic Pitch Mixer).
The "Governor" mode option is activated for Throttle. Switch off this option if you
prefer to work with throttle curves (see "Throttle (helicopter)", page 124).
Function
1
MAINROTOR-FB
2
MAINROTOR-L.
3
TAIL ROTOR
4
MAINROTOR-FB
5
Throttle

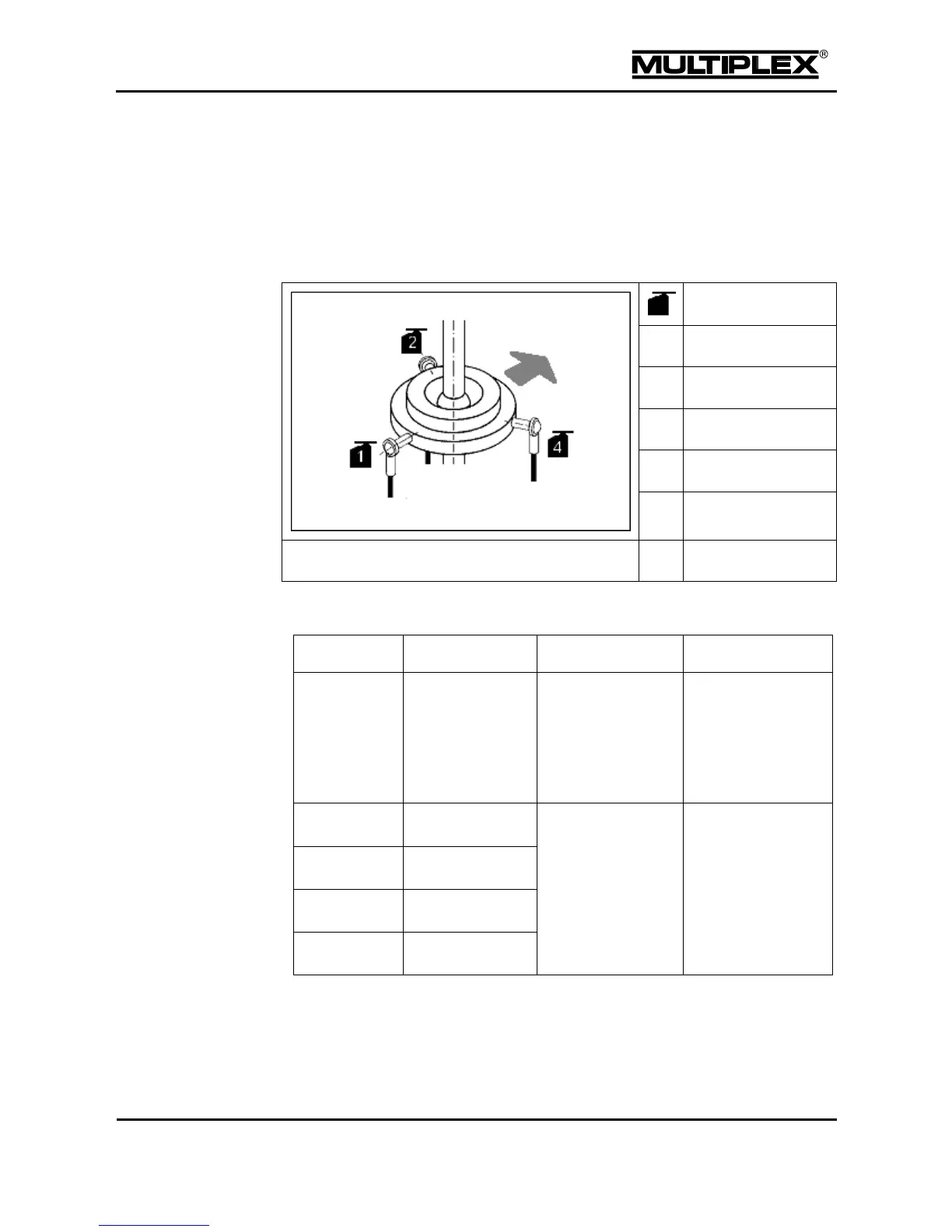

Figure 14: Servo assignment for electronically mixed main rotors
6
Gyro
Mixer
Name
Mixer inputs
Settings
Value
TAIL ROTOR
Aileron, Collective
"Collective" and "Offset"
are switched off if the
gyro operates in
Heading-hold mode.
Offset
FP4
Coll.+
Coll.-
FP4
Origin
Rudd.Diff.
FP4
OFF
OFF
OFF
0%
OFF
MAINROTOR-R.
Rudder, Elevator,
Collective
Geometry
Rotation
Lever +/-
120%
0°
0%
MAINROTOR-L.
Rudder, Elevator,
Collective
MAINROTOR-FB
Rudder, Elevator,
Collective
MAINROTOR-4
Rudder, Elevator,
Collective
FP4
= 4 flight phases; for helicopters, the fourth flight phase is always AUTOROT
(auto-rotation).
