3.1.2 ACRO model template
 The ACRO model template is suitable for power models with up to 4 flaps,
optionally with snap flap.
Pre-defined mixers on the control side, with 2 more that can be defined by
the operator.
Name
Mixer inputs
Options & settings
Value (%)
Combi-Switch
Ail <> rudder
Ail < rudder
OFF
Differnt.Ail
Aileron
Mode
Differnt.Ail
+SPOILER
50%
Pre-defined mixers on the servo side
Name
Mixer inputs
Options & settings
Value (%)
ELEVATOR+
Elevator
š
Up and down
travels are
asymmetrical
100%
100%
Function
1
AILERONS+
2
ELEVATOR+
3
Rudder
4
Power system
5
AILERONS+

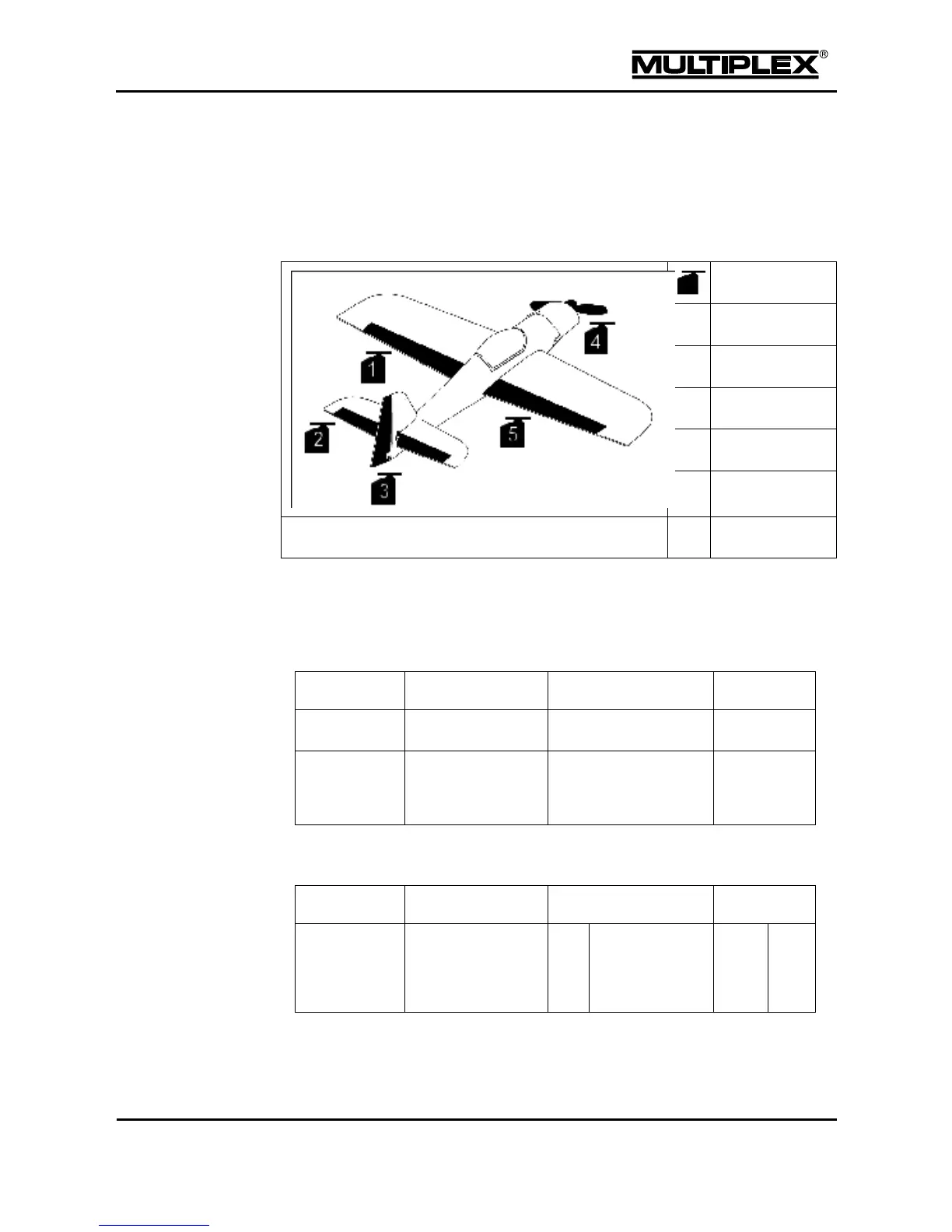

Figure 9: ACRO servo assignment
