3.1.4 DELTA WING model template
This model template is suitable for delta wing models.
Pre-defined mixers on the control side, with 2 more that can be defined by
the operator.
Name
Mixer inputs
Options & settings
Value
Combi-Switch
Ail <> rudder
Ail < rudder
OFF
Differnt.Ail
Aileron
Mode
Differnt.Ail
ON
50%
Pre-defined mixers on the servo side
Name
Mixer inputs
Options & settings
Value
DELTA+
Aileron
™ 2
Up and down travels
are symmetrical
70%
70%
Elevator
š
Up and down travels
are asymmetrical
70%
70%
Throttle-T
›-
Single-sided travel,
with deadband
OFF
OFF

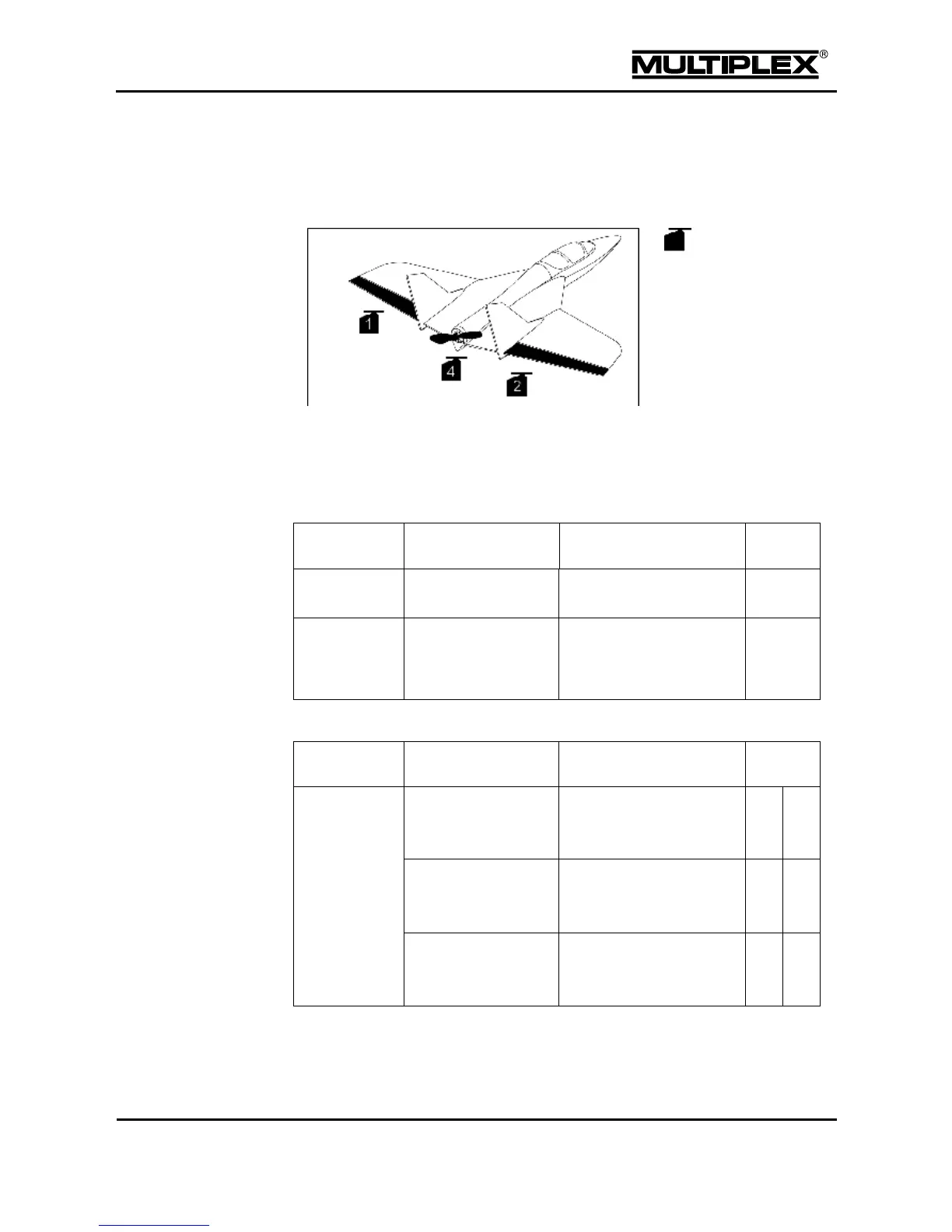

Figure 11: DELTA WING servo assignment
Function
1+2
DELTA+
3
Rudder
4
Throttle
