SECTION 6
MAINTENANCE
154

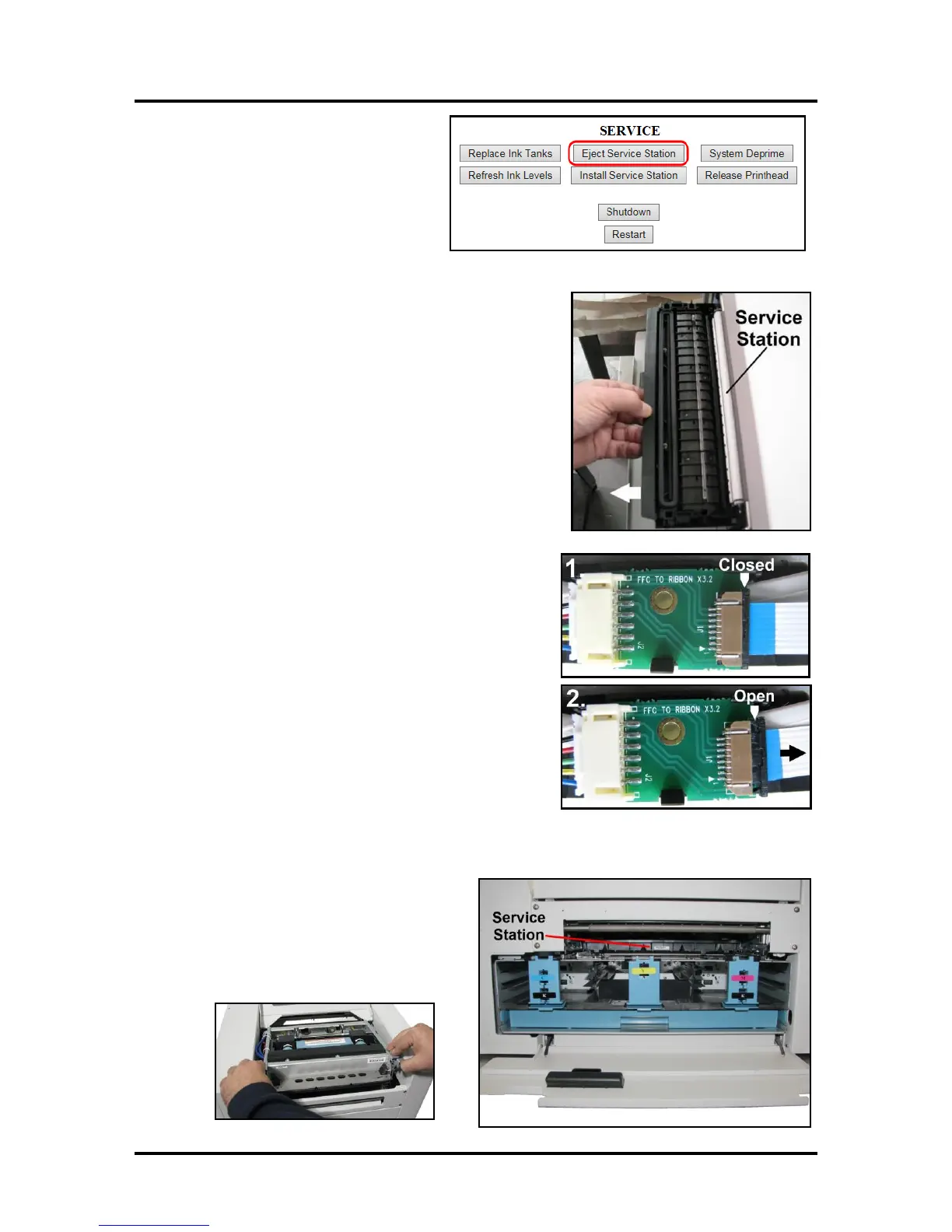

3. Power-up the printer.
4. Open the Printer Toolbox. In the User
Interface window, press the “Eject
Service Station” button.
5. Once the Service Station has ejected;
power OFF the printer. Press the
ON/OFF button once and wait about
45 seconds for the print engine to
power off (all control panel light’s off). Then turn the Main Power Switch OFF.
6. Slide the Service Station out of the Service Station slot.
CAUTION: Do not pull Station all the way out until you
disconnect the Ribbon Cable.
NOTE: It is a good idea to place an absorbent towel
under the Service Station as you remove it to prevent any
drips or leaks.
4. Disconnect the Ribbon Cable. Slide the Latch open on
the Service Station Circuit Board to release the Ribbon
Cable.
CAUTION! This latch can be broken if you pull it out
too far. Be careful!
5. Remove the Service Station completely from the print
engine and place it on a non-absorbent surface (plastic
bag) to protect the surface you are placing it on.
6. If you are replacing or re-installing the Service Station,
please see the section titled
“Installing the Service Station”.
7. If you are cleaning or replacing items in the service
station; please see the next section titled “Cleaning the
Service Station”.
To remove the Service Station with power OFF and/or not Printer connected to a computer:
1. Open the Front Cover (hinged at
bottom). Open the Top Cover.
2. Release the two latches and open the
Print Engine Clamshell. (Service
Station will not fully eject with the
Clamshell closed.)
To Next Page
