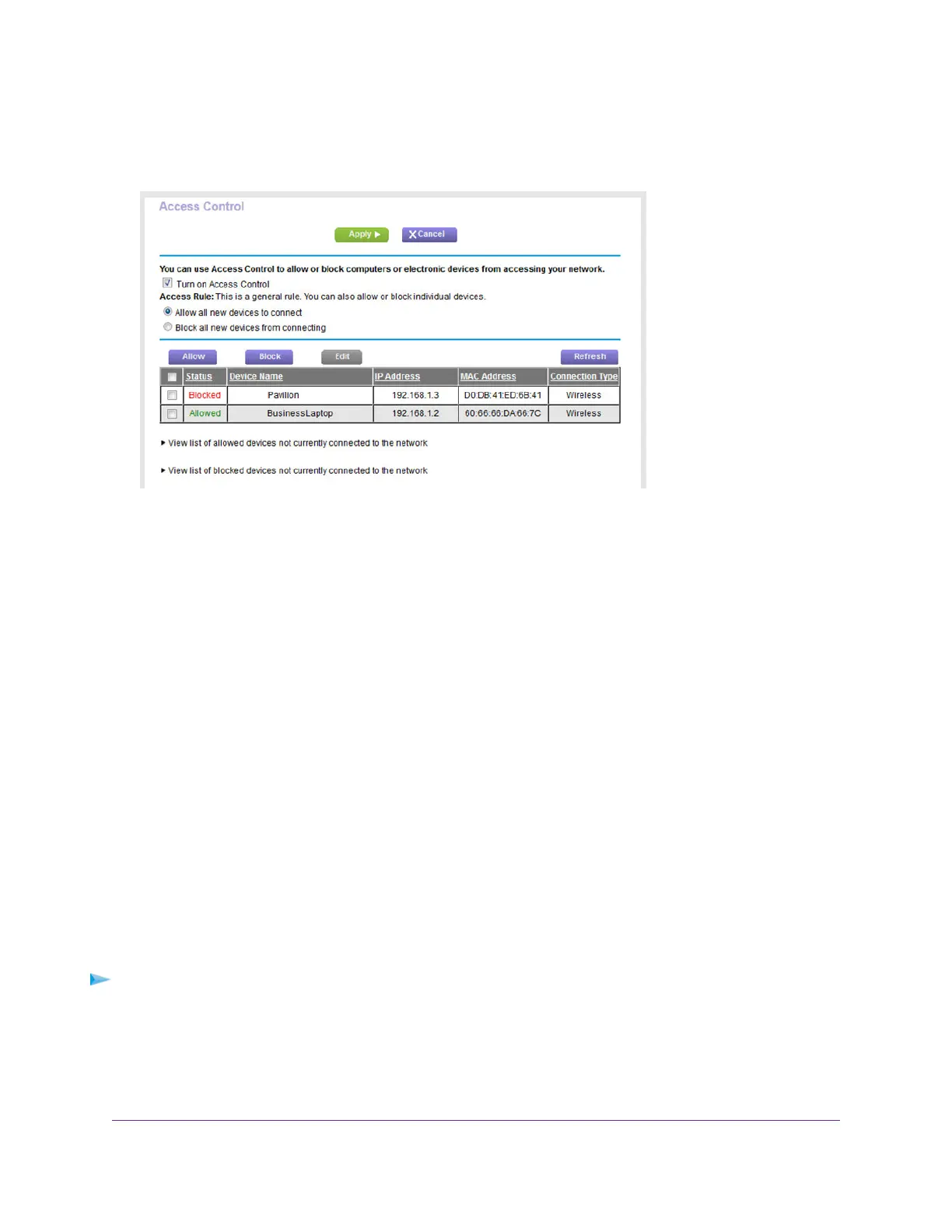

• To either continue to allow or to block other computers and devices that are currently connected,
select the check box next to the computer or device in the table, and click either the Allow button or
the Block button.
9. Click the Apply button.
Your settings are saved.
Manage Network Access Control Lists
You can use access control to block or allow access to your network. An access control list (ACL) functions
with the MAC addresses of wired and WiFi devices that can either access your entire network or are blocked
from accessing your entire network.
The modem router can detect the MAC addresses of devices that are connected to the network and list the
MAC addresses of devices that were connected to the network.
Each network device owns a MAC address, which is a unique 12-character physical address, containing
the hexadecimal characters 0–9, a–f, or A–F (uppercase or lowercase) only, and separated by colons (for
example, 00:09:AB:CD:EF:01). Typically, the MAC address is on the label of the WiFi card or network
interface device. If you cannot see the label, you can display the MAC address using the network configuration
utilities of the computer.You might also find the MAC addresses through the web pages of the modem
router (see View Devices Currently on the Network on page 210).
Add Devices to or Remove Them From the Allowed List
If you set up an access list that blocks all new devices from accessing your network, you must specify which
devices are allowed to access your network.
To add or remove devices that are allowed:
1. Launch a web browser from a WiFi-enabled computer or mobile device that is connected to the network.
2. Enter http://www.routerlogin.net.
A login window opens.
3. Enter the modem router user name and password.
Control Access to the Internet
106
AC1200 WiFi VDSL/ADSL Modem Router Model D6220

Table of Contents

Other manuals for NETGEAR D6220

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR D6220 and is the answer not in the manual?

NETGEAR D6220 Specifications

General IconGeneral
DSL WAN-
Ethernet WANYes
SIM card slotNo
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)900 Mbit/s
Product typeTabletop router
Product colorBlack
Security algorithmsWPA, WPA2, WPA2-PSK
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11ac
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports5
Power source typeAC
Routing protocolsIP
Antennas quantity2
Cables includedLAN (RJ-45), Phone (RJ-11)
Weight and Dimensions IconWeight and Dimensions
Depth182 mm
Width240 mm
Height41 mm
Weight341 g
