NETGEAR D6220 User Manual

Change a Port Triggering Rule
You can change an existing port triggering rule.
To change a port triggering rule:
1. Launch a web browser from a WiFi-enabled computer or mobile device that is connected to the network.
2. Enter http://www.routerlogin.net.
A login window opens.
3. Enter the modem router user name and password.
The user name is admin.The default password is password.The user name and password are
case-sensitive.
The BASIC Home page displays.
4. Select ADVANCED > Advanced Setup > Port Forwarding / Port Triggering.
The Port Forwarding / Port Triggering page displays.
5. Select the Port Triggering radio button.

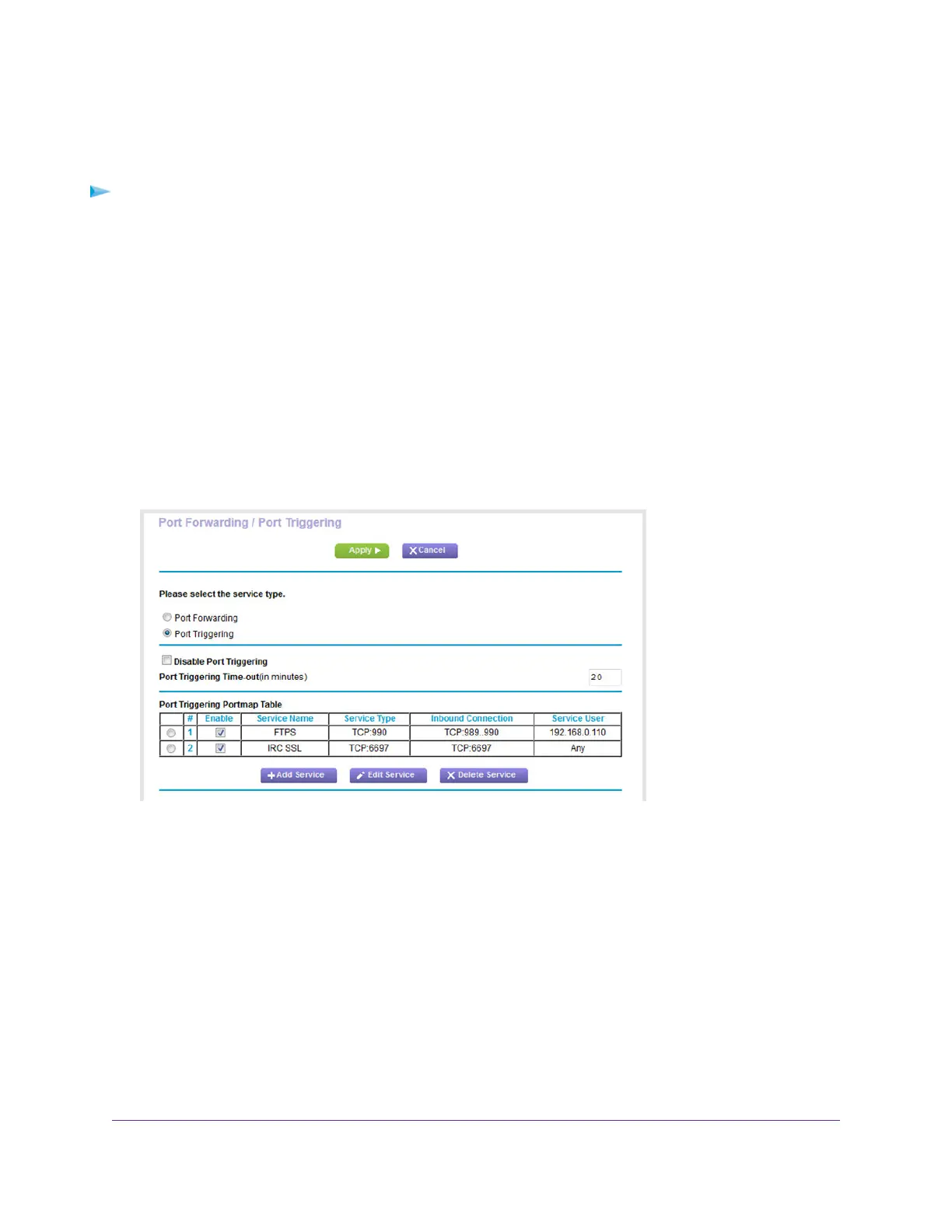

The previous figure shows two port triggering rules.
6. In the Port Triggering Portmap Table, select the radio button for the service or application name.
7. Click the Edit Service button.
The Port Triggering - Services page displays.
8. Change the settings.
For information about the settings, see Add a Port Triggering Rule on page 244.
9. Click the Apply button.
Your settings are saved. The changed rule displays in the Port Triggering Portmap Table on the Port
Forwarding / Port Triggering page.
Manage Port Forwarding and Port Triggering
246
AC1200 WiFi VDSL/ADSL Modem Router Model D6220

NETGEAR D6220 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	900 Mbit/s
Product type	Tabletop router
Product color	Black
Security algorithms	WPA, WPA2, WPA2-PSK
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
Power source type	AC
Routing protocols	IP
Antennas quantity	2
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	182 mm
Width	240 mm
Height	41 mm
Weight	341 g
