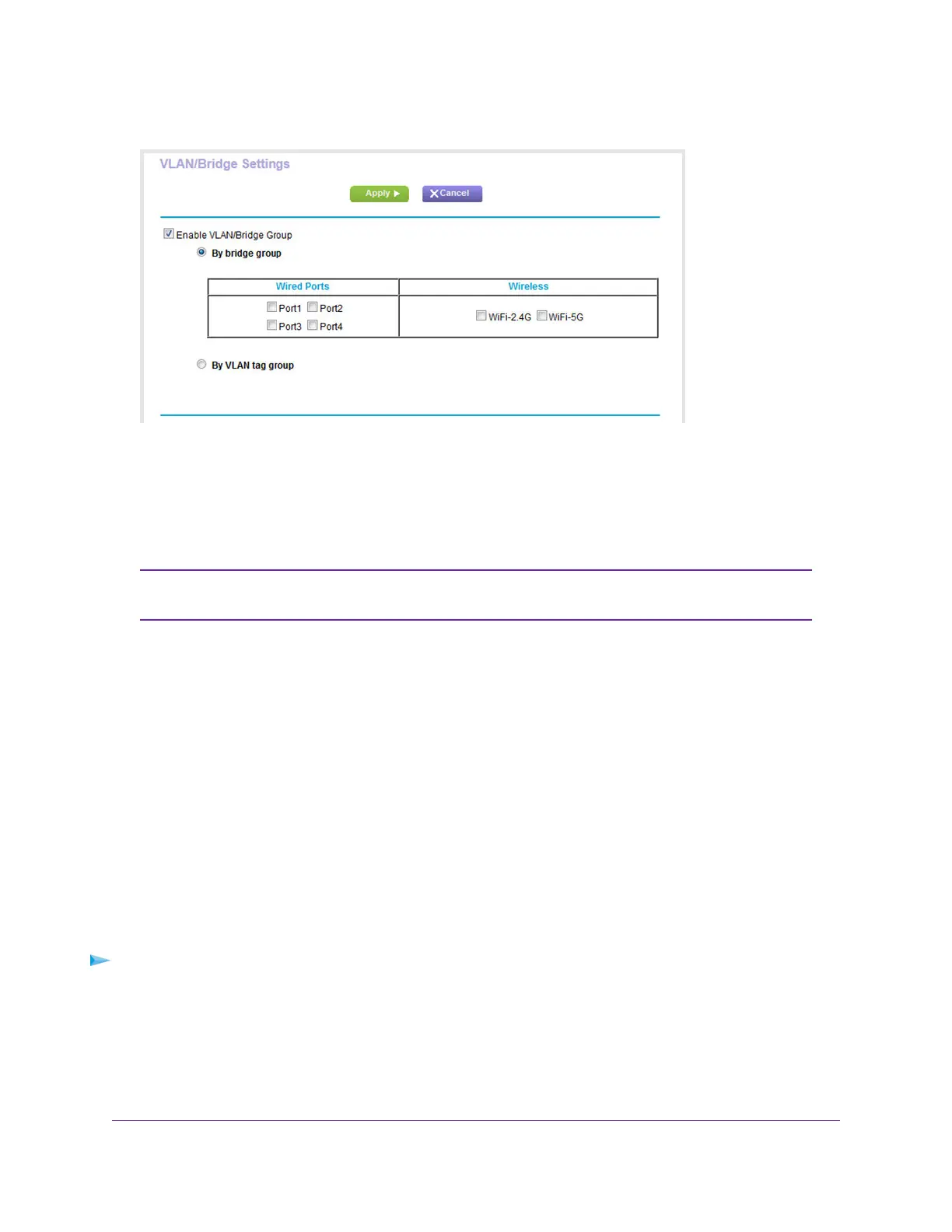

6. Select the By bridge group radio button.
7. Select a Wired Ports check box or a Wireless check box.
• If your device is connected to an Ethernet port on the modem router, select the Wired Ports check
box that corresponds to the Ethernet port on the modem router to which the device is connected.
• If your device is connected to your modem router’s WiFi network, select the Wireless check box that
corresponds to the modem router’s WiFi network to which the device is connected.
You must select at least one Wired Ports or Wireless check box.You can select more
than one check box.
Note
8. Click the Apply button.
Your settings are saved.
Set Up a Bridge for a VLAN Tag Group
If the devices that are connected to the modem router’s Ethernet LAN ports or WiFi network include an IPTV
device, your ISP might require you to set up a bridge for a VLAN tag group for the modem router’s Internet
interface.
If you are subscribed to IPTV service, the modem router might require VLAN tags to distinguish between
the Internet traffic and the IPTV traffic. A bridge with a VLAN tag group prevents packets that are sent
between the IPTV device and the modem router’s Internet port from being processed through the modem
router’s network address translation (NAT) service.
You can add VLAN tag groups to a bridge and assign VLAN IDs and priority values to each VLAN tag group.
To add a VLAN tag group and enable the bridge:
1. Launch a web browser from a WiFi-enabled computer or mobile device that is connected to the network.
2. Enter http://www.routerlogin.net.
A login window opens.
3. Enter the modem router user name and password.
Manage the WAN and LAN Network Settings
177
AC1200 WiFi VDSL/ADSL Modem Router Model D6220
