NETGEAR D6220 User Manual

The user name is admin.The default password is password.The user name and password are
case-sensitive.
The BASIC Home page displays.

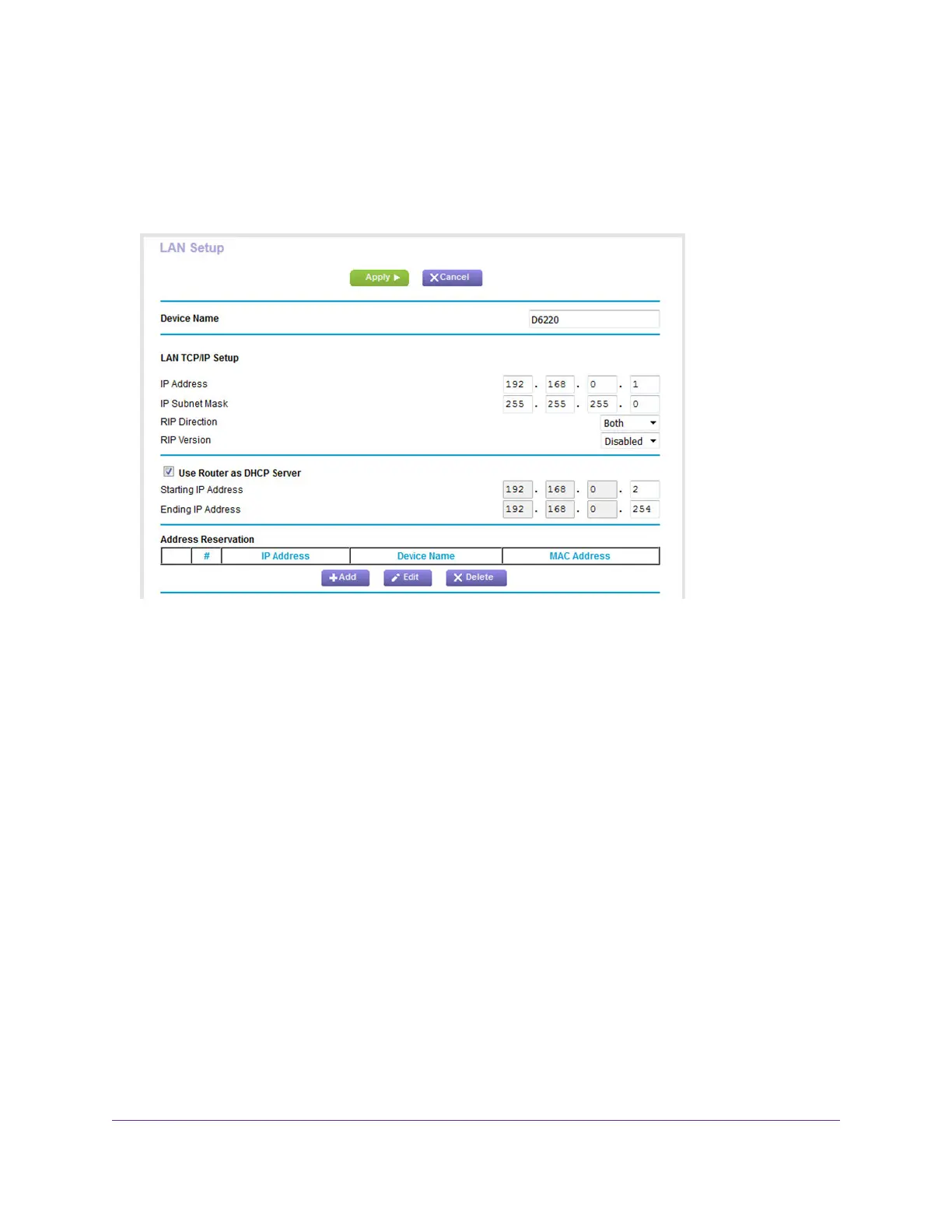

4. Select ADVANCED > Setup > LAN Setup.
5. Make sure that the Use Router as DHCP Server check box is selected.
This check box is selected by default.
6. Specify the range of IP addresses that the modem router assigns:
• In the Starting IP Address field, enter the lowest number in the range.
This IP address must be in the same subnet as the modem router. By default, the starting IP address
is 192.168.0.2.
• In the Ending IP Address field, enter the number at the end of the range of IP addresses.
This IP address must be in the same subnet as the modem router. By default, the ending IP address
is 192.168.0.254.
7. Click the Apply button.
Your settings are saved.
Disable the Built-In DHCP Server
By default, the modem router functions as a DHCP server. The modem router assigns IP, DNS server, and
default gateway addresses to all devices connected to the LAN. The assigned default gateway address is
the LAN address of the modem router.
You can use another device on your network as the DHCP server or specify the network settings of all your
computers.
Manage the WAN and LAN Network Settings
187
AC1200 WiFi VDSL/ADSL Modem Router Model D6220

NETGEAR D6220 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	900 Mbit/s
Product type	Tabletop router
Product color	Black
Security algorithms	WPA, WPA2, WPA2-PSK
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
Power source type	AC
Routing protocols	IP
Antennas quantity	2
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	182 mm
Width	240 mm
Height	41 mm
Weight	341 g
