NETGEAR D6220 User Manual

Change an Outbound Firewall Rule
You can change an existing outbound firewall rule.
To change an outbound firewall rule:
1. Launch a web browser from a WiFi-enabled computer or mobile device that is connected to the network.
2. Enter http://www.routerlogin.net.
A login window opens.
3. Enter the modem router user name and password.
The user name is admin.The default password is password.The user name and password are
case-sensitive.
The BASIC Home page displays.
4. Select ADVANCED > Security > Block Services.

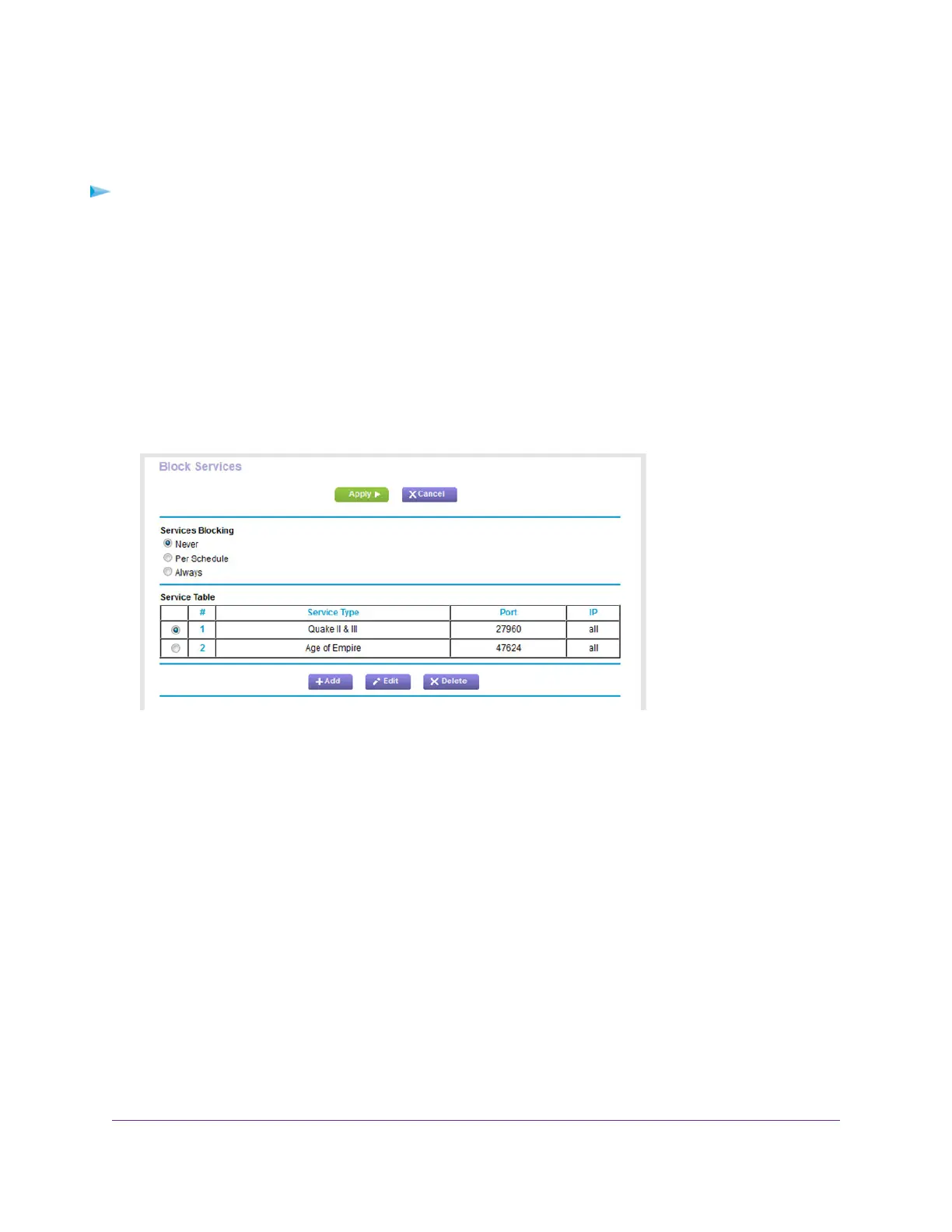

The previous figure shows two rules in the Service Table.
5. In the Service Table, select the radio button for the rule.
6. Click the Edit button.
The Block Services Setup page displays.
7. Change the settings.
For more information about the settings, see Add an Outbound Firewall Rule for a Custom Service or
Application on page 115.
8. Click the Accept button.
Your settings are saved. The changed rule displays in the Service Table on the Block Services page.
Control Access to the Internet
117
AC1200 WiFi VDSL/ADSL Modem Router Model D6220

NETGEAR D6220 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	900 Mbit/s
Product type	Tabletop router
Product color	Black
Security algorithms	WPA, WPA2, WPA2-PSK
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
Power source type	AC
Routing protocols	IP
Antennas quantity	2
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	182 mm
Width	240 mm
Height	41 mm
Weight	341 g
