4. Select ADVANCED > USB Functions > ReadySHARE Storage.

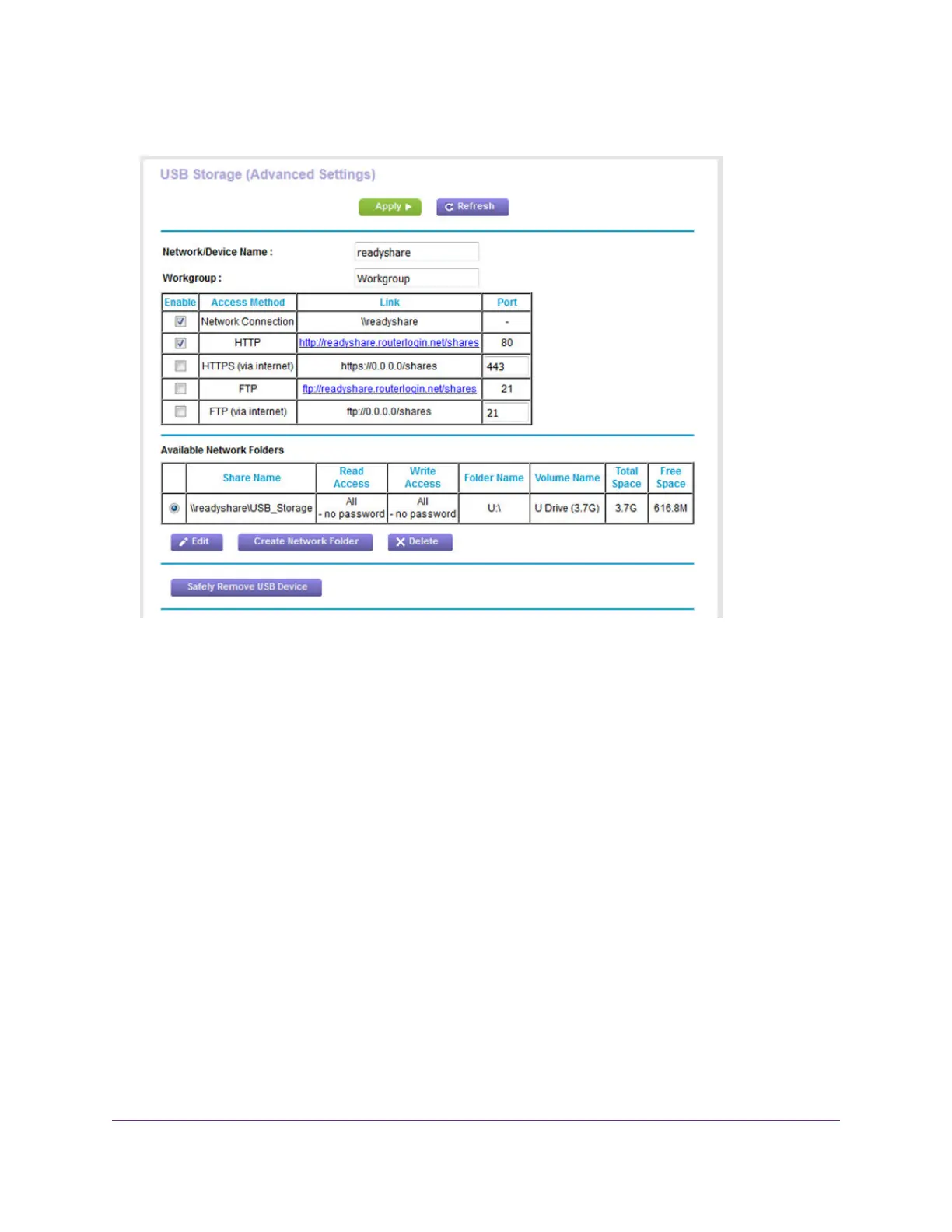

The previous figure shows a USB device attached to the modem router.

5. In the Available Network Folders table, select the device.

6. Click the Safely Remove USB Device button.

The device goes offline and a pop-up window opens.

7. Click the OK button.

8. Physically disconnect the USB device.

Share a Storage Device Attached to the Modem Router

150

AC1200 WiFi VDSL/ADSL Modem Router Model D6220
