NETGEAR D6220 User Manual

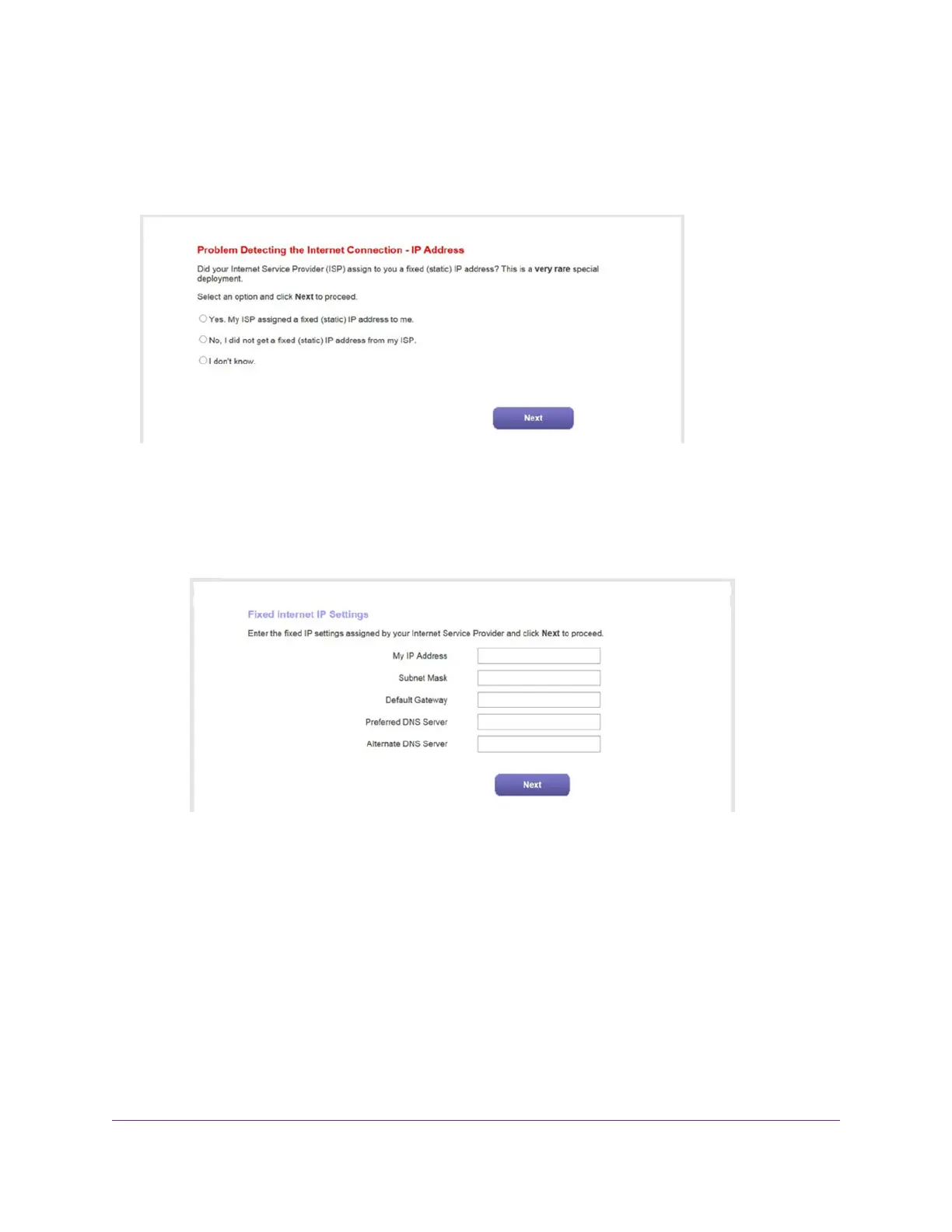

18. (Only if the page in the following figure displays) Specify how to manage problems with the detection
of the IP address for the Internet connection.
The page that might display states that a problem occurred while the wizard was detecting the Internet
connection IP address. If this page does not display, continue with Step 19.
Take one of the following actions:
• If your ISP assigned you a fixed (static) IP address, do the following:
a. Select the Yes radio button.
b. Click the Next button.
c. Enter the address information that your ISP gave you for your fixed IP address configuration.
d. Click the Next button.
• If your ISP did not assign you a fixed IP address or you do not know if your ISP assigned you a fixed
IP address, do the following:
Install and Access the Modem Router and Its Network
24
AC1200 WiFi VDSL/ADSL Modem Router Model D6220

NETGEAR D6220 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	900 Mbit/s
Product type	Tabletop router
Product color	Black
Security algorithms	WPA, WPA2, WPA2-PSK
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
Power source type	AC
Routing protocols	IP
Antennas quantity	2
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	182 mm
Width	240 mm
Height	41 mm
Weight	341 g
