Configure Switching Information
124
M4100 Series Managed Switch
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select Switching
VLAN Advanced VLAN Trunking Configuration.
8. Select the interface to configure:
• Select the Unit ID field to display physical port information for the selected unit.
• Use LAG to display LAG only.
• Use All to display all physical ports.
• Use Go T
o Interface to select an interface by entering its number.
• Select the Interface check box.

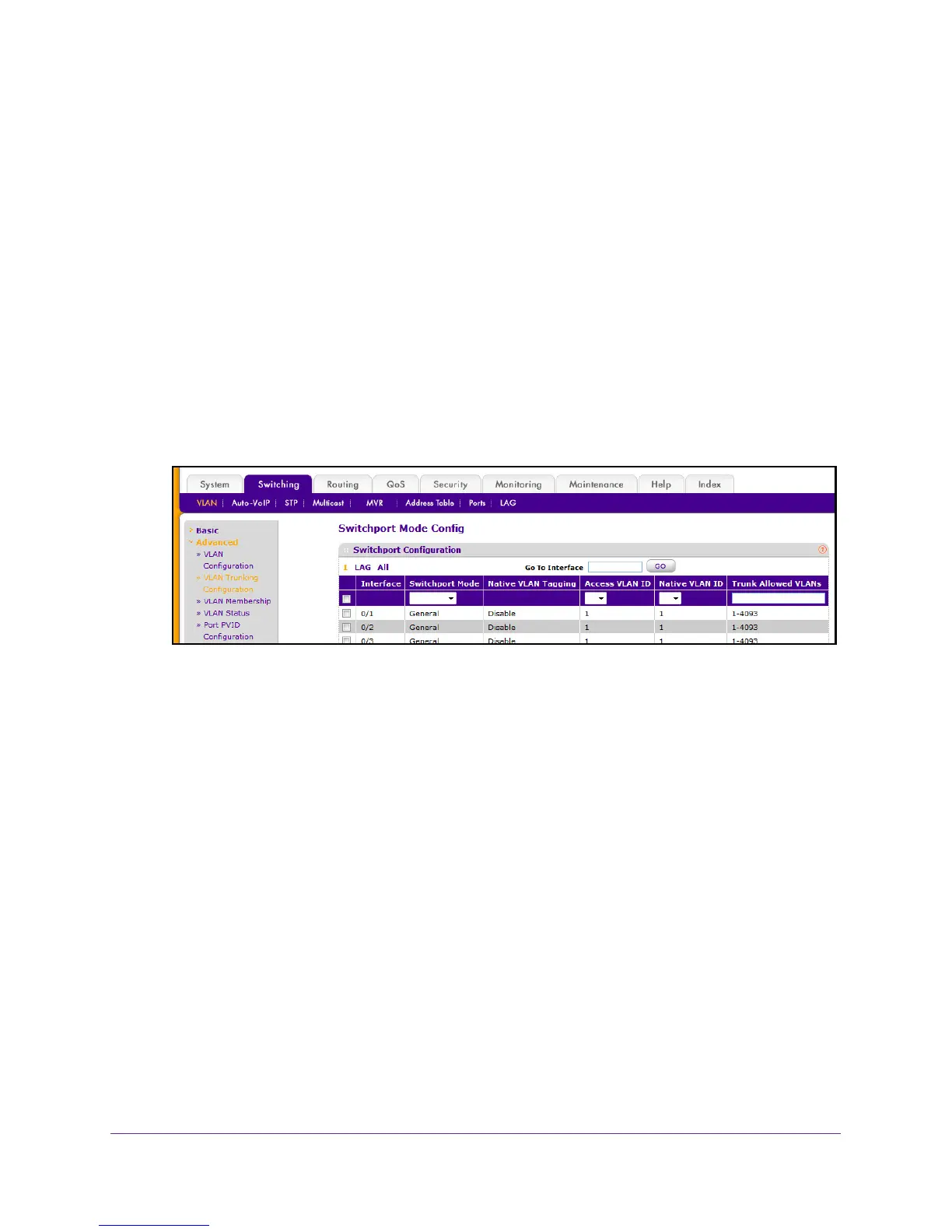

9. Select from the menu to configure the switchport mode of the interface as one of the
following:
• Access mode is suitable for ports connected to end stations or end users.
Access
ports participate only in one VLAN. They accept both tagged and untagged packets,
but always transmit untagged packets.
• General mode enables custom configuration of a port.
The user configures the
General port VLAN attributes, such as membership, PVID, tagging, ingress filter, and
so on, using the settings on the Port Configuration screen. By default, all ports are
initially configured in General mode.
• T
runk mode is intended for ports that are connected to other switches. Trunk ports
can participate in multiple VLANs and accept both tagged and untagged packets.
10. Select from the menu to configure the Access VLAN ID.
