NETGEAR M4100 Series User Manual

Configure Switching Information
136
M4100 Series Managed Switch
Configure a Voice VLAN
You can configure the parameters for a voice VLAN. Only a user with Read/Write access
privileges can change the data on this screen.
 To configure a voice VLAN:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

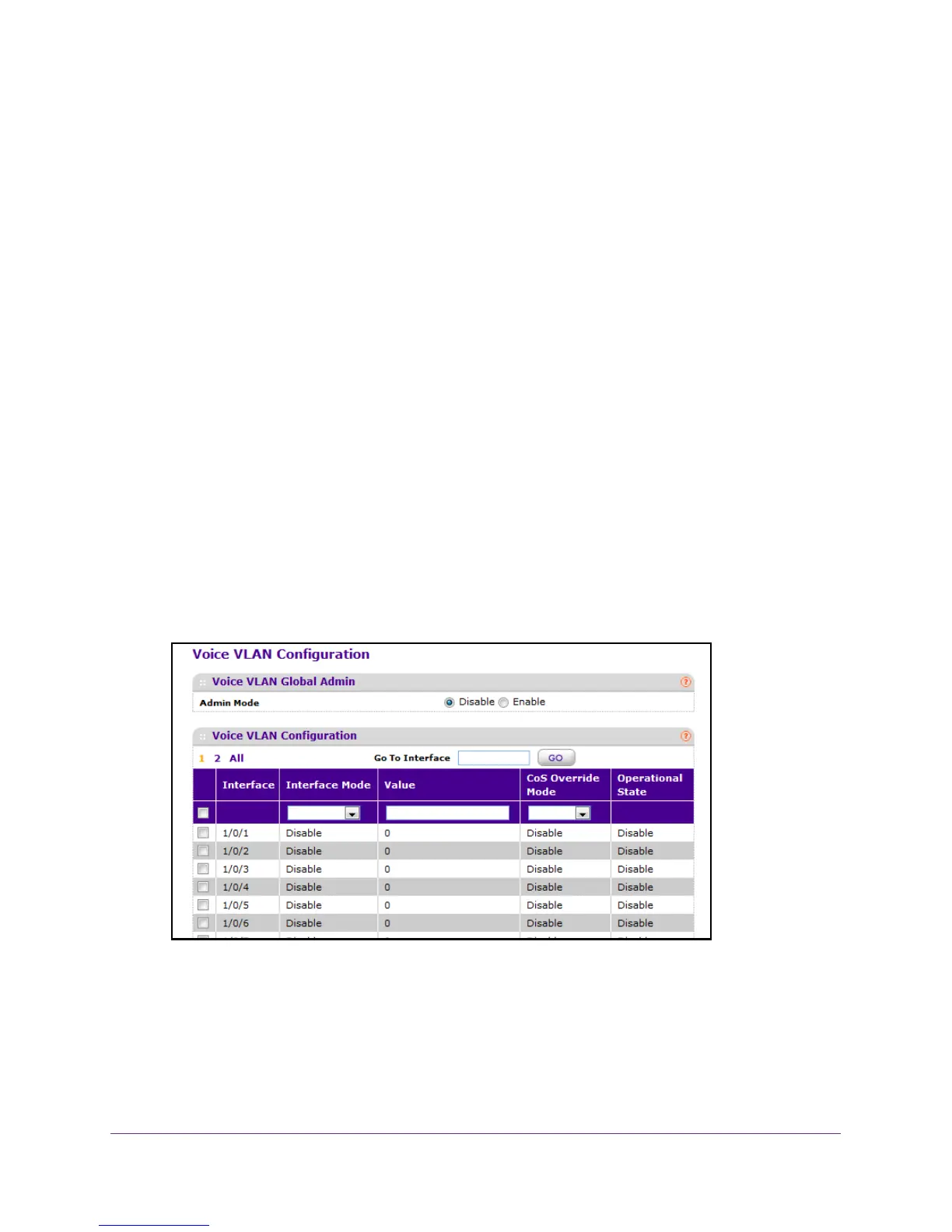

7. Select Switching
 VLAN  Advanced  Voice VLAN Configuration.
The Operational State field displays the status of the voice VLAN for each interface.
8. Select the
Administrative Mode Disable or Enable radio button.
The default value is Disable.
9. Use Interface to select the physical interface.
10. Use Interface Mode to select the voice VLAN mode for selected interface:

NETGEAR M4100 Series Specifications

General

Model	M4100 Series
Switch Type	Managed
Form Factor	Rack-mountable
Port Configuration	24 or 48 ports
Ethernet Ports	10/100/1000 Mbps
PoE Support	Available on some models (PoE and PoE+)
Layer	Layer 2/Layer 3
Management	Web-based, CLI, SNMP
VLAN Support	Yes
QoS	Yes
Stackable	Yes
Ports	24 or 48
Jumbo Frame Support	Yes
Security Features	ACL, 802.1X, RADIUS, TACACS+
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-20° to 70° C (-4° to 158° F)
Power Supply	Internal power supply
