7. Select Help  Online Help > Support.
To connect to the NETGEAR support site for managed switch, click the APPL
Y button.
Web Management Interface Device View
The Device View is a Java
®
applet that displays the ports on the switch. This graphic provides
an alternate way to navigate to configuration and monitoring options. The graphic also
provides information about device ports, current configuration and status, tables, and feature
components.
 To use Device View:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select System
 Device View.

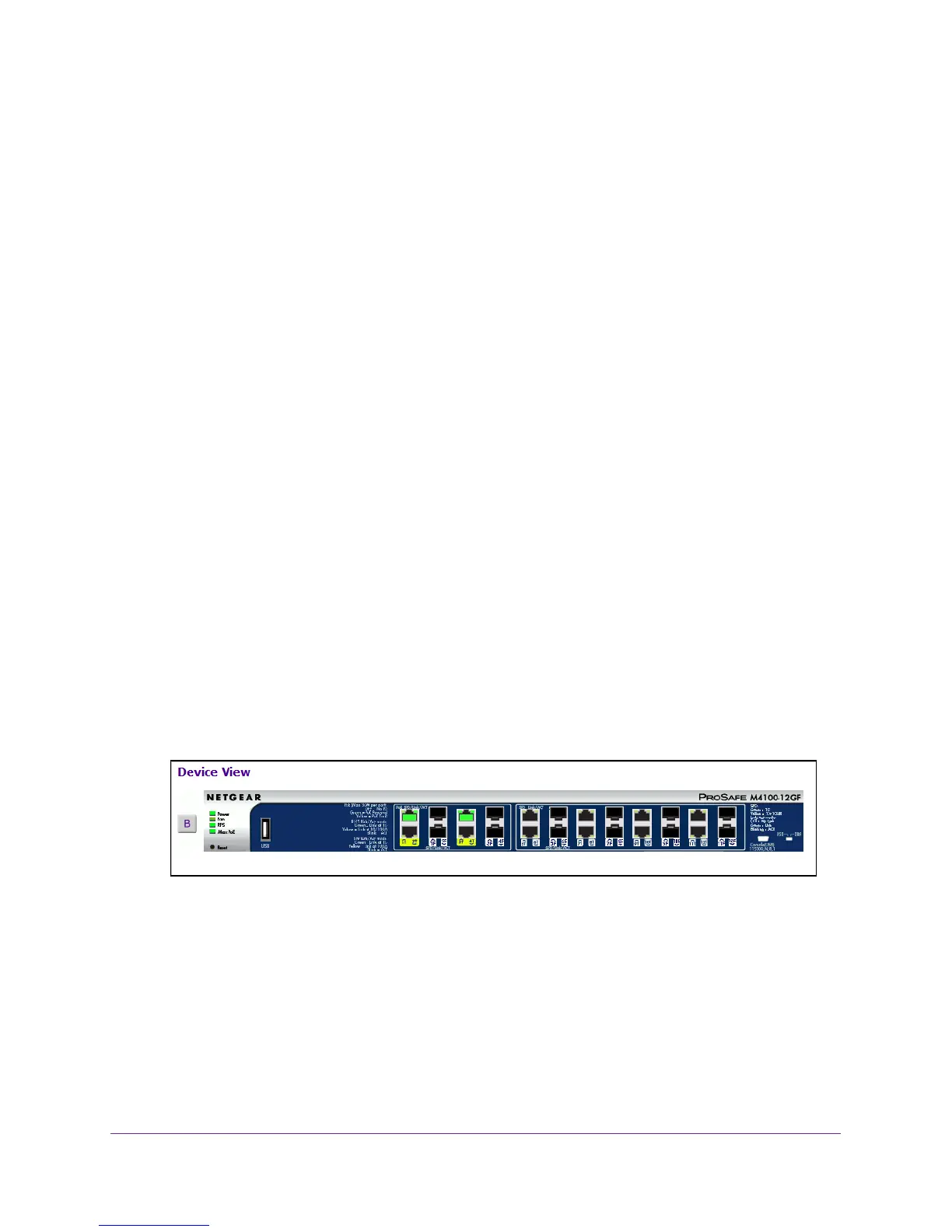

The port coloring indicates whether a port is currently active. Green indicates that the port
is enabled; red indicates that an error occurred on the port, or that the link is disabled.

NETGEAR M4100 Series Specifications

General

Model	M4100 Series
Switch Type	Managed
Form Factor	Rack-mountable
Port Configuration	24 or 48 ports
Ethernet Ports	10/100/1000 Mbps
PoE Support	Available on some models (PoE and PoE+)
Layer	Layer 2/Layer 3
Management	Web-based, CLI, SNMP
VLAN Support	Yes
QoS	Yes
Stackable	Yes
Ports	24 or 48
Jumbo Frame Support	Yes
Security Features	ACL, 802.1X, RADIUS, TACACS+
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-20° to 70° C (-4° to 158° F)
Power Supply	Internal power supply
