NETGEAR M4100 Series User Manual

Manage Device Security
324
M4100 Series Managed Switch

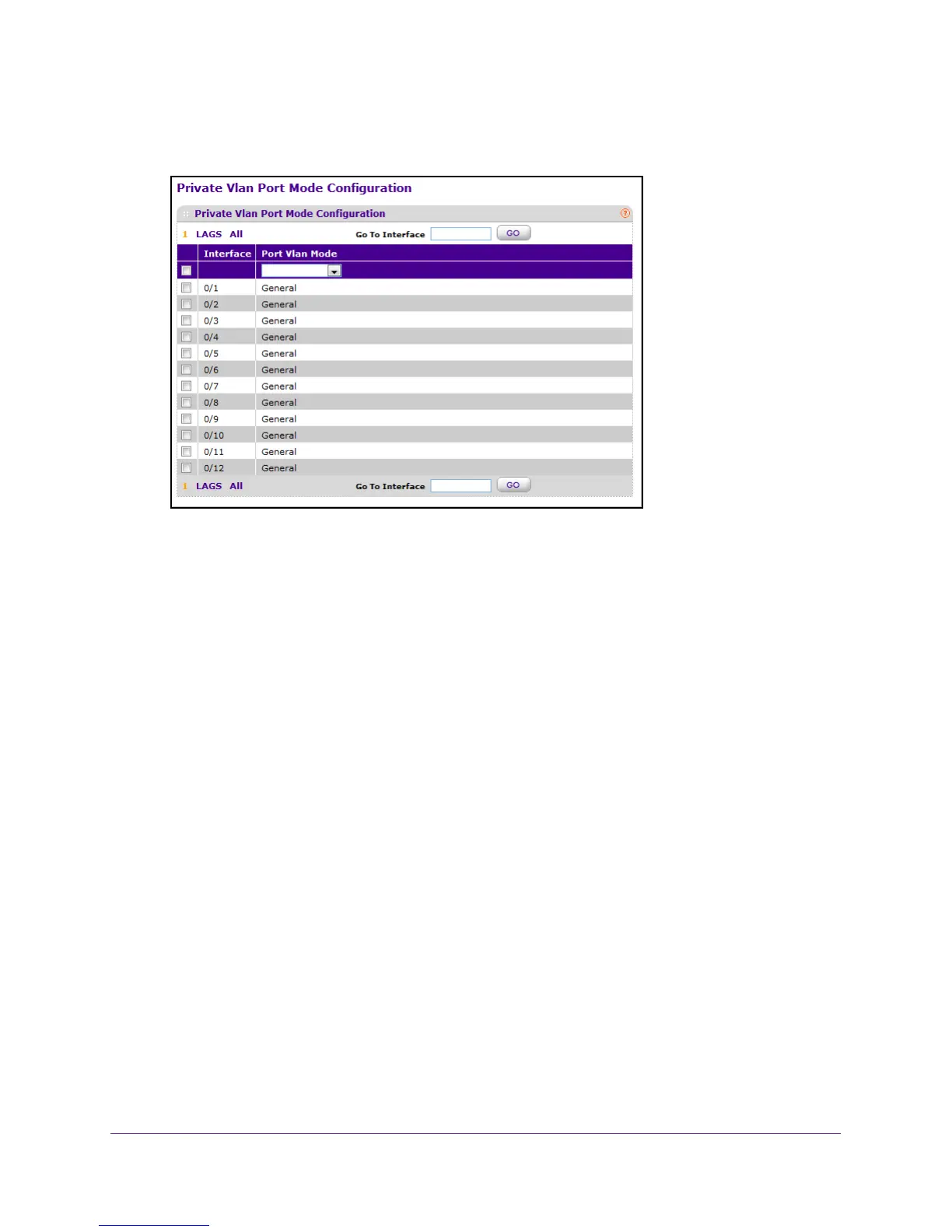

7. Select Security  Traffic Control > Private VLAN> Private VLAN Port Mode
Configuration.
8. Use the Interface check boxes to select the physical or LAG interface.
9. Use Switch Port Mode to select the switch port mode.
The factory default is 'General'.
• General: Sets port in General mode.
• Host: Sets port in Host mode. Used for private VLAN configuration.
• Promiscuous: Sets port in Promiscuous mode. Used for private VLAN configuration.
10. Click the APPL
Y button.
The changes are applied to the system. Configuration changes take effect immediately.
Configure Private VLAN Host Interface
 To configure a private VLAN host interface:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.

NETGEAR M4100 Series Specifications

General

Model	M4100 Series
Switch Type	Managed
Form Factor	Rack-mountable
Port Configuration	24 or 48 ports
Ethernet Ports	10/100/1000 Mbps
PoE Support	Available on some models (PoE and PoE+)
Layer	Layer 2/Layer 3
Management	Web-based, CLI, SNMP
VLAN Support	Yes
QoS	Yes
Stackable	Yes
Ports	24 or 48
Jumbo Frame Support	Yes
Security Features	ACL, 802.1X, RADIUS, TACACS+
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-20° to 70° C (-4° to 158° F)
Power Supply	Internal power supply
