NETGEAR M4100 Series User Manual

Monitoring the System
378
M4100 Series Managed Switch

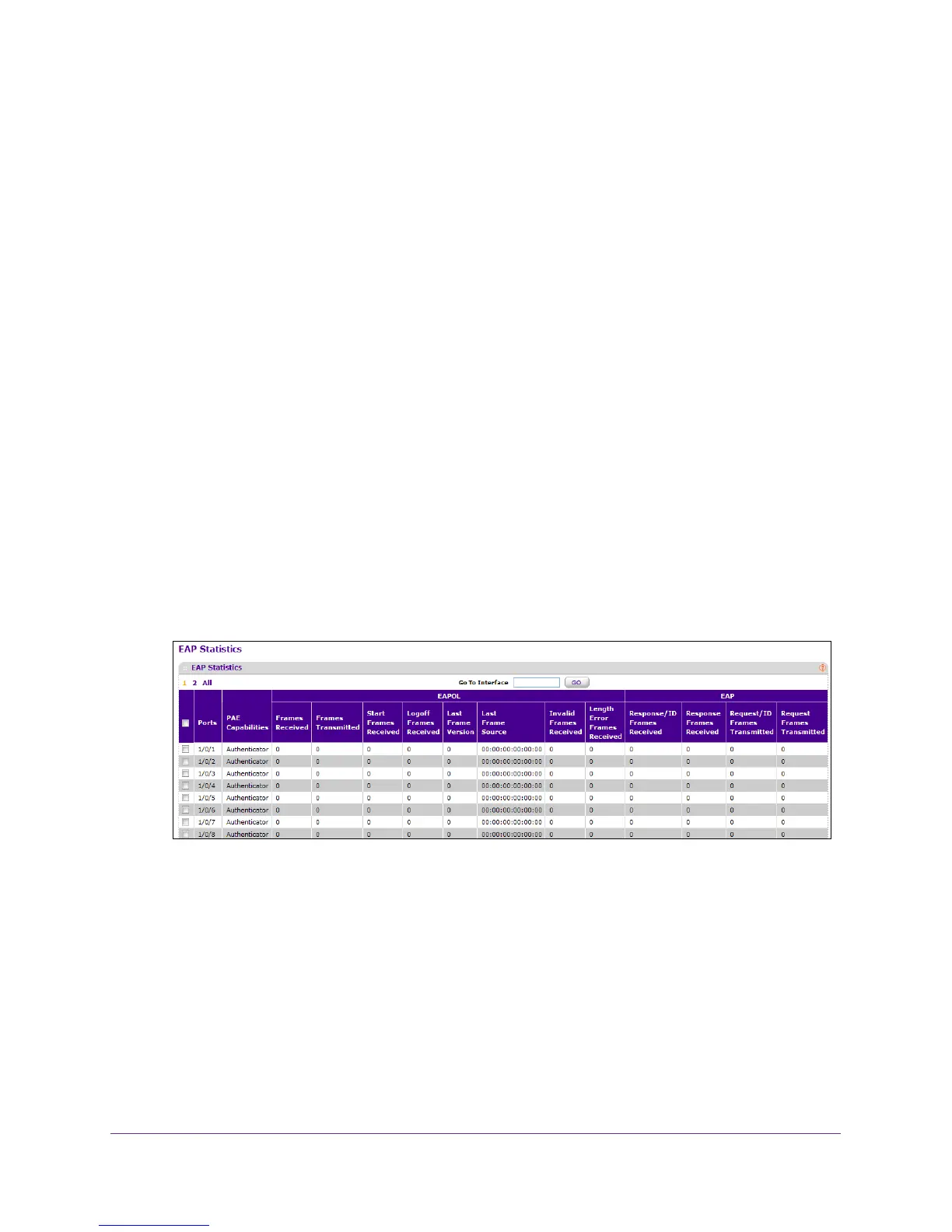

View EAP Statistics
You can view information about EAP packets received on a specific port.
 To view EAP statistics:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select Monitoring
 Ports > EAP Statistics.
8. Use the buttons at the bottom of the screen to perform the following actions:
• T
o clear all the EAP counters for all ports on the switch, select the check box in the
row heading and click the CLEAR button.
• T
o clear the counters for a specific port, select the check box associated with the port
and click the CLEAR button.
• T
o refresh the data on the screen and display the most current statistics, click the
REFRESH button.

NETGEAR M4100 Series Specifications

General

Model	M4100 Series
Switch Type	Managed
Form Factor	Rack-mountable
Port Configuration	24 or 48 ports
Ethernet Ports	10/100/1000 Mbps
PoE Support	Available on some models (PoE and PoE+)
Layer	Layer 2/Layer 3
Management	Web-based, CLI, SNMP
VLAN Support	Yes
QoS	Yes
Stackable	Yes
Ports	24 or 48
Jumbo Frame Support	Yes
Security Features	ACL, 802.1X, RADIUS, TACACS+
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-20° to 70° C (-4° to 158° F)
Power Supply	Internal power supply
