NETGEAR M4100 Series User Manual

Monitoring the System
385
M4100 Series Managed Switch
• Notice (5). Normal but significant conditions
• Informational (6). Informational messages
• Debug (7). Debug-level messages
Configure the Syslog
 To configure the syslog:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

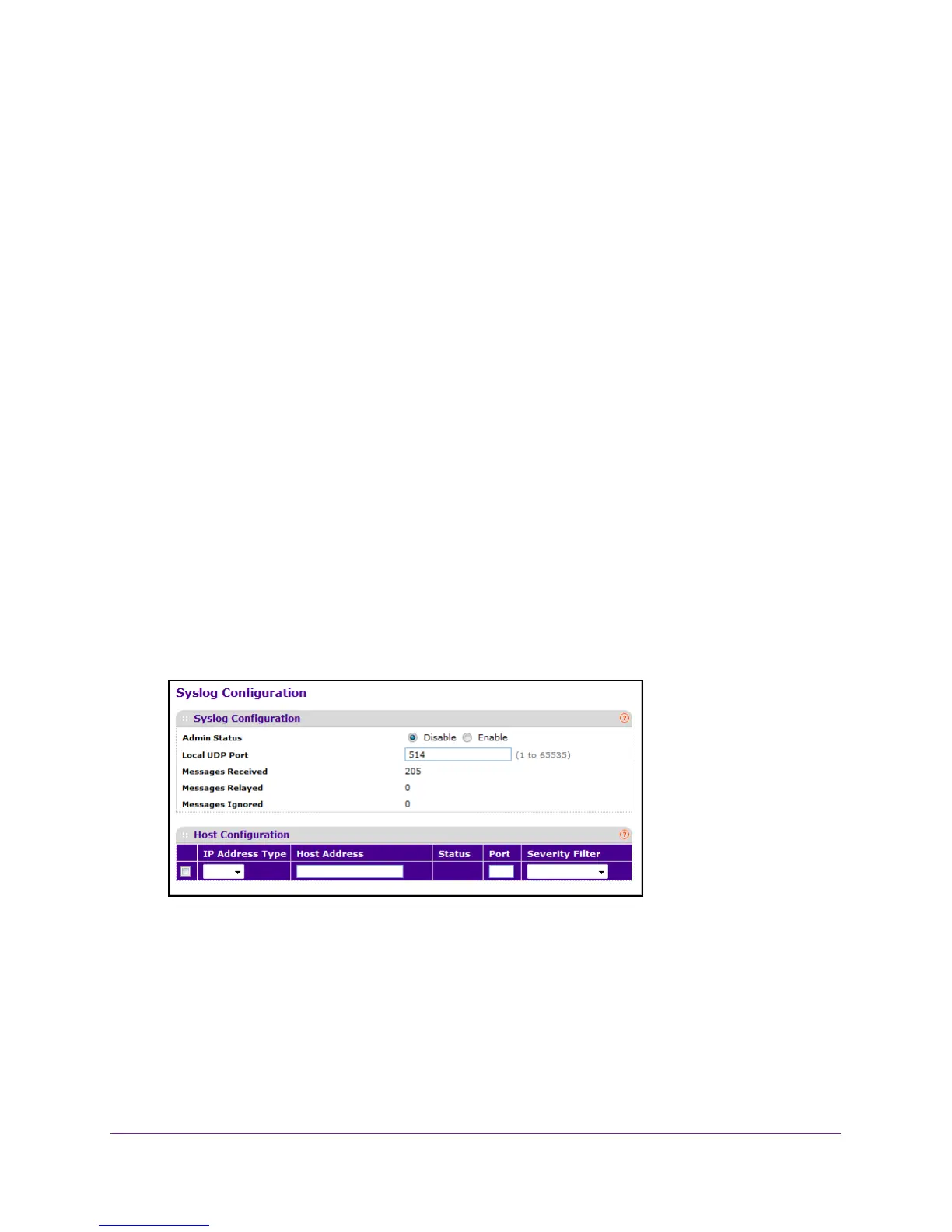

7. Select Monitoring
 Logs > Sys Log Configuration.
8. To enable the log, select the Admin Status Enable radio button.
When the syslog configuration is enabled, messages are sent to configured
collector/relays using the values configured for each collector/relay
.
Setting the Admin Status to Disable stops logging to all syslog hosts. No messages are
sent to any collector or relay.
9. In the Local UDP Port field, type the local port number on the local host from which syslog
messages are sent.

NETGEAR M4100 Series Specifications

General

Model	M4100 Series
Switch Type	Managed
Form Factor	Rack-mountable
Port Configuration	24 or 48 ports
Ethernet Ports	10/100/1000 Mbps
PoE Support	Available on some models (PoE and PoE+)
Layer	Layer 2/Layer 3
Management	Web-based, CLI, SNMP
VLAN Support	Yes
QoS	Yes
Stackable	Yes
Ports	24 or 48
Jumbo Frame Support	Yes
Security Features	ACL, 802.1X, RADIUS, TACACS+
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-20° to 70° C (-4° to 158° F)
Power Supply	Internal power supply
