Manage Device Security
271
M4100 Series Managed Switch
Configure a RADIUS Accounting Server
You can view and configure various settings for one or more RADIUS accounting servers on
the network.
To configure a RADIUS accounting server:,
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

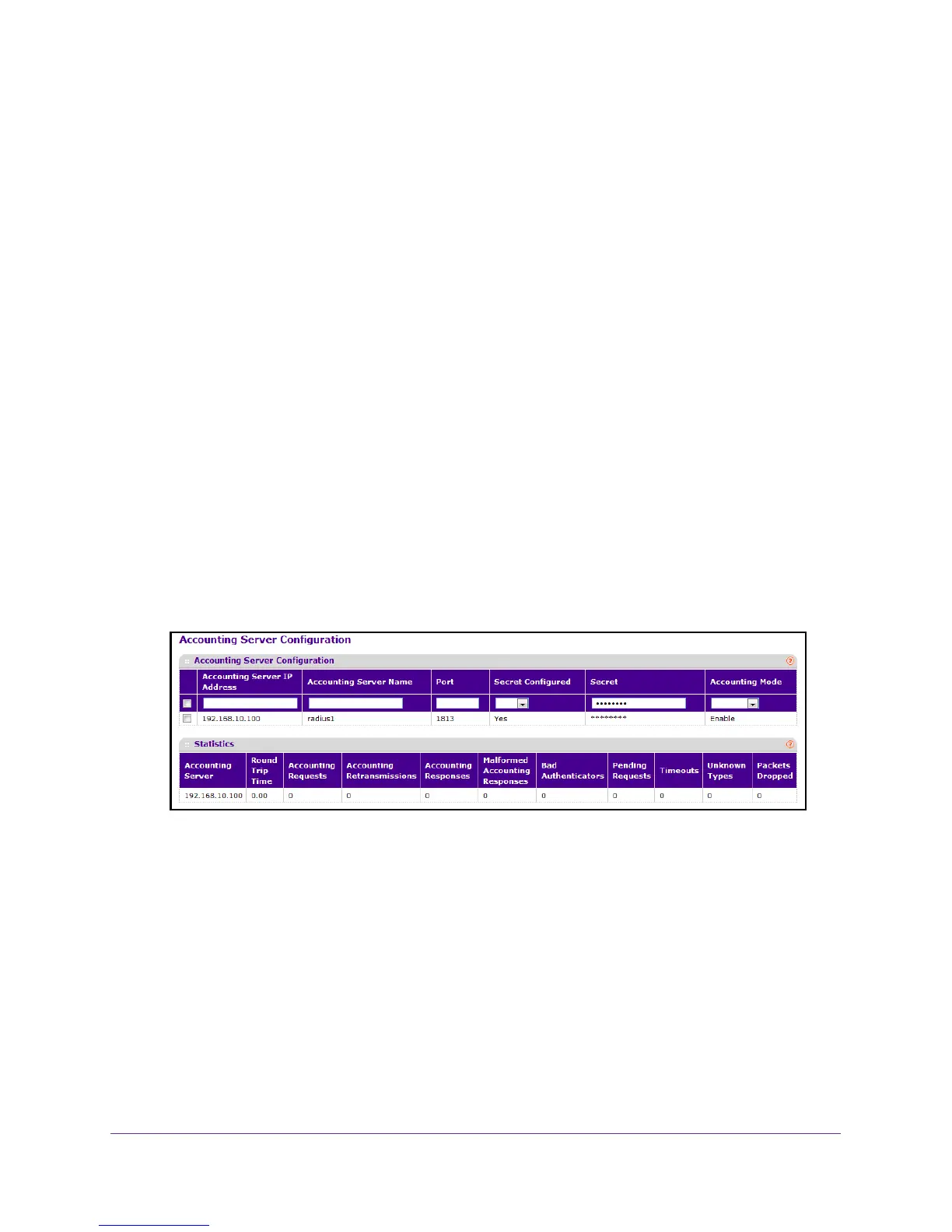

7. Select Security
Management Security RADIUS Accounting Server Configuration.
8. In the Accounting Server IP Address field, specify the IP address of the RADIUS
accounting server to add.
9. In the Accounting Server Name field, enter the name of the accounting server to add.
10. In the Port field, specify the UDP port number the server uses to verify the RADIUS
accounting server
.
The valid range is 0–65535. If the user has read-only access, the value is displayed but
cannot be changed.
11. From the Secret Configured menu, select Ye
s to add a RADIUS secret in the next field.
After you add the RADIUS accounting server, this field indicates whether the shared
secret for this server was configured.
12. In the Secret field, type the shared secret to use with the specified accounting server
.
