NETGEAR M4100 Series User Manual

Monitoring the System
395
M4100 Series Managed Switch
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

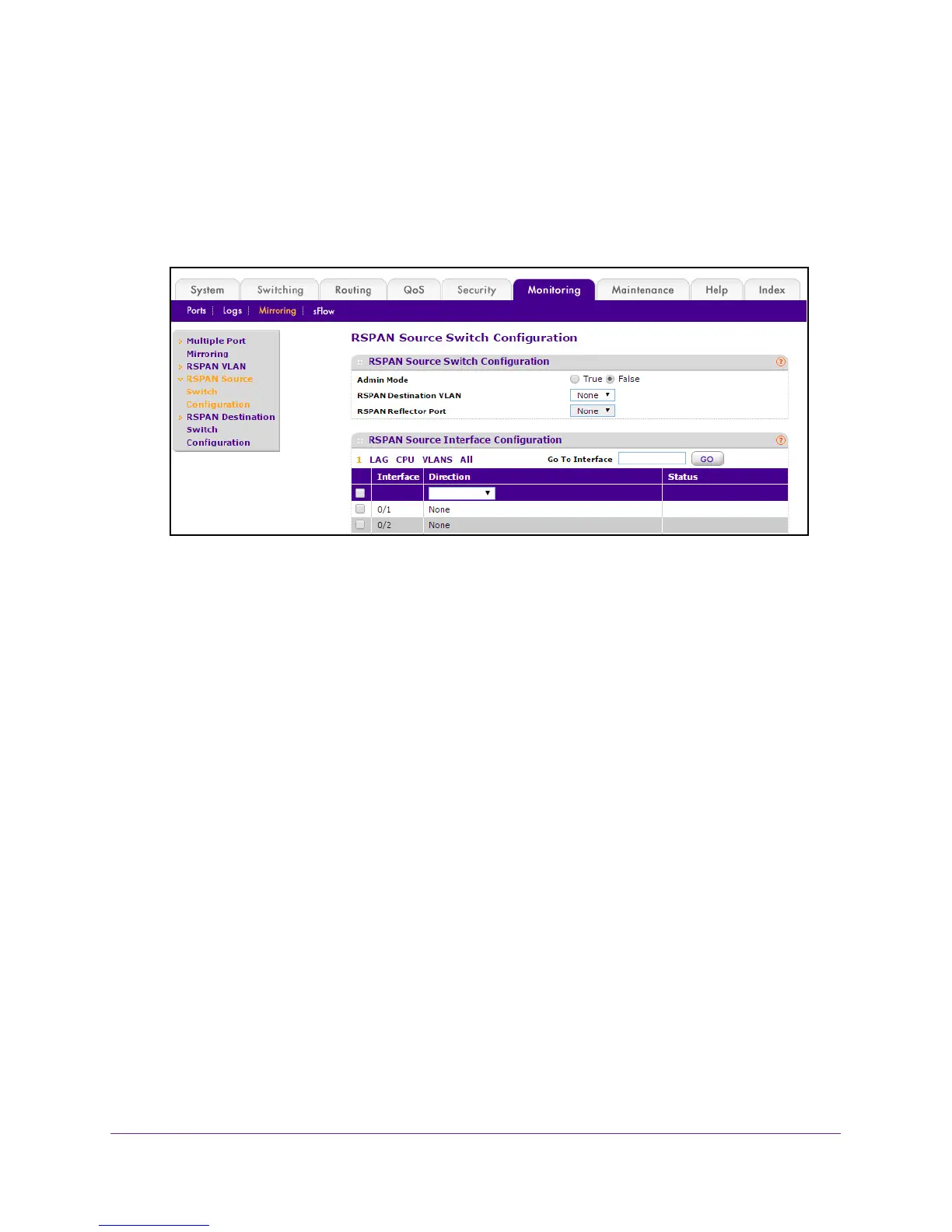

7. Select Monitoring > Mirroring > RSP
AN Source Switch Configuration.
8. Select the Admin Mode True (enable) or False (disable) radio button for the selected
session.
When a particular session is enabled, any traffic entering or leaving the source ports of
the session is copied (mirrored) onto the corresponding destination port or a remote
switched port analyzer (RSP
AN) VLAN. By default, Admin Mode is False (disabled).
9. In the RSP
AN Destination VLAN list, select a VLAN ID.
10. In the RSP
AN Reflector Port list, select a reflector port interface.
11. Click the APPL
Y button.
Your changes take effect immediately.
Configure an RSPAN Source Interface
 To configure an RSPAN source interface:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.

NETGEAR M4100 Series Specifications

General

Model	M4100 Series
Switch Type	Managed
Form Factor	Rack-mountable
Port Configuration	24 or 48 ports
Ethernet Ports	10/100/1000 Mbps
PoE Support	Available on some models (PoE and PoE+)
Layer	Layer 2/Layer 3
Management	Web-based, CLI, SNMP
VLAN Support	Yes
QoS	Yes
Stackable	Yes
Ports	24 or 48
Jumbo Frame Support	Yes
Security Features	ACL, 802.1X, RADIUS, TACACS+
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-20° to 70° C (-4° to 158° F)
Power Supply	Internal power supply
