Monitoring the System
396
M4100 Series Managed Switch
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

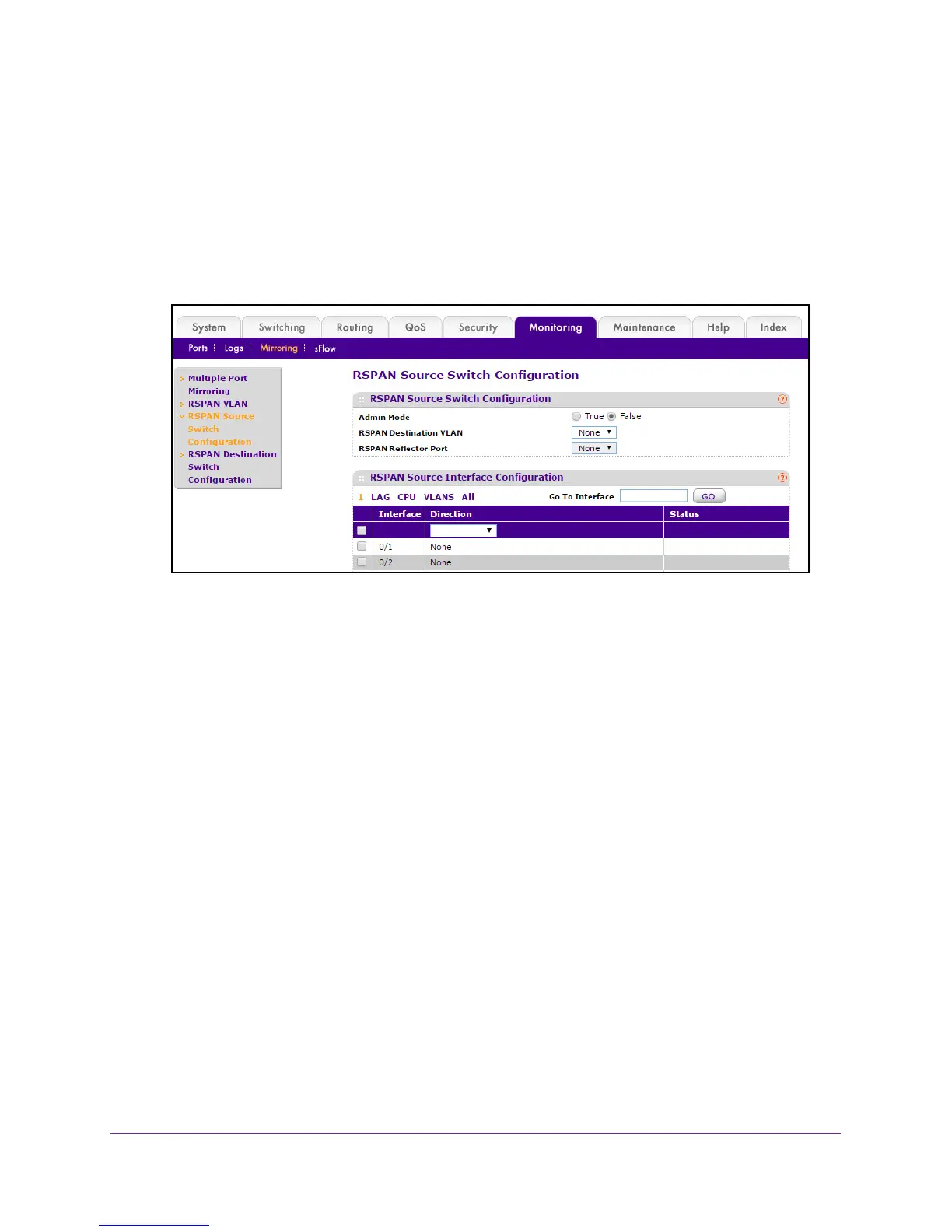

7. Select Monitoring > Mirroring > RSP
AN Source Switch Configuration.
8. Select items in this screen using one of the following methods:
• Select a Unit ID (1, 2, 3, and so on) to display the physical ports of the selected
unit.
• Select LAG to display a list of LAGs only
.
• Select CPU to display a list of CPUs only
.
• Select VLANs to display a list of available VLANs.
• Select All to display a list of all physical ports, LAG, CPU, and VLANs.
• Select a specific interface by entering its number in the Go T
o Interface field.
9. In the Interface list, select an interface to specify the configured port(s) as mirrored port(s).
Traffic of the configured port(s) is sent to the probe port.
10. In the Direction list, select a value to specify the direction of the traf
fic to be mirrored from
the configured mirrored port(s).
If the value is not configured, None is displayed. The default value is None.
• None — The value is not configured.
• Tx and Rx — Monitor transmitted and received packets.
• Tx — Monitor transmitted packets only.
• Rx — Monitor received packets only.
Note: For VLANs only, the Tx and Rx and None options are applicable.
