12. Use Destination Port Members to list the ports to be included in the outbound filter.
Packets with the MAC address and VLAN ID you selected is transmitted only out of ports
that are in the list. Destination ports can be included only in the multicast filter
.
13. To delete a configured MAC filter, select it from the menu, and then click the DELETE
button.
14. Click the APPL
Y button.
Your settings are applied to the system.
View the MAC Filter Summary
You can view the MAC filters that are configured on the system.
To view the MAC filter summary:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select Security
Traffic Control > MAC Filter MAC Filter Summary.

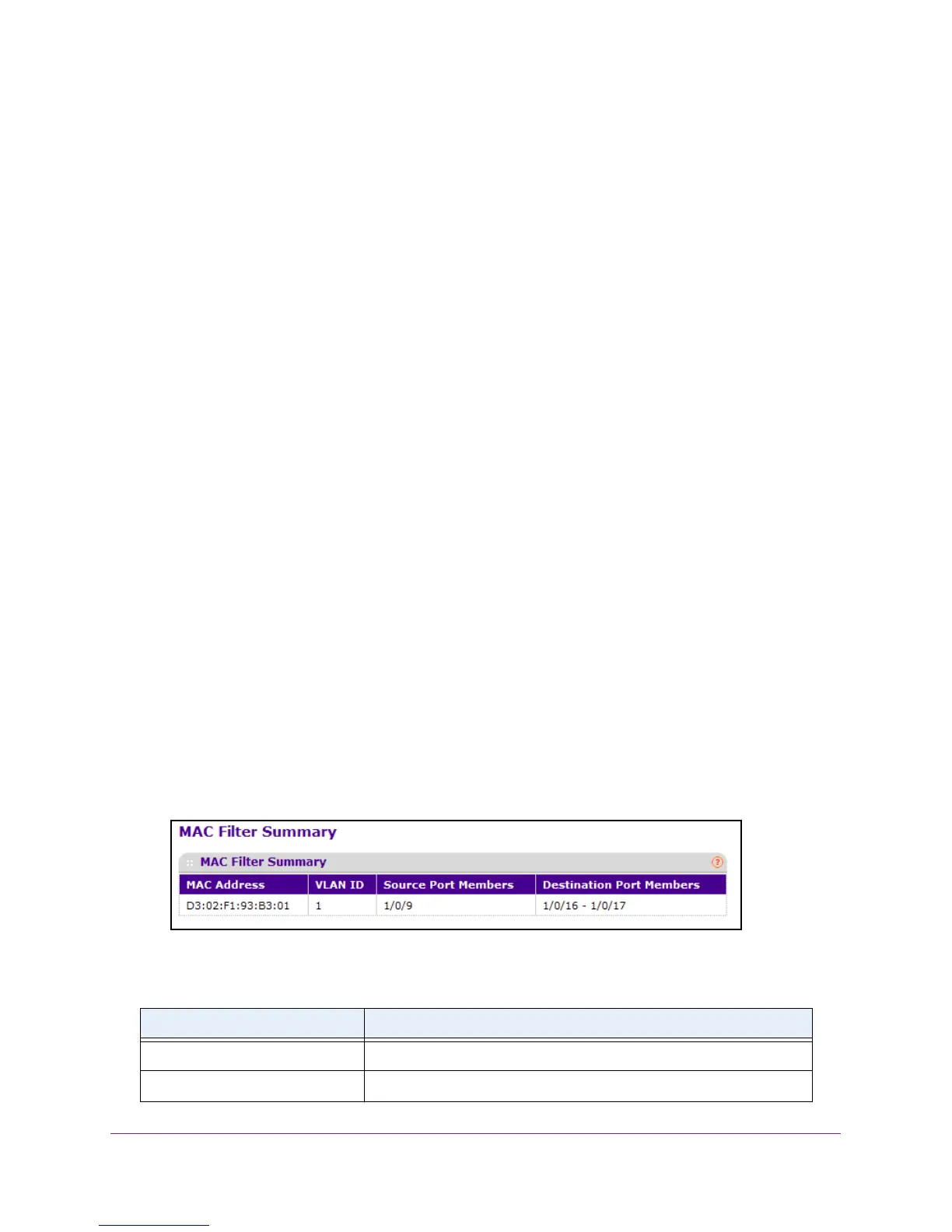

The following table describes the information displayed on the screen:
Table 85. MAC Filter Summary User Manual
Field Description
MAC Address The MAC address of the filter in the format 00:01:1A:B2:53:4D.
VLAN ID The VLAN ID associated with the filter.
