NETGEAR M4100 Series User Manual

Configure Quality of Service
235
M4100 Series Managed Switch
Configure CoS
 To configure CoS:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

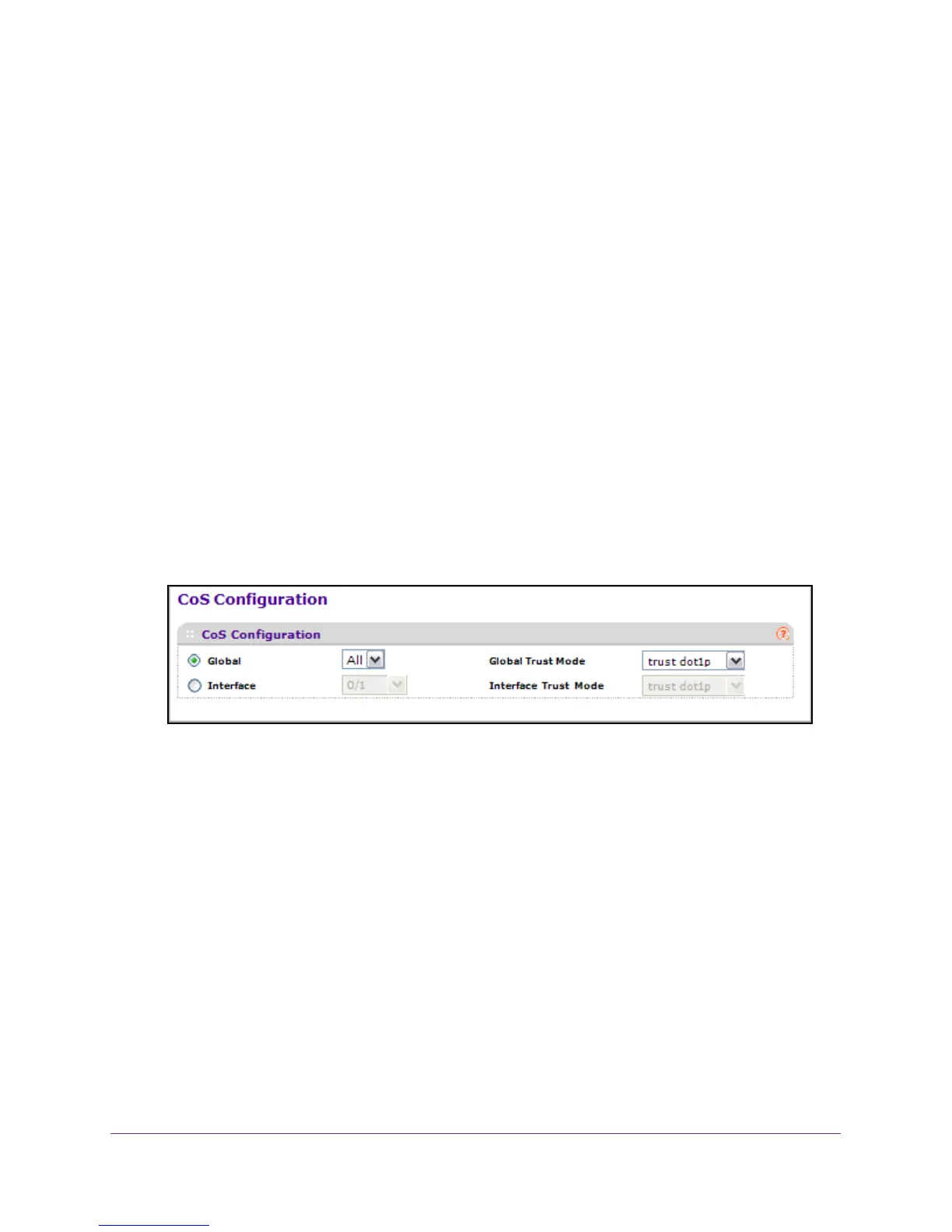

7. Select QoS
 CoS  Basic  CoS Configuration.
8. Use Global to specify all CoS configurable interfaces. The option Global represents the
most recent global configuration settings.
9. Use Interface to specify CoS configuration settings based on the interface.
10. Use Global T
rust Mode to specify whether to trust a particular packet marking at ingress.
Global Trust Mode can be only one of the following:
• untrusted
• trust dot1p
• trust ip-dscp
The default value is trust dot1p.
11. Use Interface T
rust Mode to specify whether to trust a particular packet marking at ingress.
Interface Trust Mode can only be only one of the following:
• untrusted
• trust dot1p
• trust ip-dscp
