Manage Device Security
275
M4100 Series Managed Switch
13. To add a new server to the switch, click the ADD button.
This button is available only to users with read/write permission.
14. T
o delete the selected server from the configuration, click the DELETE button.
15. Click the APPL
Y button.
Your settings are saved.

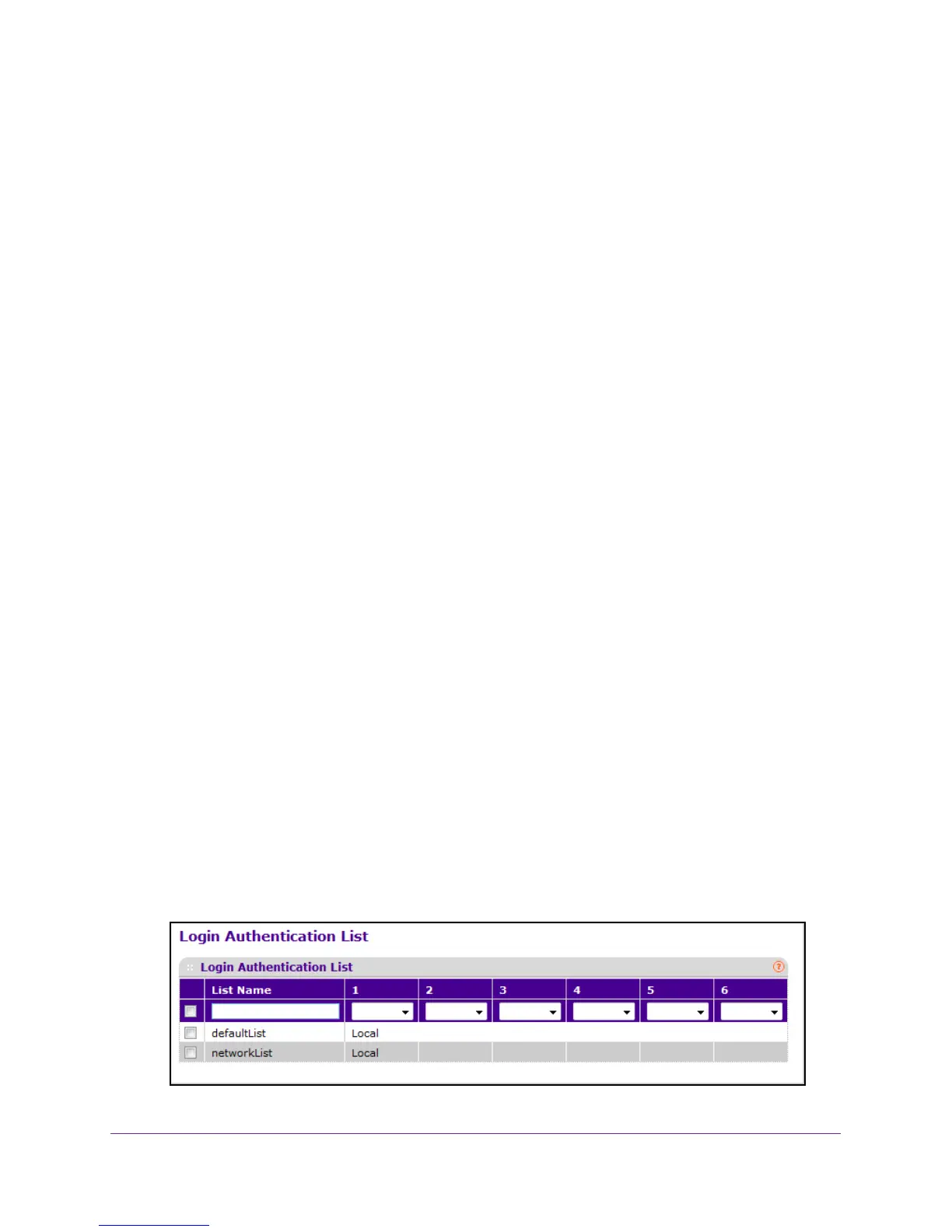

Set Up a Login Authentication List
You can configure login lists. A login list specifies the authentication method(s) to be used to
validate switch or port access for the users associated with the list. The preconfigured users,
admin and guest, are assigned to a preconfigured list named defaultList, which you cannot
delete. All newly created users are also assigned to the defaultList until you specifically
assign them to a different list.
Two default lists are present: DefaultList and networkList.
To set up a login authentication list:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select Security > Management Security >
Authentication List > Login Authentication
List.
