Manage Device Security
361
M4100 Series Managed Switch
Configure an IPv6 ACL
An IPv6 ACL consists of a set of rules that are matched sequentially against a packet. When
a packet meets the match criteria of a rule, the specified rule action (Permit/Deny) is taken
and the additional rules are not checked for a match. You can specify or create rules for the
IP ACL.
To configure an Pv6 ACL:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.
7. Select Security
ACL > Advanced IPv6 ACL.

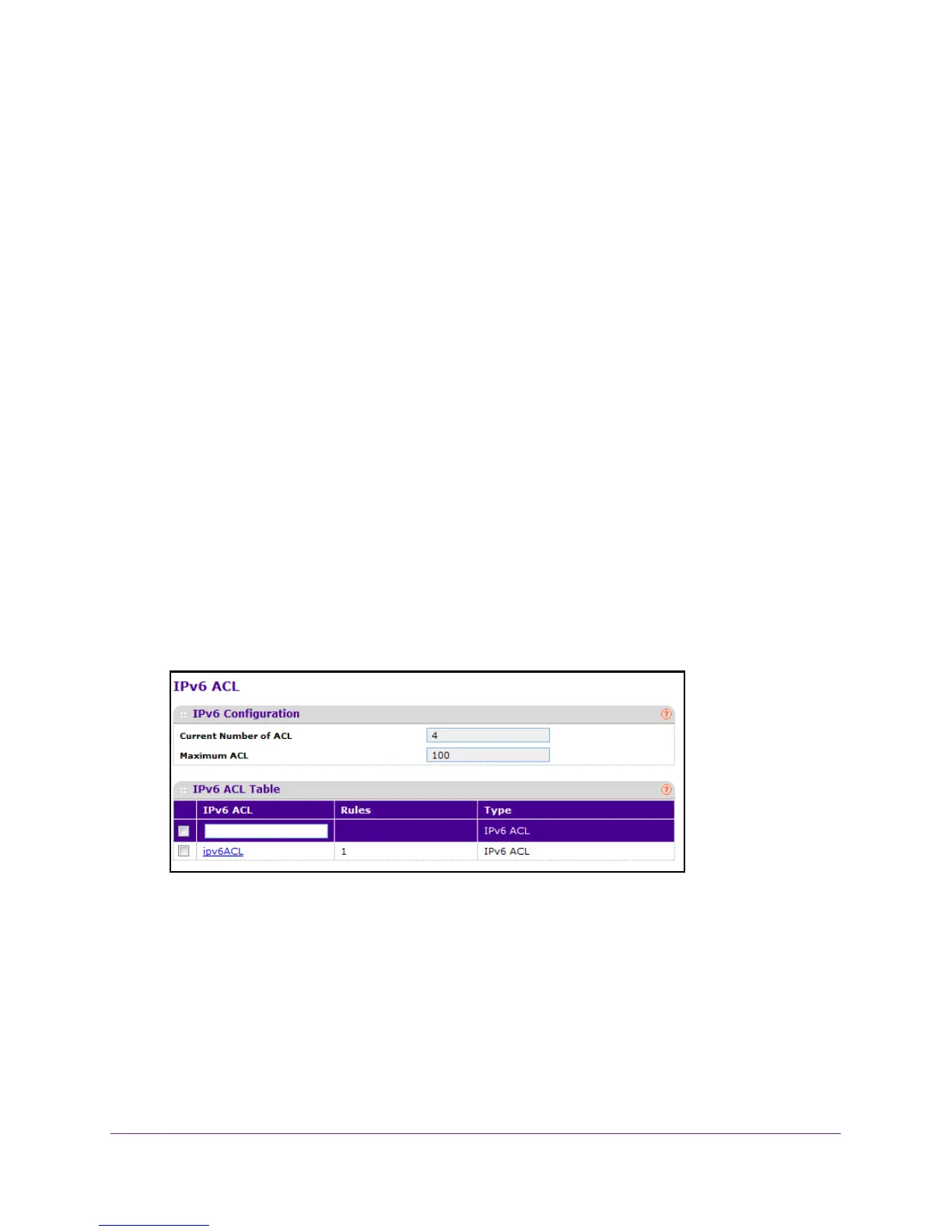

8. IPv6 ACL is the IPv6 ACL ID or IPv6 ACL name, which is dependent on the IPv6 ACL type.
I IPv6 ACL Name string includes alphanumeric characters only.
The name must start with an alphabetic character.
9. T
o add a new IPv6 ACL, click the ADD button.
10. T
o remove the currently selected IPv6 ACL from the switch configuration, click the DELETE
button.
