Configure the Private VLAN Association
 To configure the private VLAN association:
1. Prepare your computer with a static IP address in the 169.254.100.0 subnet, for
example, 169.254.100.201.
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

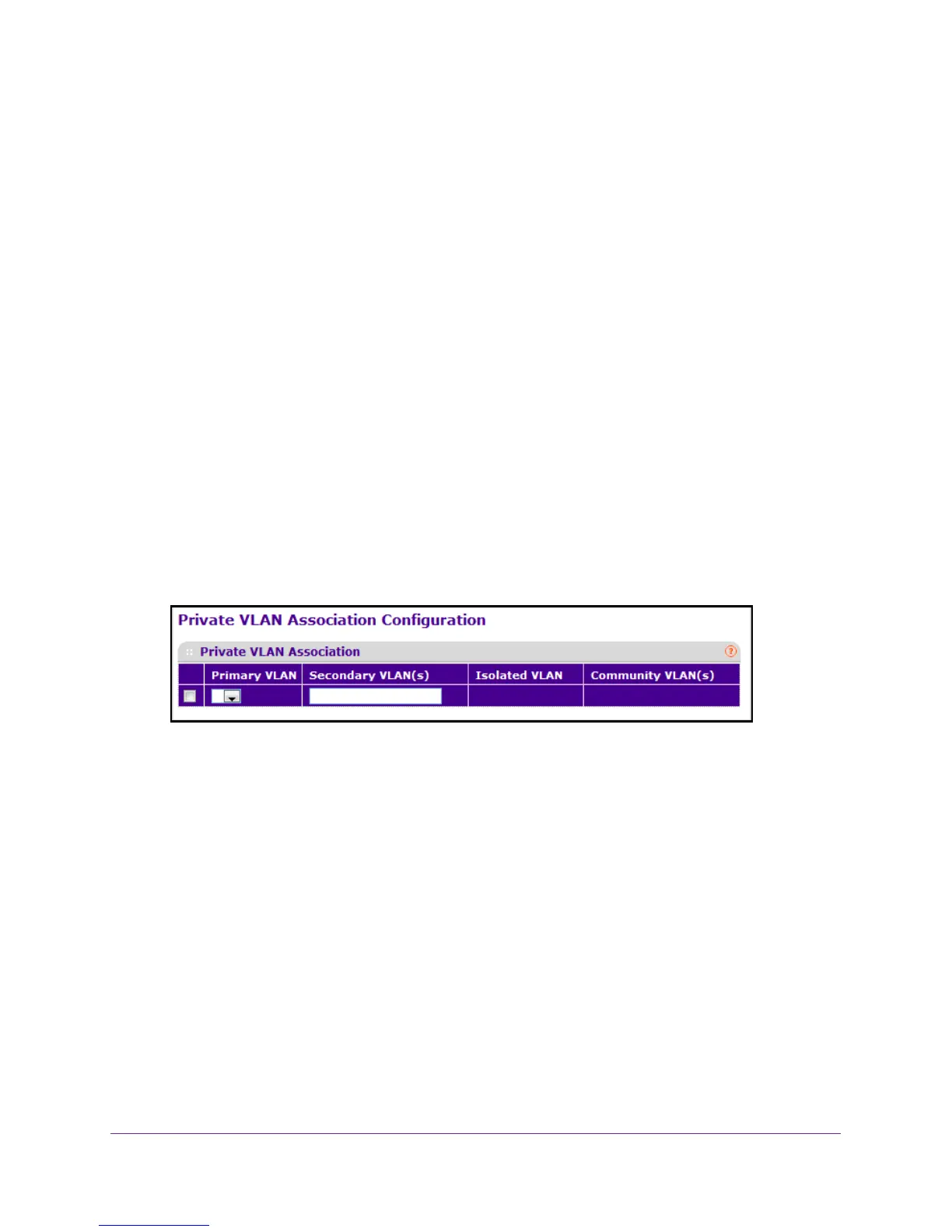

7. Select Security
 Traffic Control > Private VLAN> Private VLAN Association
Configuration.
8. Use Primary VLAN to select the primary VLAN ID of the domain.
This is used to associate secondary VLANs to the domain.
9. Use Secondary VLAN(s) to display all the statically created VLANs (excluding the primary
and default VLANs).
This field is used to associate VLANs to the selected primary VLAN.
10. T
o delete the IP subnet-based VLAN from the switch, click the DELETE button.
11. Click the APPL
Y button.
Your changes are applied to the system. Configuration changes take effect immediately.
