Manage Device Security
311
M4100 Series Managed Switch
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

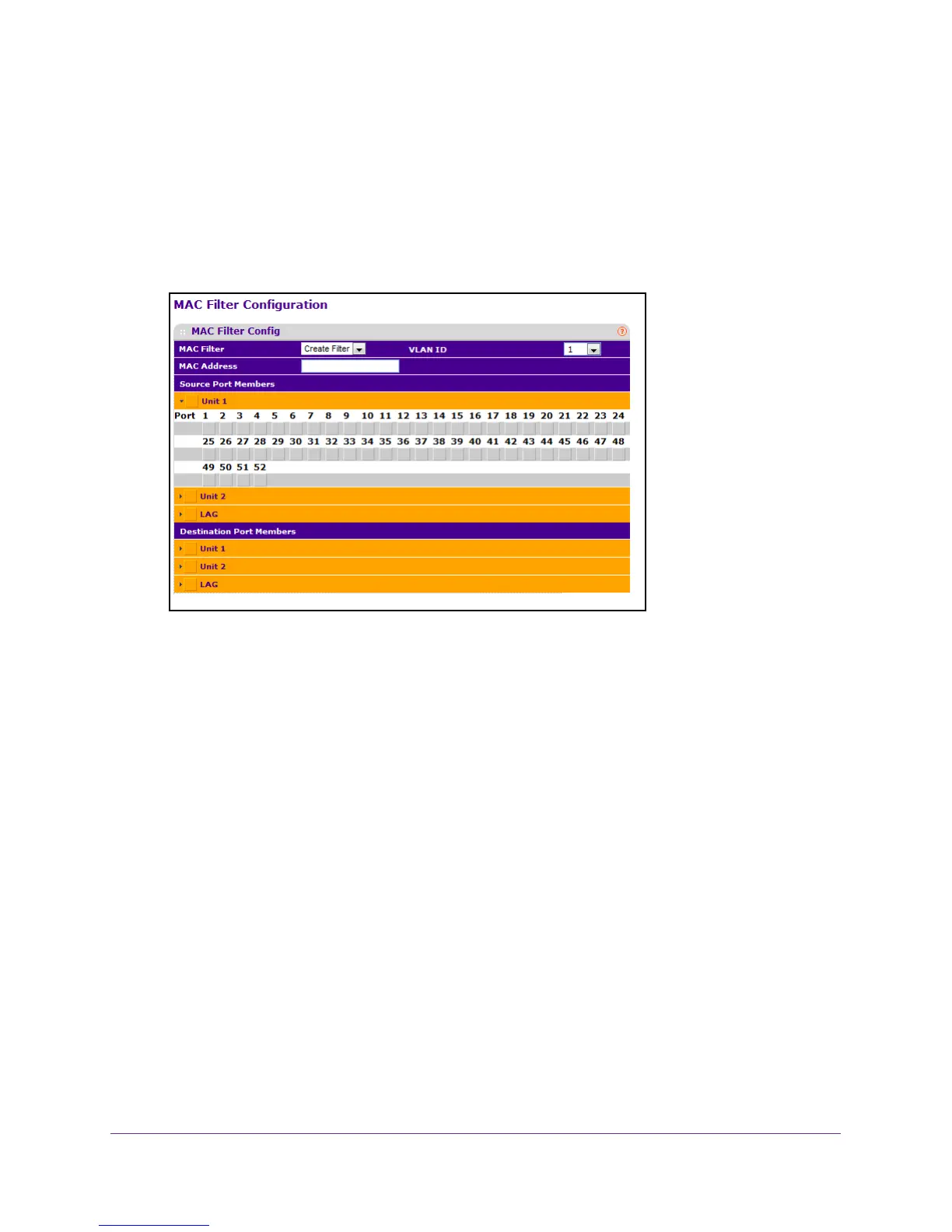

7. Select Security
Traffic Control > MAC Filter MAC Filter Configuration.
8. In the MAC Filter list, select Create Filter.
This is the list of MAC address and VLAN ID pairings for all configured filters. To change
the port mask(s) for an existing filter
, select the entry to change. To add a new filter, select
Create Filter from the top of the list.
9. From the VLAN ID list, select the VLAN to use with the MAC address to fully identify packets
you want filtered.
You can change this field only when the Create Filter option is selected from the MAC
Filter menu.
10. In the MAC Address list, specify the MAC address of the filter in the format
00:01:1A:B2:53:4D.
You can change this field when you select the Create Filter option. You cannot define
filters for the following MAC addresses:
• 00:00:00:00:00:00
• 01:80:C2:00:00:00 to 01:80:C2:00:00:0F
• 01:80:C2:00:00:20 to 01:80:C2:00:00:21
• FF:FF:FF:FF:FF:FF
11. Use Source Port Members to list the ports you want included in the inbound filter
.
If a packet with the MAC address and VLAN ID you selected is received on a port that is
not in the list, it is dropped.
