Configure Switching Information
126
M4100 Series Managed Switch
6. Click the Login button.
The web management interface menu displays.

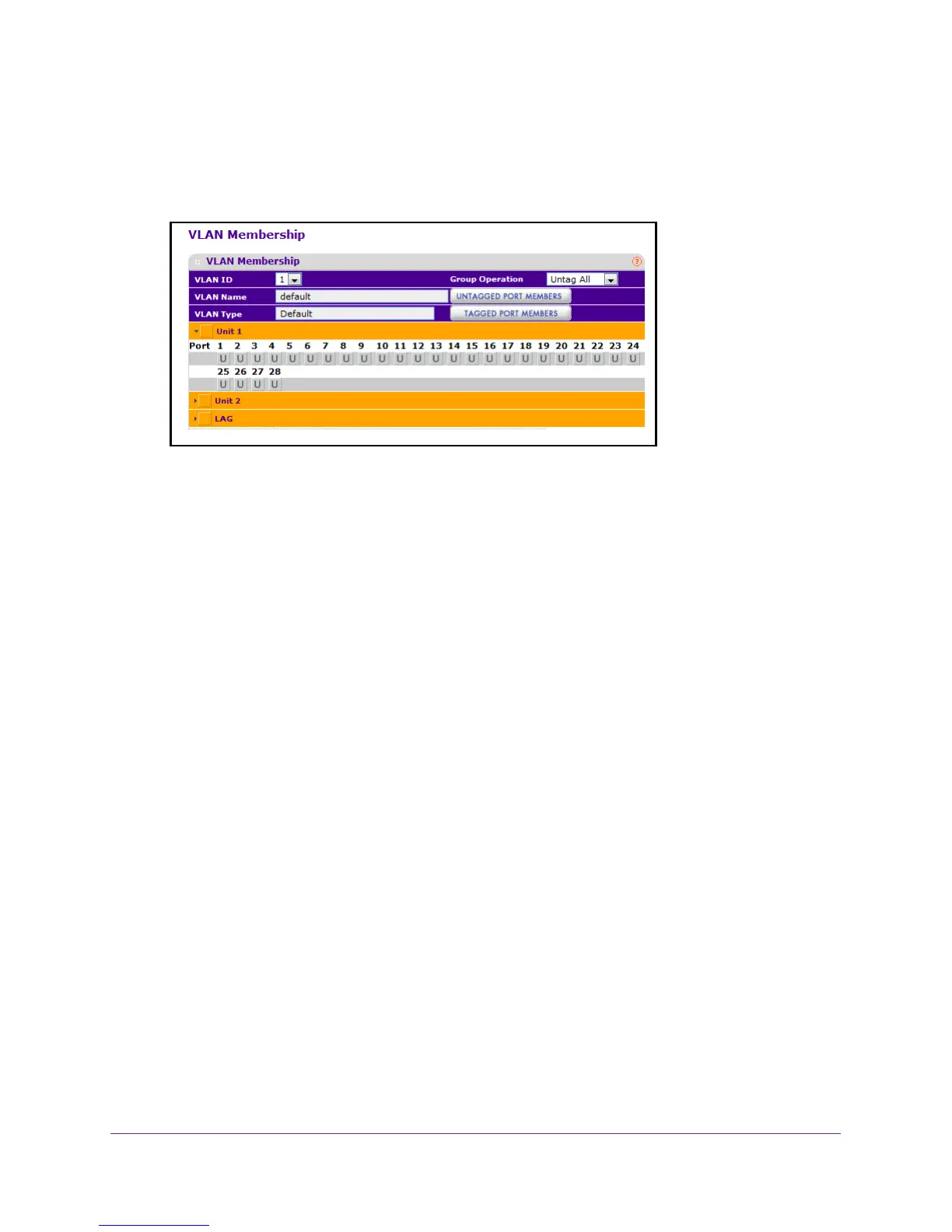

7. Select Switching
 VLAN  Advanced  VLAN Membership.
8. Use VLAN ID to select the VLAN ID.
9. Use Group Operation to select all the ports and configure them:
• Untag All. Select all the ports on which all frames transmitted for this VLAN are
untagged. All the ports are included in the VLAN.
• T
ag All. Select the ports on which all frames transmitted for this VLAN are tagged. All
the ports are included in the VLAN.
• Remove All. Select all the ports that can be dynamically registered in this VLAN
through GVRP
. This selection excludes all ports from the selected VLAN.
10. Use Port List to add the ports you selected to this VLAN.
Each port has three modes:
• T (T
agged). Select the ports on which all frames transmitted for this VLAN are tagged.
The ports that are selected are included in the VLAN.
• U (Untagged). Select the ports on which all frames transmitted for this VLAN are
untagged.
The ports that are selected are included in the VLAN.
• BLANK (Autodetect). Select the ports that can be dynamically registered in this VLAN
through GVRP
. This selection has the effect of excluding a port from the selected
VLAN.
