NETGEAR M4100 Series User Manual

Routing
232
M4100 Series Managed Switch

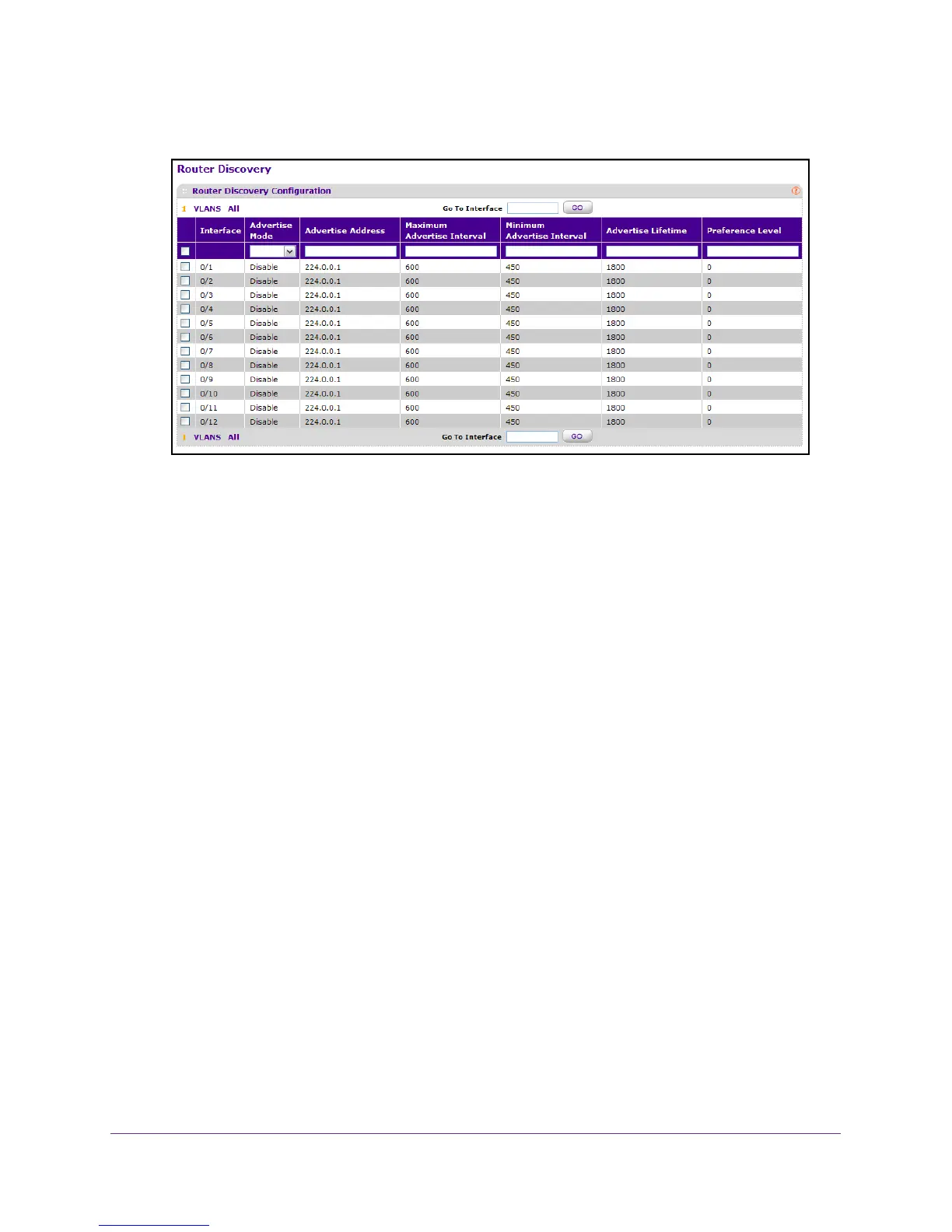

7. Select Routing Router Discovery.
8. Select the Interface check box for the router interface.
9. Use Advertise Mode to select Enable or Disable.
If you select Enable, router advertisements are transmitted from the selected interface.
10. Use Advertise Address to select Enable or Disable.
If you select Enable, router advertisements are transmitted from the selected interface.
11. Use Maximum Advertise
Interval to enter the maximum time (in seconds) allowed
between router advertisements sent from the interface.
12. Use Minimum Advertise
Interval to enter the minimum time (in seconds) allowed between
router advertisements sent from the interface.
The value must be in the range of 3 to 1800. The default value is 450.000000.
13. Use Advertise Lifetime to enter the value (in seconds) to be used as the lifetime field in
router advertisements sent from the interface.
This is the maximum length of time that the advertised addresses are to be considered as
valid router addresses by hosts.
14. Use Preference Level to specify the preference level of the router as a default router
relative to other routers on the same subnet.
Higher numbered addresses are preferred. You must enter an integer.
15. Click the APPL
Y button.
The updated configuration is sent to the switch.

NETGEAR M4100 Series Specifications

General

Model	M4100 Series
Switch Type	Managed
Form Factor	Rack-mountable
Port Configuration	24 or 48 ports
Ethernet Ports	10/100/1000 Mbps
PoE Support	Available on some models (PoE and PoE+)
Layer	Layer 2/Layer 3
Management	Web-based, CLI, SNMP
VLAN Support	Yes
QoS	Yes
Stackable	Yes
Ports	24 or 48
Jumbo Frame Support	Yes
Security Features	ACL, 802.1X, RADIUS, TACACS+
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-20° to 70° C (-4° to 158° F)
Power Supply	Internal power supply
