Configure Quality of Service
249
M4100 Series Managed Switch
7. Select QoS DiffServ Advanced Class Configuration.
8. Click the class name for an existing class.

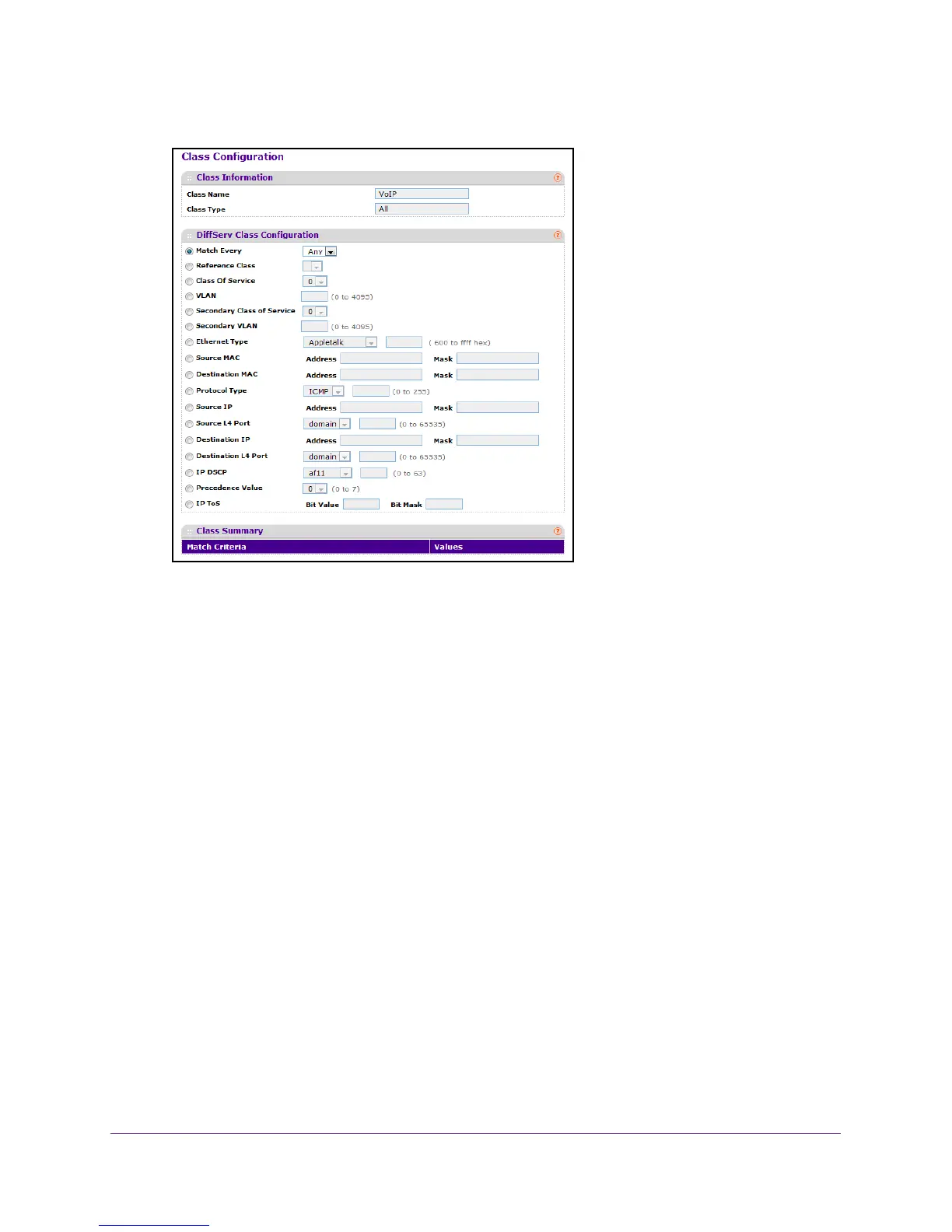

The class configuration fields display.
9. Class Name. Displays the name for the configured Dif
fServ class.
10. Class T
ype. Displays the DiffServ class type.
Options: All
You can select a class type only when you are creating a new class. After you create the
class, this becomes a nonconfigurable field displaying the class type that you selected.
11. Define the criteria to associate with a Dif
fServ class:
• Match Every.
This adds to the specified class definition a match condition whereby all
packets are considered to belong to the class.
• Reference Class.
This lists the class(es) that can be assigned as reference class(es)
to the current class.
• Class of Service.
This lists all the values for the class of service match criterion in the
range 0 to 7 from which one can be selected.
• VLAN.
This is a value in the range of 0 – 4095.
• Ethernet T
ype. This lists the keywords for the Ethertype from which one can be
selected.
• Source MAC
Address. This is the source MAC address specified as six 2-digit
hexadecimal numbers separated by colons.
• Source MAC Mask.
This is a bit mask in the same format as MAC address indicating
which parts of the source MAC address to use for matching against packet content.
