NETGEAR M4100 Series User Manual

Manage Device Security
296
M4100 Series Managed Switch
2. Connect an Ethernet cable from an Ethernet port on your computer to an Ethernet port on
the switch.
3. Launch a web browser
.
4. Enter the IP address of the switch in the web browser address field.
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

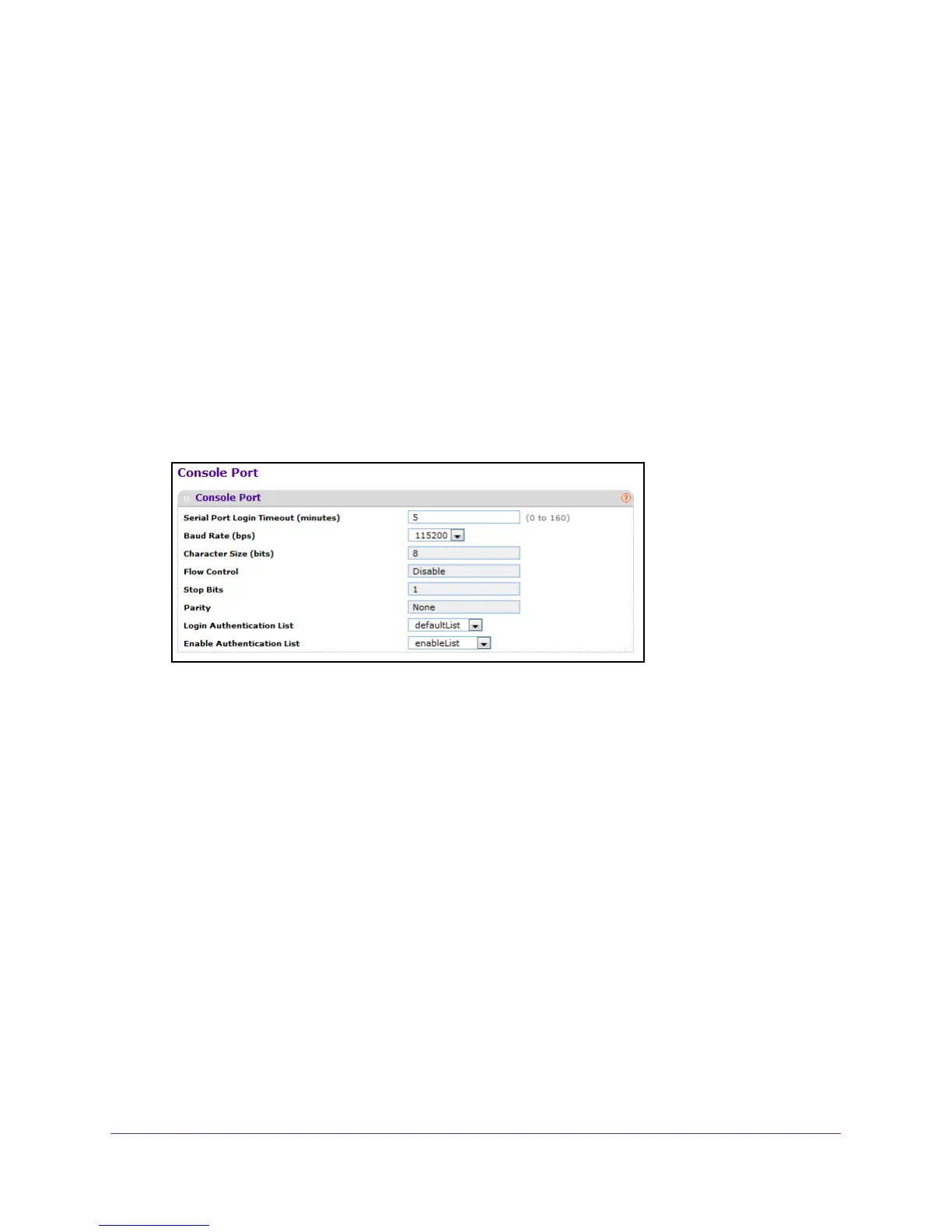

7. Select Security
 Access > Console Port.
8. In the Serial Port Login Timeout (minutes) field, enter a number between 0 and 160.
This specifies how many minutes of inactivity can occur on a serial port connection before
the switch closes the connection.
The factory default is 5. Entering 0 disables the
time-out.
9. In the Baud Rate (bps) menu, select the default baud rate for the serial port connection.
You can choose from 1200, 2400, 4800, 9600, 19200, 38400, 57600, and 115200 baud.
The factory default is 1
15200 baud.
10. In the Login Authentication List menu, specify which authentication list to use when you
log in through Telnet.
The default value is defaultList.
11. In the Enable Authentication
List menu, specify which authentication list to use when
going into the privileged EXEC mode.
The default value is enableList.

NETGEAR M4100 Series Specifications

General

Model	M4100 Series
Switch Type	Managed
Form Factor	Rack-mountable
Port Configuration	24 or 48 ports
Ethernet Ports	10/100/1000 Mbps
PoE Support	Available on some models (PoE and PoE+)
Layer	Layer 2/Layer 3
Management	Web-based, CLI, SNMP
VLAN Support	Yes
QoS	Yes
Stackable	Yes
Ports	24 or 48
Jumbo Frame Support	Yes
Security Features	ACL, 802.1X, RADIUS, TACACS+
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-20° to 70° C (-4° to 158° F)
Power Supply	Internal power supply
