NETGEAR M4100 Series User Manual

Manage Device Security
346
M4100 Series Managed Switch
The default IP address of the switch is 169.254.100.100.
The Login screen displays.
5. Enter the user name and password.
The default admin user name is admin and the default admin password is blank, that is,
do not enter a password.
6. Click the Login button.
The web management interface menu displays.

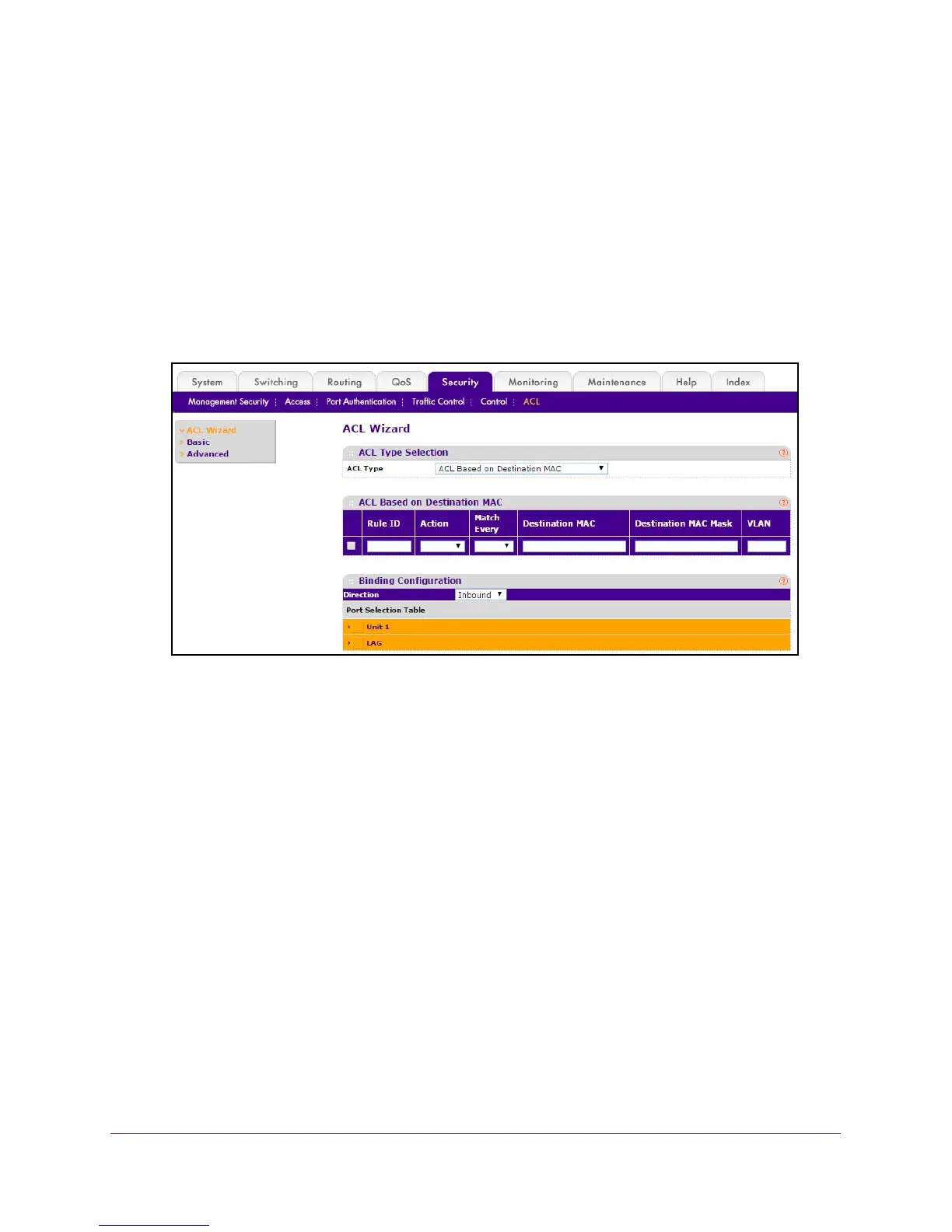

7. Select Security
 ACL > ACL Wizard.
8. Use ACL Type to specify the ACL type you are using to create the ACL.
You can select one type from 10 optional types:
• ACL Based on Destination MAC.
To create an ACL based on the destination MAC
address, destination MAC mask, and VLAN.
• ACL Based on Source MAC.
To create an ACL based on the source MAC address,
source MAC mask, and VLAN.
• ACL Based on Destination IPv4.
To create an ACL based on the destination IPv4
address and IPv4 address mask.
• ACL Based on Source IPv4.
To create an ACL based on the source IPv4 address
and IPv4 address mask.
• ACL Based on Destination IPv6.
To create an ACL based on the destination IPv6
prefix and IPv6 prefix length.
• ACL Based on Source IPv6. T
o create an ACL based on the source IPv6 prefix and
IPv6 prefix length.
• ACL Based on Destination IPv4 L4 Port.
To create an ACL based on the
destination IPv4 Layer4 port number.
• ACL Based on Source IPv4 L4 Port.
To create an ACL based on the source IPv4
Layer 4 port number.

NETGEAR M4100 Series Specifications

General

Model	M4100 Series
Switch Type	Managed
Form Factor	Rack-mountable
Port Configuration	24 or 48 ports
Ethernet Ports	10/100/1000 Mbps
PoE Support	Available on some models (PoE and PoE+)
Layer	Layer 2/Layer 3
Management	Web-based, CLI, SNMP
VLAN Support	Yes
QoS	Yes
Stackable	Yes
Ports	24 or 48
Jumbo Frame Support	Yes
Security Features	ACL, 802.1X, RADIUS, TACACS+
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-20° to 70° C (-4° to 158° F)
Power Supply	Internal power supply
