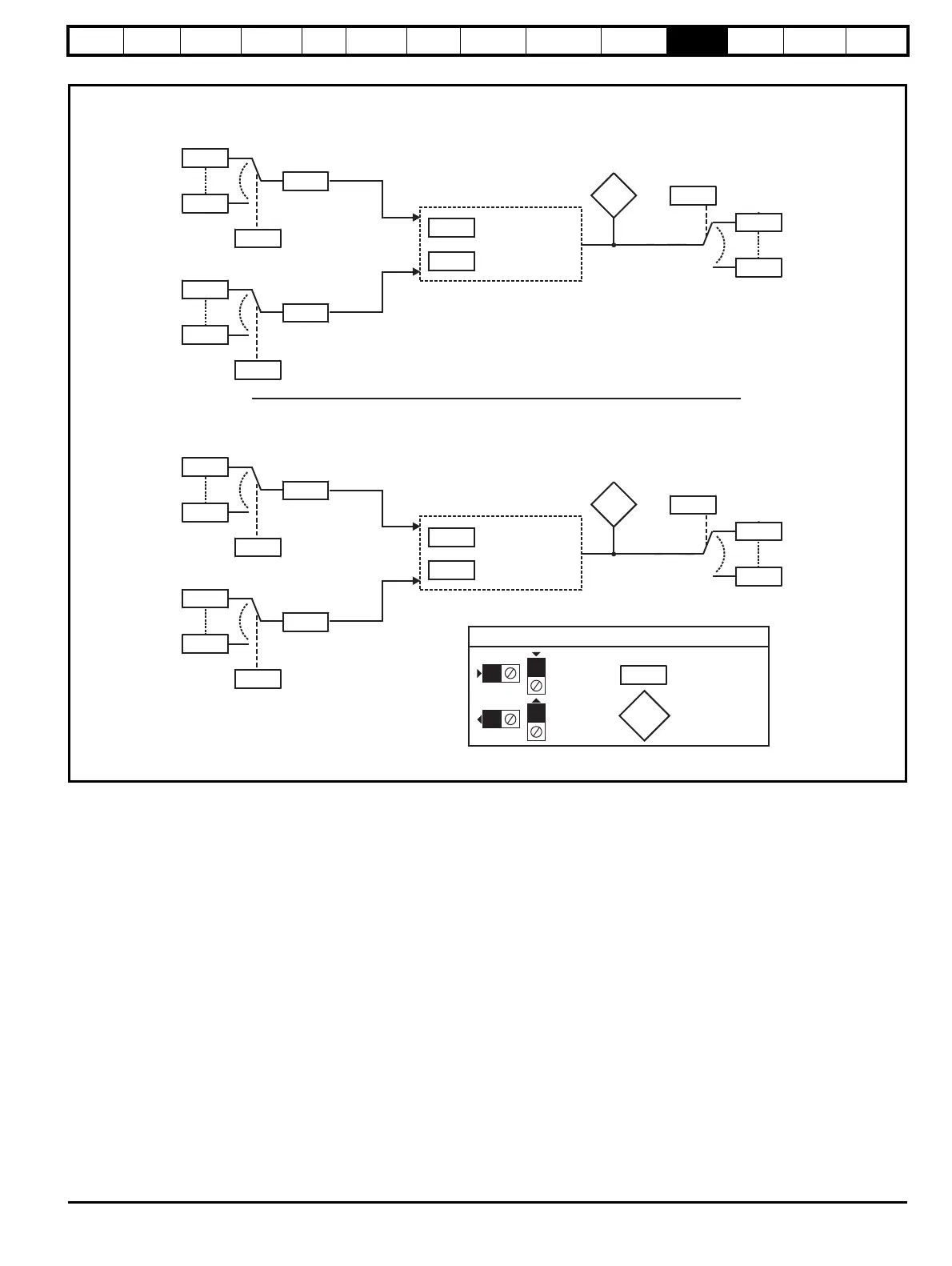

Figure 11-20 Menu 12 logic diagram (continued)
12.032
??.???
??.???
12.031
VariableSelector 2
VariableSelector 2
Mode
VariableSelector 2
Control
12.030
12.035
??.???
??.???
12.028
12.033
VariableSelector 2
Source 1
VariableSelector 2
Source 1
??.???
??.???
12.029
12.034
VariableSelector 2
Source 2
VariableSelector 2
Source 2 Scaling
Variable
Selector 2
Output
Variable
Selector 2
Destination
12.012
??.???
??.???
12.011
VariableSelector 1
VariableSelector 1
Mode
VariableSelector 1
Control
12.010
12.015
??.???
Any variable
parameter
??.???
12.008
12.013
VariableSelector 1
Source 1
VariableSelector 1
Input 1 Scaling
??.???
??.???
12.009
12.014
VariableSelector 1
Source 2
VariableSelector 1
Source 2 Scaling
Variable
Selector 1
Output
Variable
Selector 1
Destination
Any variable
parameter
Any variable
parameter
Any variable
parameter
Any
unprotected
variable
parameter
Any
unprotected
variable
parameter
mm.ppp
mm.ppp
Key
Read-write (RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
X
X
X
X
The parameters are all shown in their default settings
