56 HVAC Drive H300
Issue Number: 3

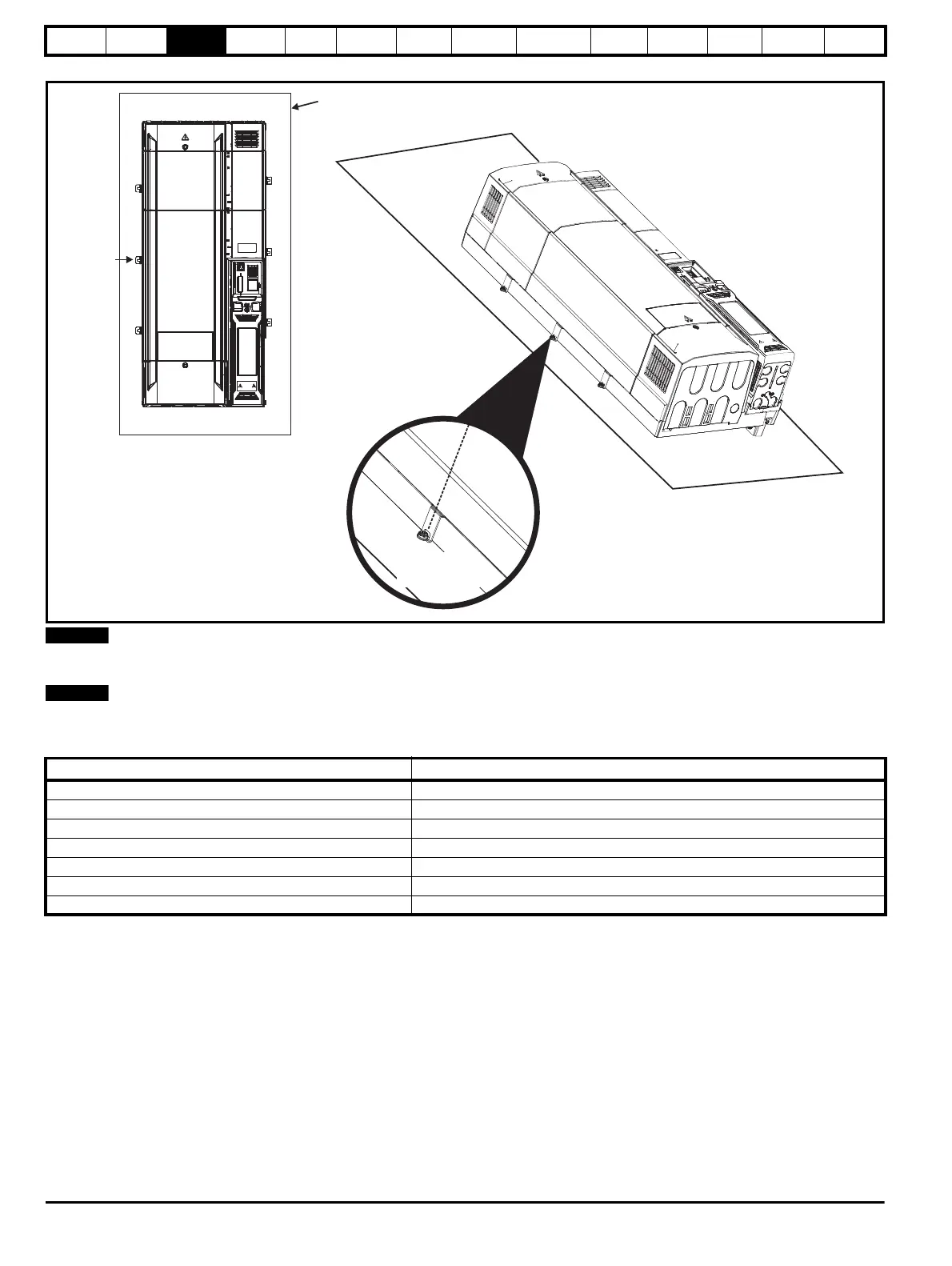

Figure 3-44 View showing sealing clamps provided in through hole mounting kit
For detailed information regarding IP55 (NEMA 12) Through Panel Mounting see Figure 3-30 Through panel mount detail for size 9A on page 44,
Figure 3-31 Through-panel mounting the size 9E and 10E on page 45 and Figure 3-32 Through panel mounting the size 11E on page 46.
When designing an IP65 or IP55 enclosure, consideration should be made to the dissipation from the front of the drive.
Table 3-8 Power losses from the front of the drive when through-panel mounted
Frame size Power loss
3 ≤ 50 W
4 ≤ 75 W
5 ≤ 100 W
6 ≤ 100 W
7 ≤ 204 W
8 ≤ 347 W
9A/9E/10E/11E ≤ 480 W
Enclosure
rear wall
Sealing
brackets
(6 places)
6xM5
screws with
sealing braclkets
NOTE
NOTE
