Nordson Encore Customer Product Manual

Parts
9-8
Part 1602966−05
E 2015 Nordson Corporation
Lance Port Plug Module

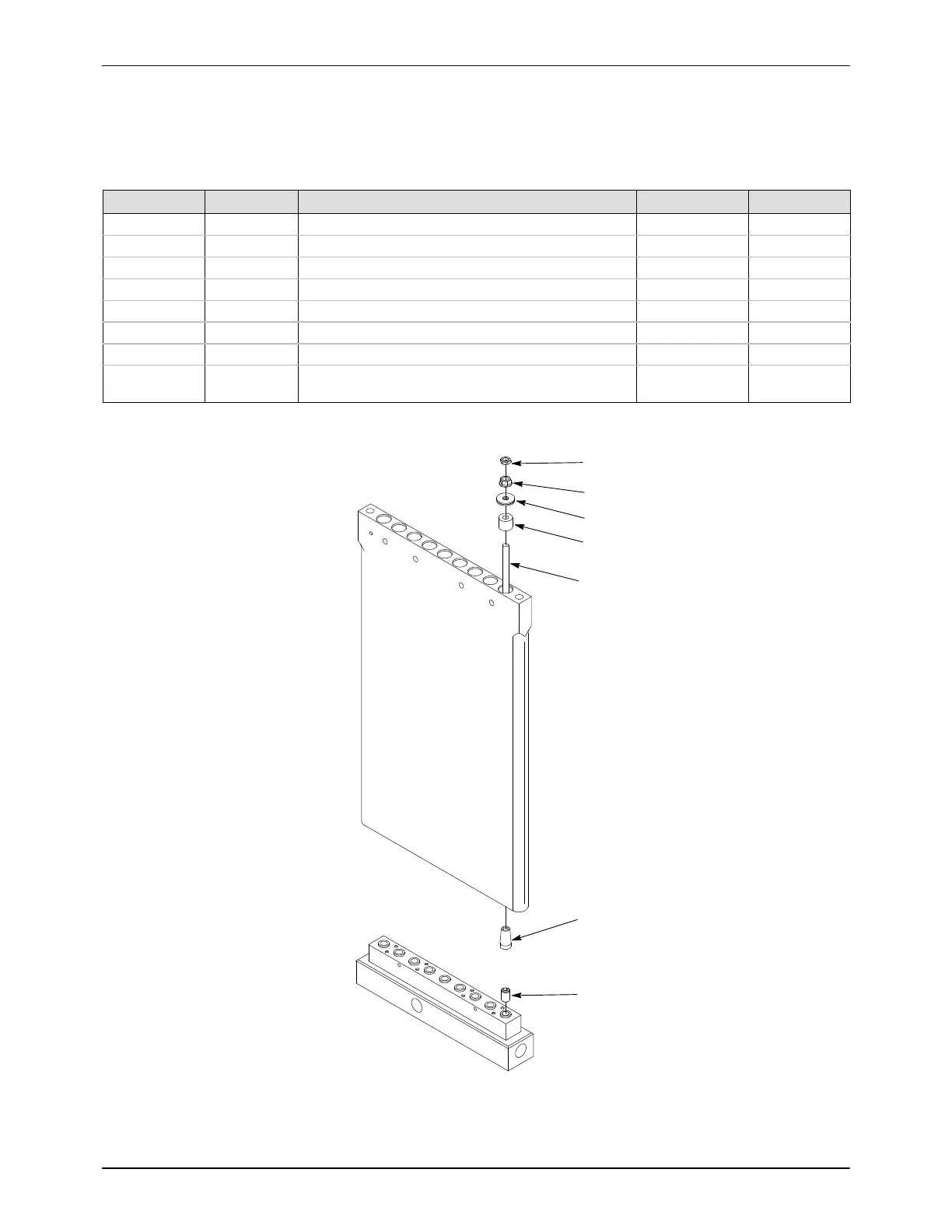

See Figure 9-5. Use this module to plug unused lance ports. The module
includes all the parts shown.
Item Part Description Quantity Note
− 1100097 Module, plug, lance assembly port 1
1 −−−−−−
S Nut, hex, acorn, M8
1
2 −−−−−−
S Nut, hex, M8, steel, zinc
1
3 −−−−−−
S Washer, sealing, lance plug, global PFC
1
4 −−−−−−
S Sleeve, lance plug, global PFC
1
5 −−−−−−
S Rod, threaded, lance plug, GPFC
6 −−−−−−
S Plug, lance, global PFC
1
7 −−−−−−
S Screw, set, cup point, M12 x 1.75, 12mm long,
stainless steel
1
1
2
3
4
5
6
7
Figure 9-5 Lance Port Plug Module Parts
