Parts
9-15
Part 1602966−05
E 2015 Nordson Corporation
Purge Valve Assembly − Two Lance Configuration
See Figure 9-10.
Item Part Description Quantity Note
1 −−−−−− Nipple, pipe, std, R.5, close 2
2 −−−−−− Elbow, push in, 0.5 RPT x 16 mm tube 2
3 972770 Tube fitting, conn., M, 37 degree, 3/4 T, 1/2 NPT 1
4 −−−−−− Tee, pipe, 1/2 BSPT, black 2
5 1100283 Valve, solenoid, air, 2 x 3, G.5 2
6 −−−−−− Bracket, purge valve 2
7 −−−−−− Screw, hex, serrated, M5 x 12, steel, zinc 4
8 −−−−−− Plug, pipe, socket, flush, R
1
/
2
1
9 1606921 Cable, valve, purge, 5 m 2
10 1102678 Silencer, air, 3/8 Rc 2
11 −−−−−− Nipple, pipe, std, R1/2 x 3 long 1
12 −−−−−− Screw, hex,serrated, M6 X 16, steel, zinc 2
13 −−−−−− Nut, hex, flanged, serrated, M6 2
5
6
8
10
3
2
11
2
6
1
4
9
1
4
5
7
10
12
13
12

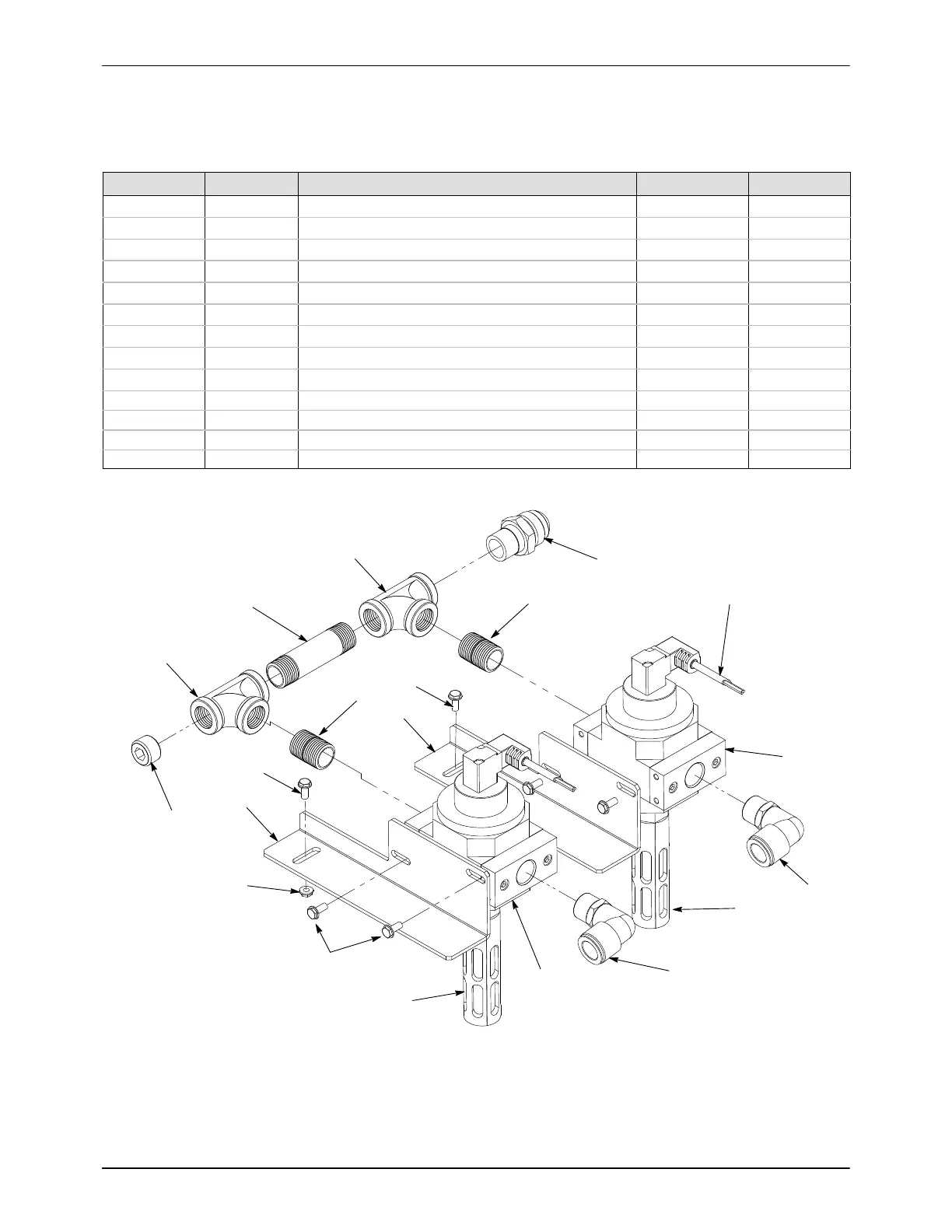

Figure 9-10 Purge Valve Assembly − Two Lance Configuration
