Parts
9-6
Part 160296605
E 2015 Nordson Corporation
Lance Assembly Parts
Basic Lance Parts
See Figure 9-3. For a complete lance assembly, order either a fluidizing or
non-fluidizing latch block module listed on the following pages.
Item Part Description Quantity Note
1099893 Lance assembly, global PFC 1
1 1099891
S Rod, pump retaining
1
2 −−−−−−
S Nut, hex, acorn, M8
4
3 −−−−−−
S Washer, lock, split, M8, steel, zinc
4
4 −−−−−−
S Washer, flat, regular, M8, steel, zinc
8
5 −−−−−−
S Screw, hex, cap, M8 x 1.24, 50, F.T
4
6 −−−−−−
S Washer, lock, external, M5, steel, zinc plate
2
7 −−−−−−
S Screw, hex, serrated, M5 x 12, steel, zinc
1
8 −−−−−−
S Screw, socket, M10 x 25 mm
4
9 −−−−−−
S Washer, lock, split, M8, steel, zinc
4
10 1095926 Pump assembly, corona, Encore Gen II, pkg AR A
NOTE A: Refer to pump manual for repair parts. Pumps must be ordered separately.
AR: As Required
2
3
4
1
4
5
6
7
8
9
10

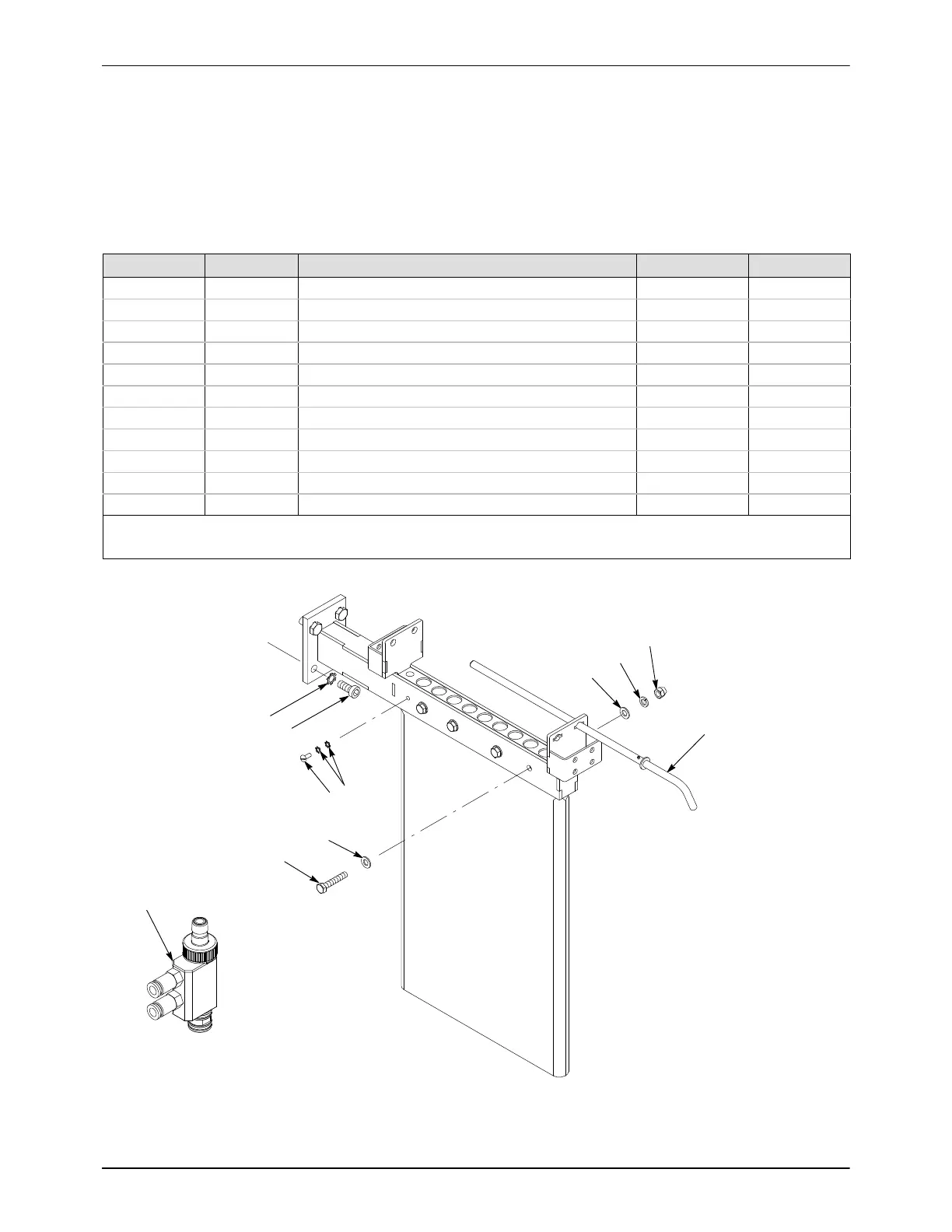

Figure 9-3 Basic Lance Assembly Parts
