Description
2-10
Part 1602966−05
E 2015 Nordson Corporation
Sieve
The vibratory sieve is mounted onto a bracket assembly (5).
The deck (3), screen (10), and screen gasket (11) are clamped to the pan
by two latches (6). Screens are available in different mesh (micron) sizes.
When the latches are released, the sieve pan can be rotated so that the
discharge chute (8) deposits the screened powder into the powder source,
or when purging, so the chute is pointing toward the exhaust duct intake.
For hard-to-screen powders, a Vibrasonic system with an ultrasonic screen
is available. Refer to Options for more information.
3
2
9
7
8
10
11
1
12
4
5
6

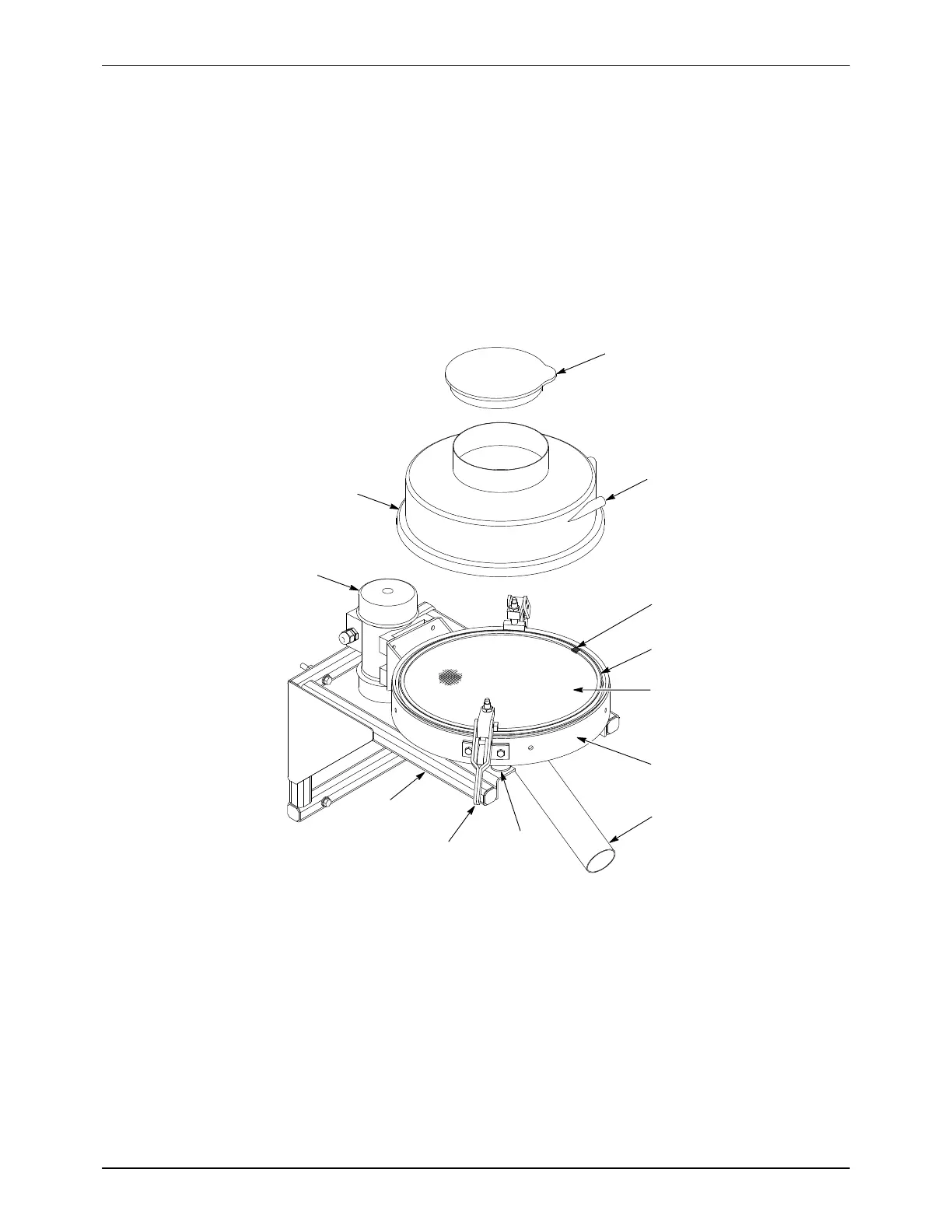

Figure 2-7 Sieve and Mounting Bracket Assembly (Standard Screen Shown)
1. Deck plug
2. Powder inlet stubs
3. Sieve deck
4. Vibrator motor
5. Mounting bracket assembly
6. Deck latches
7. Vibration isolators
8. Sieve pan discharge chute
9. Sieve ring
10. Sieve screen
11. Screen gasket
12. Ground clip
