Nordson Encore - Purge Valve Assembly − One Lance Configuration

Parts
9-14
Part 1602966−05
E 2015 Nordson Corporation
Purge Valve Assembly − One Lance Configuration
See Figure 9-9.
Item Part Description Quantity Note
1 −−−−−− Nipple, pipe, std, R.5, close 1
2 −−−−−− Elbow, push in, 0.5 RPT x 16 mm tube 1
3 972770 Tube fitting, conn., M, 37 degree, 3/4 T, 1/2 NPT 1
4 −−−−−− Tee, pipe, 1/2 BSPT, black 1
5 1100283 Valve, solenoid, air, 2 x 3, G.5 1
6 −−−−−− Bracket, purge valve 1
7 −−−−−− Screw, hex, serrated, M5 x 12, steel, zinc 2
8 −−−−−− Plug, pipe, socket, flush, R
1
/
2
1
9 1606921 Cable, valve, purge, 5 m 1
10 1102678 Silencer, air, 3/8 Rc 1
11 −−−−−− Screw, hex,serrated, M6 X 16, steel, zinc 1
12 −−−−−− Nut, hex, flanged, serrated, M6 1
5
9
10
3
2
8
7
1
4
6
11
12

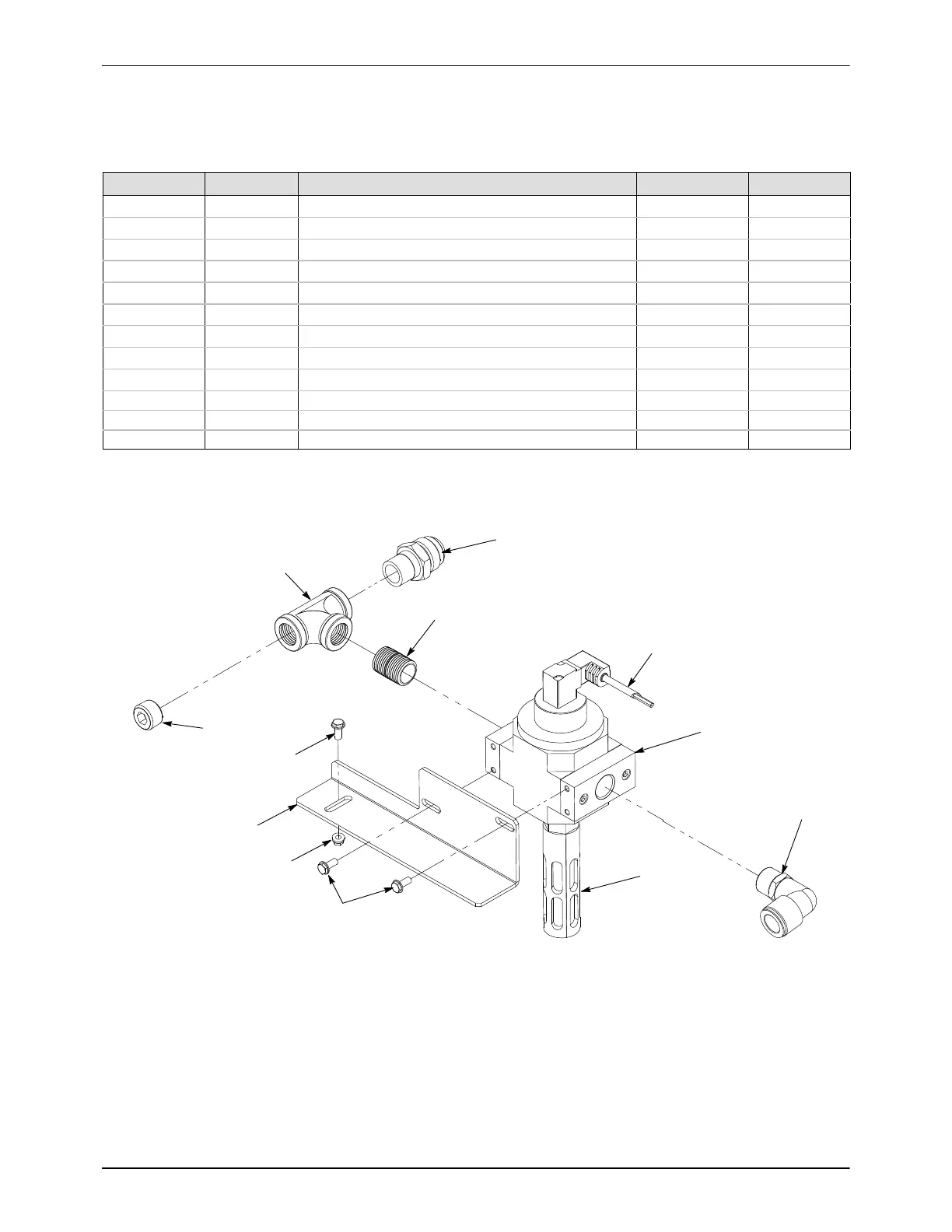

Figure 9-9 Purge Valve Assembly − One Lance Configuration
