Parts
9-17
Part 1602966−05
E 2015 Nordson Corporation
Purge Valve Module Parts
See Figure 9-12.
Item Part Description Quantity Note
1 1604501 Union, bulk, KQ2E16−00 16 mm tube 3
2 −−−−−− Grip, cord, 2X, 2.5−3 mm, 3/8 in. NPT, Nylon AR
3 −−−−−− Grip, cord, 2X, 5−6 mm, 1/2 in. NPT, Nylon AR
4 −−−−−− Elbow, plug in, 16 mm T x 16 mm T 3
AR: As Required
1
2
3
Refer to Purge Valve
Assemblies
starting on Pg 9-14
Refer to Purge Manifold
Assembly − Pg 9-12
6-mm
16-mm
4
To Control
Manifold
3-mm
To Control
Panel
Cylinder Actuation Air
Cylinder Proximity Switch Signals

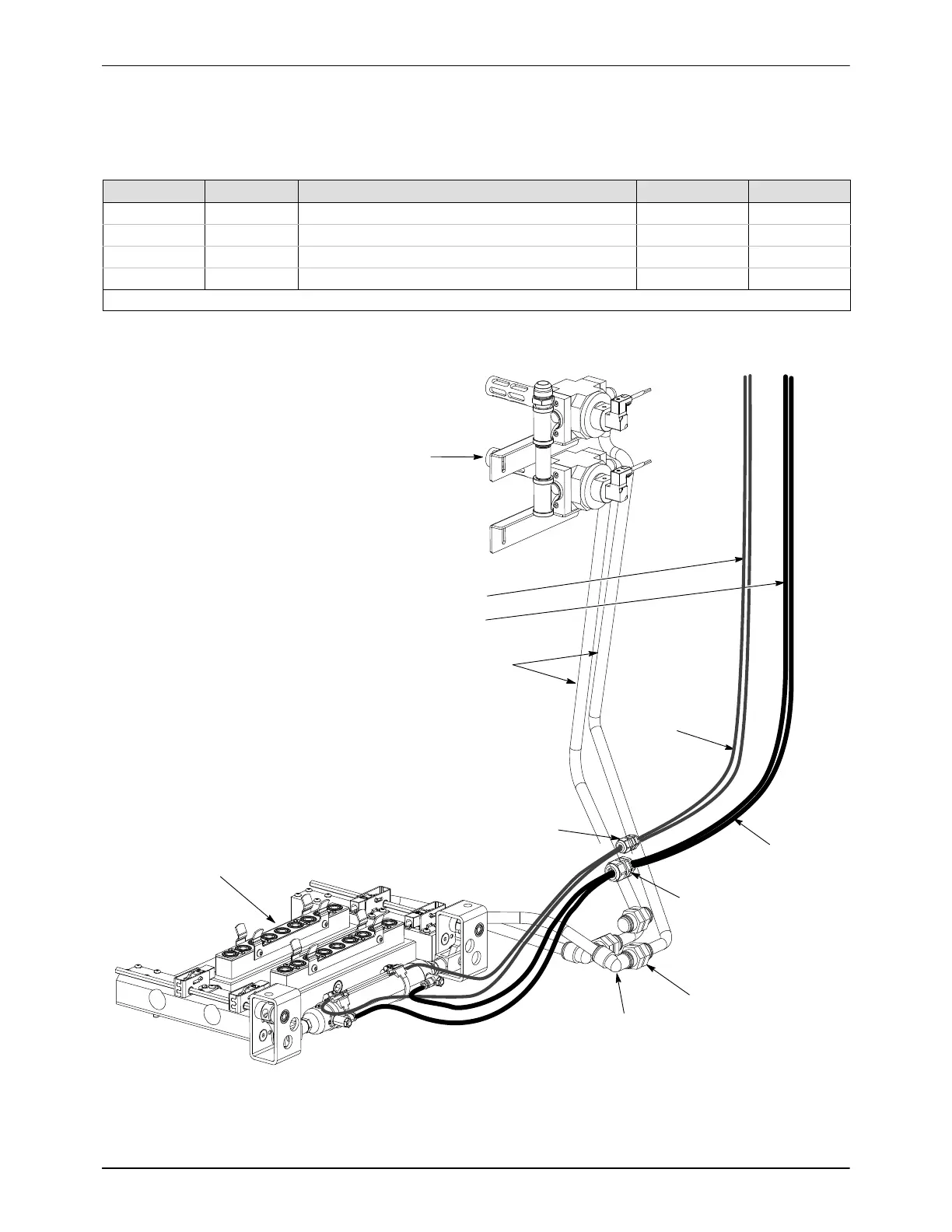

Figure 9-12 Purge Valve Module Parts
To Next Page
