Nordson Encore Customer Product Manual

Parts
9-23
Part 1602966−05
E 2015 Nordson Corporation
Sieve and Mounting Parts
Replacement Parts for Non-CE/ATEX Sieve 1
See Figure 9-16 for Sieve 1 latch style. See Figure 9-18 for parts.
Screens
Item Part Description Note
1 1603634 Screen, sieve, vibratory, 15 in., 20 mesh (841 microns)
1 1604110 Screen, sieve, vibratory, 15 in., 30 mesh (595 microns)
1 1603635 Screen, sieve, vibratory, 15 in., 40 mesh (400 microns)
1 1603636 Screen, sieve, vibratory, 15 in., 60 mesh (250 microns)
Vibrator Motors
Item Part Description Note
2 1603628 Vibrator, sieve, 230/460V, 60 Hz, 3 phase
2 1603629 Vibrator, sieve, 330/575V, 60 Hz, 3 phase
2 1603630 Vibrator, sieve, 220/380/415V, 50 Hz, 3 phase
2 1603631 Vibrator, sieve, 220/380V, 60 Hz, 3 phase
2 1603632 Vibrator, sieve, 200/346V, 50 Hz, 3 phase
Miscellaneous Parts
Item Part Description Quantity Note
3 1603633 Gasket, screen, sieve, 15 in. 1 A
4 1603637 Latch, sieve, toggle 2
5 1017602 Mount, isolation, sieve 4
6 1104897 Cap, vinyl, 3/4−13/16, black AR
7 1070199 Plug, hopper fill, NHR 1
8 −−−−−− Clip, ground, sieve screen 0 B
NOTE A: The screen gasket is made from a conductive material. DO NOT replace it with a non-conductive gasket.
B: Ground clip is required only for systems using Sieve 2.
AR: As Required

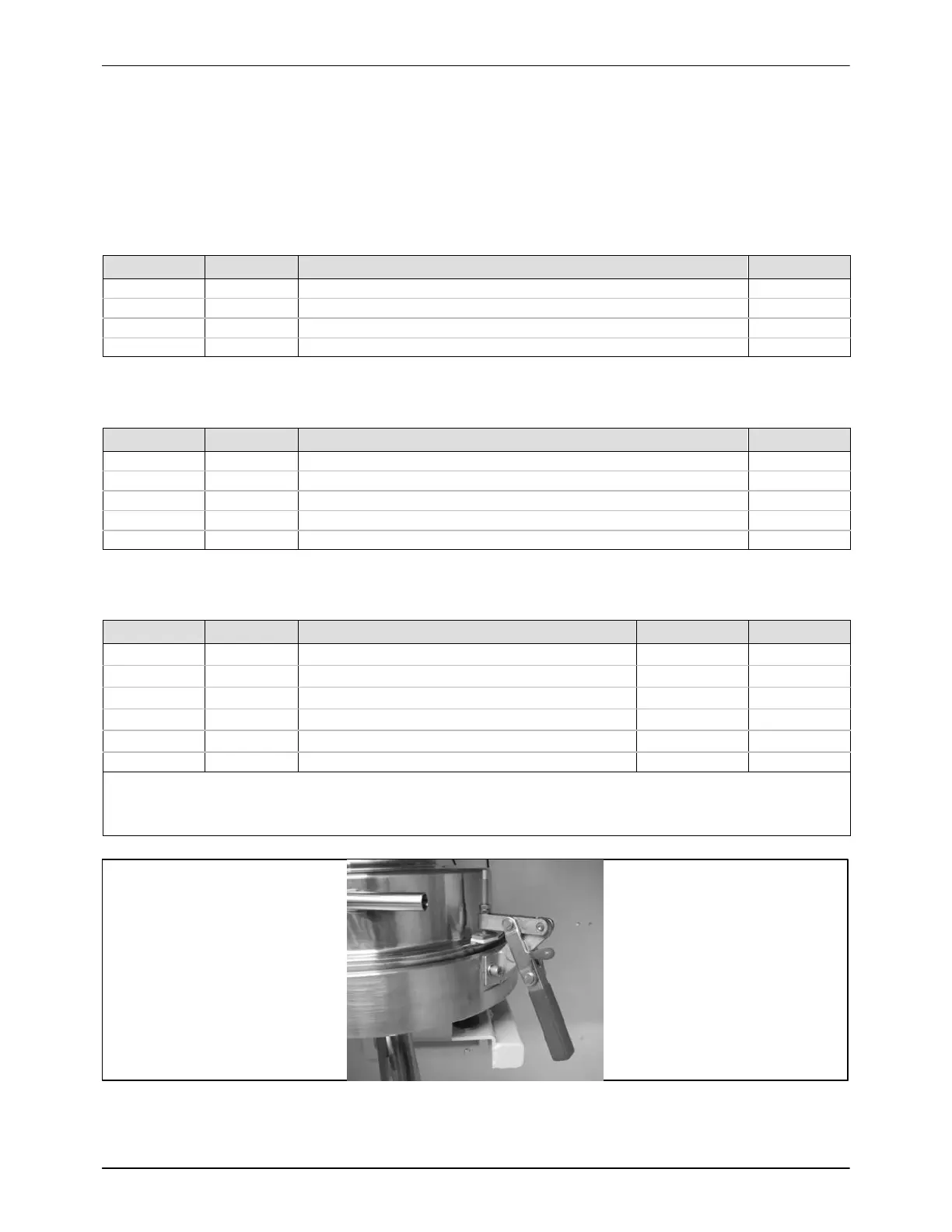

Figure 9-16 Latch, Sieve 1
