Description
2-12
Part 160296605
E 2015 Nordson Corporation
Control Manifold Functions
The control manifold controls most of the pneumatic equipment in the feed
center. It is connected to the feed center control panel by a single cable.
1
23456789
CABLE RECEPTACLE
Extend
Retract
Retract
Closed
Open
AIR IN
AIR IN
MUFFLERS
(EXHAUST AIR)

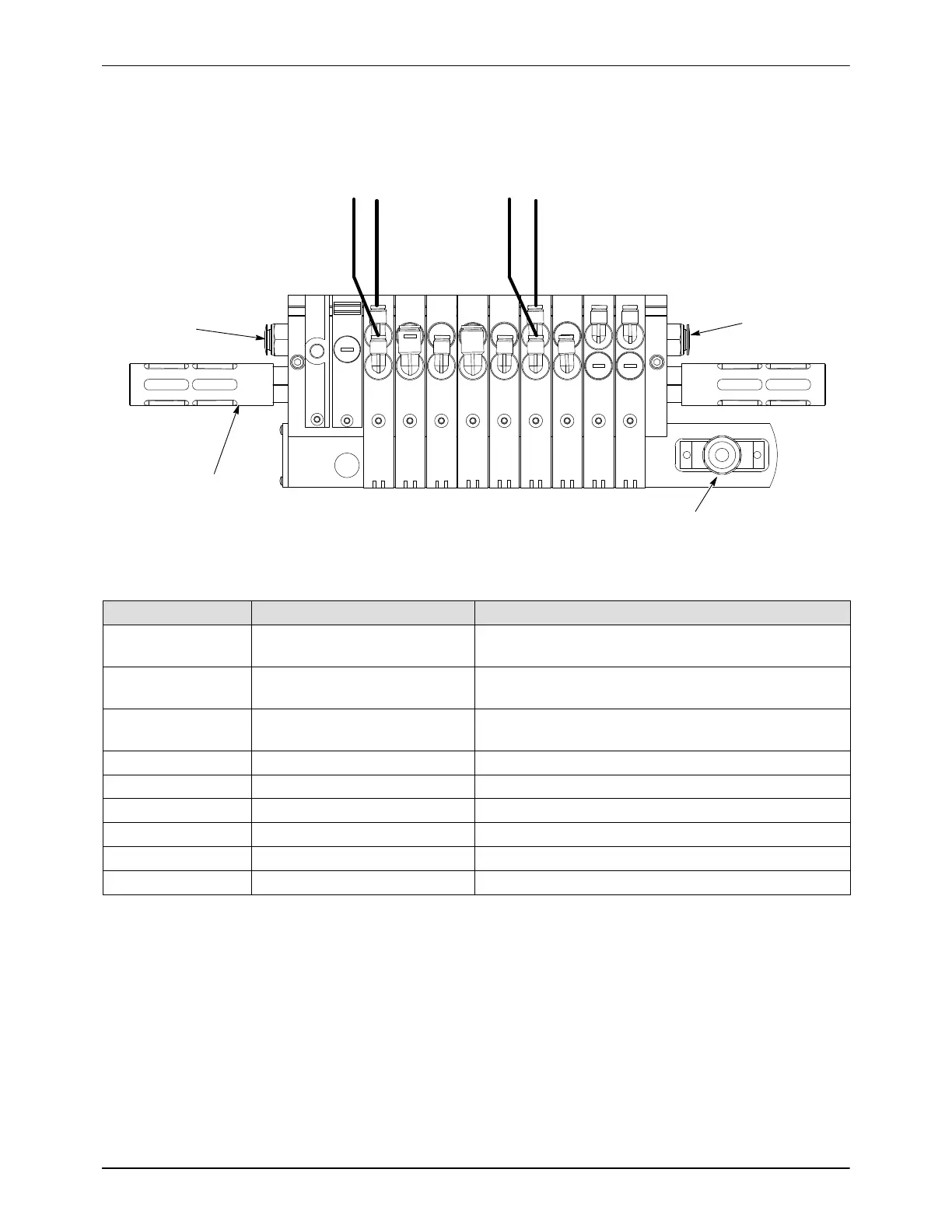

Figure 2-9 Control Manifold Functions
Valve No. Solenoid Designation Function
1 SOL 325/0 Lance Up (vented when energized, allowing Lance
Up)
2 SOL 325/1 Lance Down (vented when energized, allowing
Lance Down)
3 SOL 326 Lance Lock (energized to unlock cylinder, vented to
lock cylinder)
4 SOL 331 Purge Clamp (extend/retract)
5 SOL 342 HDLV Virgin Pump Purge
6 SOL 338 HDLV Virgin Pump On
7 SOL 340 HDLV Reclaim Pump Purge
8 SOL 336 HDLV Reclaim Pump On
9 SOL 329 Damper (open/closed)
