Repair
8-18
Part 1602966−05
E 2015 Nordson Corporation
60Hz Motor Weight Adjustment (contd)
Step 5 Step 5 − 6
Step 7
Step 7 − 8
FLAT AREA
FLAT AREAS ALIGNED

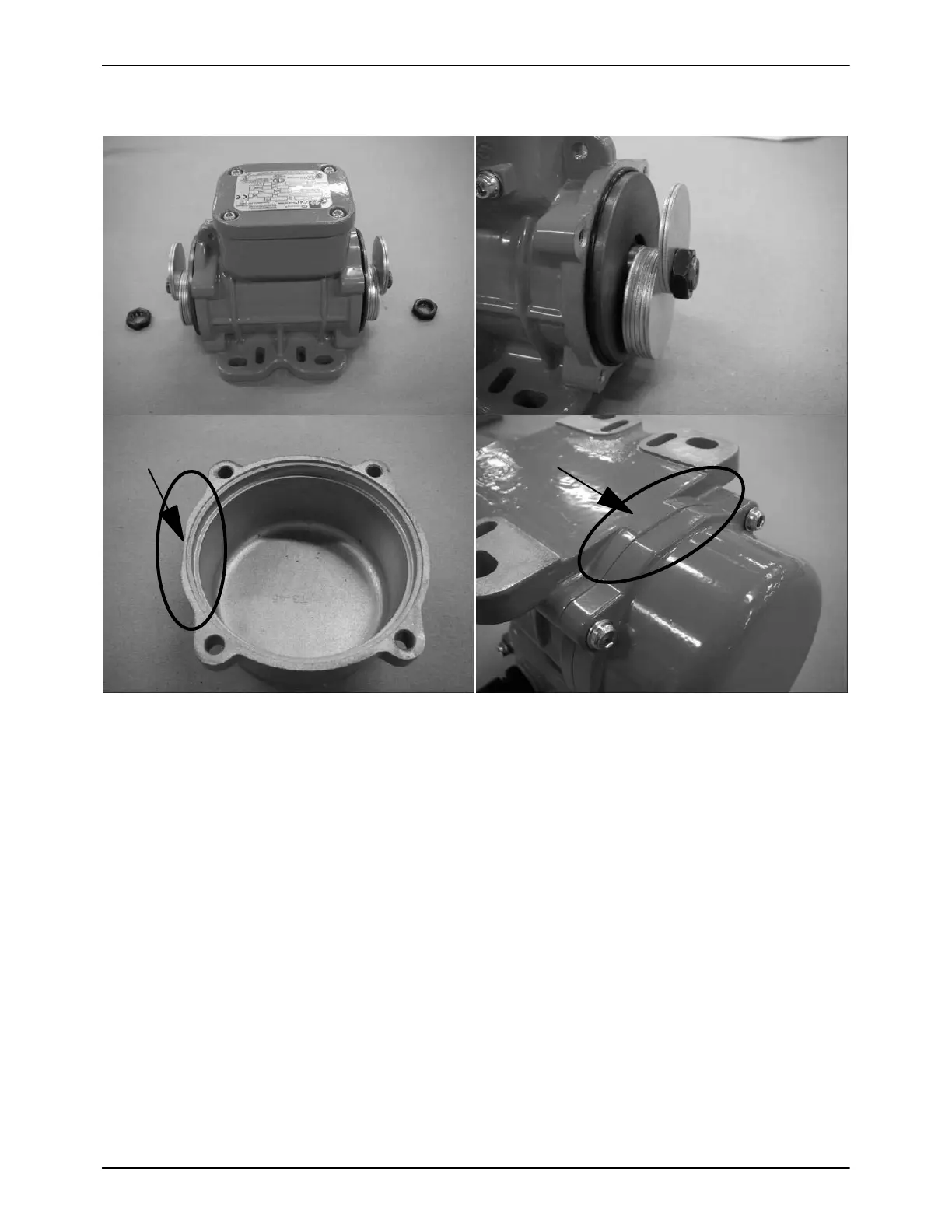

Figure 8-14 Vibrator Weight Adjustment, 60Hz, Steps 5−8
50Hz Motor Weight Adjustment
See Figure 8-15 for steps 1 - 4 when replacing or retrofitting a 50Hz
vibratory table motor for the Encore Powder Feed Center.
FC 75% = 1 blade turned
50Hz = 145.5 lb. FC X 75% = 109.125 lb. FC
1. Remove the caps from both ends of the motor.
2. Place wrenches on the nuts located on both ends of the motor shaft.
3. Unscrew one nut and remove the weight blades from that end of the
shaft. The opposite nut will remain tight.
NOTE: 50Hz motors come with all of the weight blades rotated in the same
direction.
4. Place an adjustable wrench on the shaft flat. Make sure that the wrench
does not grip the threaded area of the shaft. Use another wrench to
unscrew the remaining nut. Remove the weight blades from the end of
the shaft.
