Parts
9-9
Part 160296605
E 2015 Nordson Corporation
Level Sensor Module
See Figure 9-6. Use this module for the lance-mounted level sensor used
in North America and Asia.
Item Part Description Quantity Note
1100078 Module, level sensor, North America and Asia 1
1 1014553
S Sensor, level, quick disconnect, M12
1
2 1023925
S Cable, 4 pin, M12 connector, 5 meters long
1
3 −−−−−−
S Screw, socket, M5 x 16, zinc
2
4 −−−−−−
S Nut, lock, M5
2
5 −−−−−−
S Bracket, level sensor
1
6 1100076
S Support, 16 mm shaft, clamping
1
1
2
3
4
Use existing
fasteners
5
6

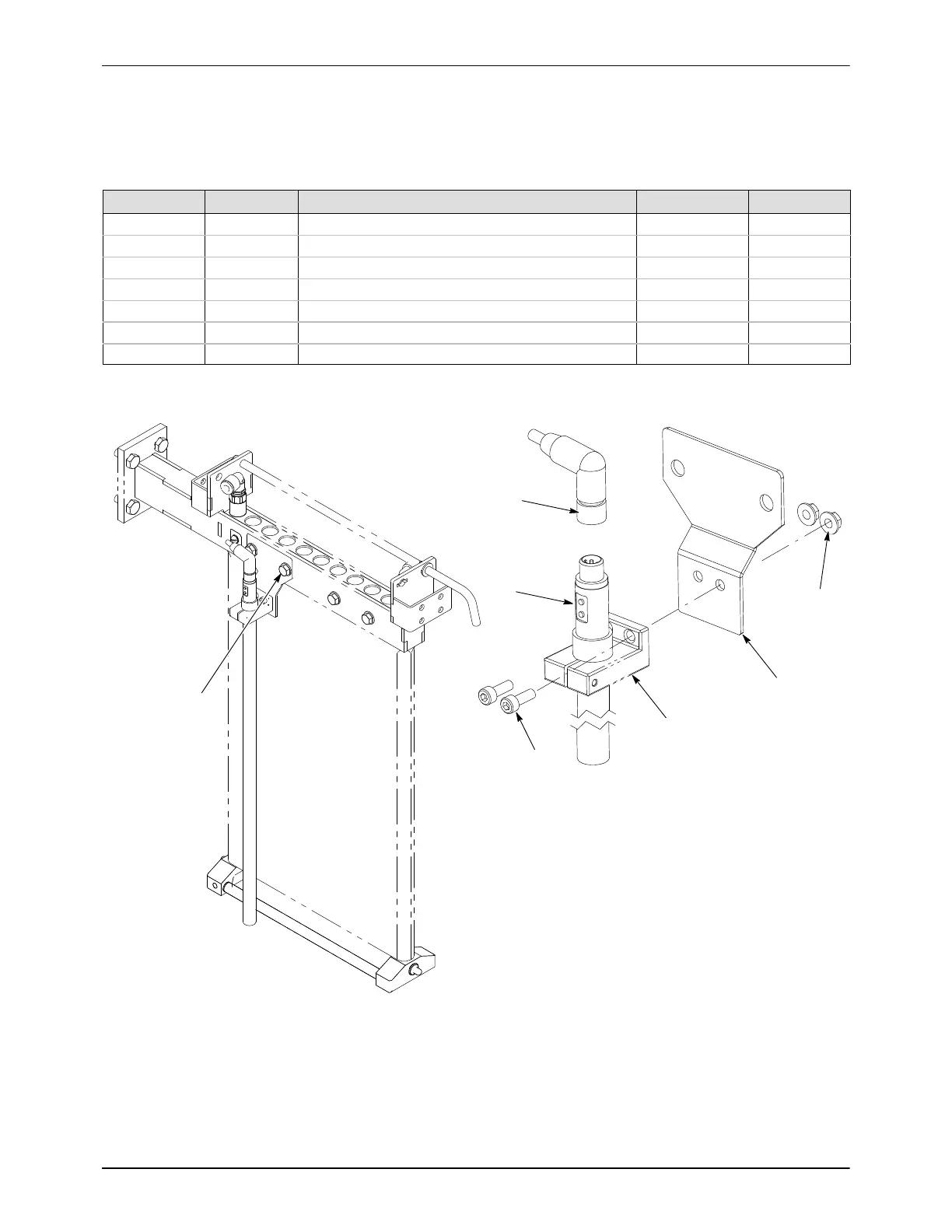

Figure 9-6 Level Sensor Module Parts
